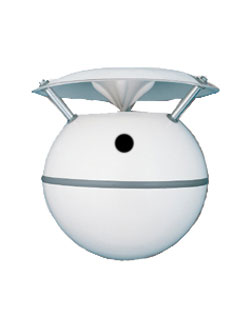

Soundsphere Loudspeakers Q-8
Foreground and Background Spherical Ceiling Speaker, White finish

OUR PART #:  Q-8

The Model Q-8 is more robust than the compact Soundsphere loudspeaker models, offering greater sensitivity and power-handling capability.
Learn More

The Model Q-8 is more robust than the compact Soundsphere loudspeaker models, offering greater sensitivity and power-handling capability. The Q-8 is designed to provide clear voice announcements and high-fidelity foreground and background music for applications such as restaurants, courtrooms, churches, shopping centers and airports.

The Q-8 offers Soundsphere's trademark hemispherical coverage pattern and is distinguished by its high sensitivity (94dB 1W/1m) and high power handling capability (100 watts RMS). The Q-8 is available for either surface or hanging mounts, in both standard and custom colors.

Specifications:

  • Sensitivity 94dB SPL: 1 Watt/1 meter
  • Maximum SPL 114dB 100 Watts/1 meter
  • Power Handling 100 Watts RMS
  • Frequency Response 55Hz to 17kHz ±6dB

Coverage

  • 180° vertical
  • 360° horizontal

Rated Impedance

  • 8 ohms

Weight

  • 22.5 lbs. (10.2 kg)

Size

  • Height: 19" (483mm)
  • Sphere Diameter: 16" (406mm)
  • Reflector Diameter: 20" (508mm)

Driver Coaxial:

  • 8" LF
  • 1" dome HF

Material

  • Enclosure and reflector are fiberglass with gelcoat finish; rust resistant hardware
Soundsphere Loudspeakers HK Hanging Kit
Soundsphere Loudspeakers HK Hanging Kit
The HK hanging kit includes a three-way cable for single point suspension. For the Soundsphere 110B, Q-6, and Q-8.  Speaker not included
Call for price! Not available online.

Soundsphere Loudspeakers TX100 Transformer
Soundsphere Loudspeakers TX100 Transformer
100-Watt transformer with multiple power taps for the Q-8.
Call for price! Not available online.

Soundsphere Loudspeakers MBM Mounting Bracket Q-8
Soundsphere Loudspeakers MBM Mounting Bracket Q-8
The MBM mounting bracket is for mounting to flat surfaces. For the Soundsphere Q-8.
Call for price! Not available online.

Soundsphere Loudspeakers BCM Universal Beam Clamp
Soundsphere Loudspeakers BCM Universal Beam Clamp
Universal beam clamp with safety strap. Ideal for Q-8 and Q-LB loudspeakers.
Call for price! Not available online.

Soundsphere Loudspeakers HK-EXT 24" Hanging Kit Extension
Soundsphere Loudspeakers HK-EXT 24" Hanging Kit Extension
24" extension for use with Soundsphere's HK hanging kit.
Call for price! Not available online.
