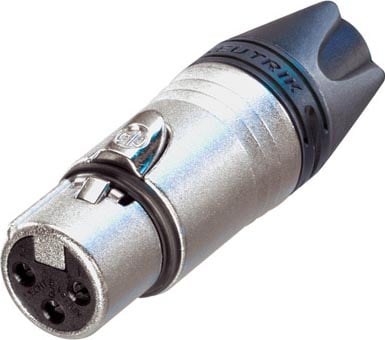

Neutrik NC3FXX-14-D 3-pin XLRF Connector for Large Diameter Cable, 100ct Box

Special version of the XLR cable connector XX Series for large cable diameters. Incorporates all features of the XX Series. 3-pole female cable connector for max. 9.6mm cable O.D. with Nickel housing and silver contacts.

Features:

• Unique cage design of female contact for low contact resistance and high integrity
• Female contact incorporates a solder barrier to prevent solder running into the contact mating area
• Female connector with improved solid metal latch which is larger and easier to handle
• Additional ground spring contacts for better shell ground continuity
• Improved chuck type strain relief provides higher pull-out force and makes assembly easier and faster
• Boot with polyurethane gland gives high protection to cable bending stresses
• Colored rings and boots available for coding or identification
• Rugged zinc diecast shell

Specifications:

• Connector Type: XLR
• Gender: female
• Capacitance between contacts: < /= 4 pF
• Contact resistance: < /=3 mOhm
• Dielectric strength: 1.5 kVdc
• Insulation resistance: > 2 GOhm (initial)
• Insulation resistance: > 1 GOhm (after damp heat test)
• Rated current per contact: 16 A
• Rated voltage: 50 V
• Cable O.D.: max. 9.6 mm
• Insertion force: < /= 20 N
• Withdrawal force: < /= 20 N
• Lifetime: > 1000 mating cycles
• Wire size max.: 2.5 mm²
• Wire size max.: 14 AWG
• Wiring: Solder contacts
• Locking device: Latch lock
• Boot: Polyuretan
• Bushing: Polyamide (PA 6 15% GR)
• Contact plating: 2 µm Ag
• Contacts: Bronze (CuSn8) female
• Insert: Polyamide (PA 6.6 30 % GR)
• Locking element: Zinc diecast (ZnAl4Cu1) / Ck 67 (spring)
• Shell: Zinc diecast (ZnAl4Cu1)
• Shell plating: Nickel
• Strain relief: Polyacetal (POM)
• Flammability: UL 94 HB
• Standard compliance: IEC 61076-2-103
• Protection class: IP 40
• Solderability: Complies with IEC 68-2-20
• Temperature range: -30 °C to +80 °C
