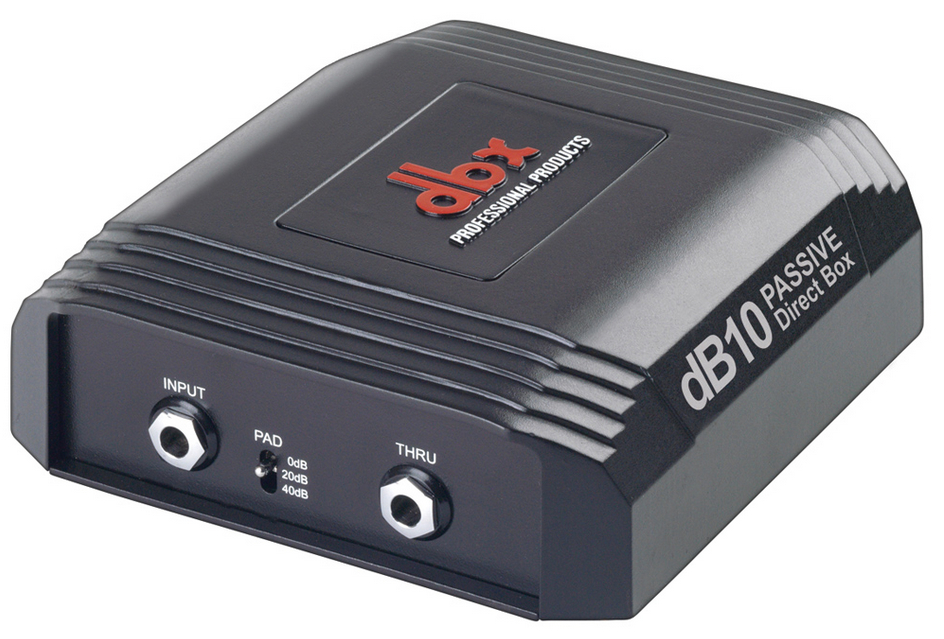

DBX DB10
Passive Direct Box

OUR PART #:  DB10

Utilizing custom dbx mu-metal-shielded audio transformers, high-quality Neutrik® connectors...
Learn More
Our Price: $79.95
List Price: $99.00
You save 19%!
Write the first review.

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

DBX DB10
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

Utilizing custom dbx mu-metal-shielded audio transformers, high-quality Neutrik® connectors, and low-noise circuitry preserves the sonic integrity and true characteristics of the signal source. Both boxes include a pad switch that accomodates instrument, line and even speaker level signals. Take even more control of your sound by utilizing the polarity invert switch to set the phase relationship between the direct and mic'd sound.

As a professional, you don’t have time for interference, so we’ve included a ground lift switch to solve potential hum and buzz problems due to ground loops. And between the combined shielding of the cast metal chassis and the custom-wound transformer, you can be doubly assured of a clean signal free from interference. All of this sits atop a solid, stable footprint, that will keep the box from being dragged around the stage, and the unique contoured underside allows secure stacking of multiple units.

DBX db10 Features:

  • Premium Performance
  • Rugged Design
  • Stackable Chassis with Durable Rubber Foot
  • Gold-plated Neutrik® XLR Connector
  • Premium Chrome Toggle Switches
  • Hi-Z 1/4" Input Jack
  • Parallel 1/4" Thru Jack
  • Transformer Isolated
  • Premium Shielded Custom dbx Transformer
  • Balanced XLR Lo-Z Output
  • 3-Way 0/20/40 dB Pad Switch
  • Flat/High-Cut Filter Switch
  • Output Polarity Invert Switch
  • Ground Lift Switch
  • 4 Year Warranty!

DBX db10 Specifications:

  • Input Section
    • Input: 1 instrument/line/speaker level
    • Connector: 1/4" jack
    • Type: Unbalanced, RF filtered
    • Impedance: 150k Ohm typical
    • Max Input Level:
      • +20dBu (0dB pad)
      • +40dBu (20dB pad)
      • +60dBu (40dBpad)
  • Output Section
    • Thru Output: 1 parallel connection from input jack
    • Connector: 1/4" jack
    • Type: Unbalanced, RF filtered
    • Main Output: 1 line level
    • Connector: XLR male jack
    • Type: Balanced
    • Impedance: 150 Ohm typical
    • Max Output Level: 0dBu
  • Performance
    • Transformer: Custom dbx mu-metal-shielded
    • Frequency Response: 20Hz to 20kHz, +/-2.5dB
    • Noise: <-105dB unweighted, 22kHz BW
    • THD: <0.01%, 20Hz to 20kHz BW
      <0.005%, 1kHz
  • General
    • Dimensions (LxWxH): 5.82" x 5.44" x 2.20" (148 x 138 x56mm)
    • Weight: 1.4 lbs (0.65 kg)
