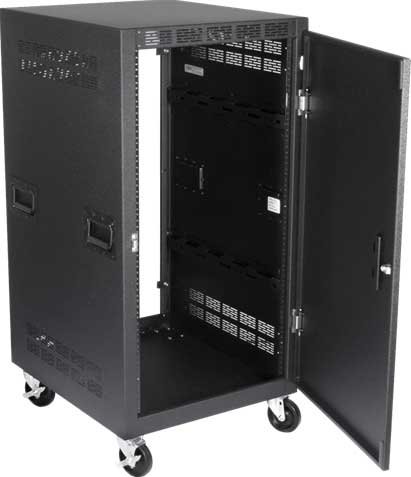

Atlas Sound RX21-25SFD
21 Space Vertical Rack with Solid Front Door

OUR PART #:  RX21-25SFD

Atlas Sound's RX21-25SFD mobile cabinet is ruggedly constructed of 16-ga. CRS and include heavy-duty casters.
Learn More

Call for info!

Similar Products

Atlas Sound's RX21-25SFD mobile cabinet is ruggedly constructed of 16-ga. CRS and include heavy-duty casters. Equipped with a front pair of 11-gauge CRS adjustable mounting rails tapped 10-32 on standard E.I.A. 5/8"-5/8"-1/2" spacing.

Optional RR21 rear mounting rails are available for additional support. Front-to-Rear mounting rail supports have slotted cutouts to easily adjust rail depth and to provide open raceways for containing vertically run wire and cable.

The RX21-25SFD features the additional benefit of having the supports positioned 19" apart to accept standard panel width accessories mounted in vertical orientation. Cabinet is 25 1/2" deep and has a vertical panel space height of 36 7/8". It features one pair of recessed, hinged, and rubber-padded steel grips on each side (four total) for transport convenience.

Easy wiring accerss is provided through three wire isolation holes (two, 1 1/2" dia., and one oblong 1-1/2" x 3") in the rear base flange.

The unit's four, oversized, heavy-duty casters, two of which are locking, ensure smooth mobility, and have a load capacity of 175 lbs each - 700 lbs total weight capacity.

Also include vented and removable locking doors, as well as vented top-front and top-rear flanges. Surface mounting front door is 1" deep to provide clearance for equipment knobs and handles which protrude up to 1 1/2" from the front of the rail. Cabinet is finished in #962 black epoxy.

Atlas Sound RX21-25SFD Features and Specifications

  • 16-ga. CRS Frame Manufactured to E.I.A. Standards
  • Four, 4" heavy-duty casters (175 lbs cap/ea)
  • Includes 1 pair adjustable, 11-ga Front-to-RearMounting Rails
  • Mounting rail supports with slotted cut-outs forvertical wire management
  • Perforated front and rear top flanges, sides and reardoor provide ventilation and dissipation of equipment-generated heat
  • Removable front and rear doors (right or left-handhinging) are identically keyed for security and convenience
  • RR21 optional rear mounting rails available
  • Rubber-padded steel grip "road handles" (2 per side)
  • Standard rack includes base, top panel, side panels,casters, front and rear doors
  • Three wire isolation holes located on Bottom of rearpanel for external wire access
  • Welded frame for long-lasting durability
  • Dimensions: 45-3/4" H x 22-5/16" W x 25-1/2" D
  • Shipping Weight: 121 lbs
  • Rack Spaces: 21
  • Usable Depth: 24"
