Radio Design Labs HR-DSX4
4x1 Digital Audio Selector, S/PDIF

OUR PART #:  HRDSX4

Radio Design Labs' HR-DSX4 is a great choice in installations requiring high quality source selection between digital audio signals.
Learn More
Our Price: $677.00
List Price: $905.61
You save 25%!
Write the first review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

Radio Design Labs HR-DSX4
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

Radio Design Labs' HR-DSX4 is a great choice in installations requiring high quality source selection between digital audio signals. Solid-state switching is used to select one of four inputs. Each input may be fed through one of three jacks: S/PDIF optical, S/PDIF (or AES-3ID) coaxial or AES/EBU. The output is switch-selectable to provide an AES/EBU, S/PDIF coaxial, S/PDIF optical or AES-3ID output. The switch enables the appropriate output jack and any required electrical and data format conversion. The AES/EBU inputs and output are 110 O terminated; the S/PDIF coaxial and AES-3ID signals connect through 75 O terminated phono jacks. RDL’s proprietary Sure-Lok™ auto recovery supervision monitors possible causes of latch-up and reinitiates signal lock to provide highly stable operation in the variety of conditions encountered in professional environments.

NOTE: Radio Design Labs' PS-24AS power supply is NOT included but is required in order to power this product.  Please see the "Accessories" tab or click here for more information on the PS-24AS power supply.

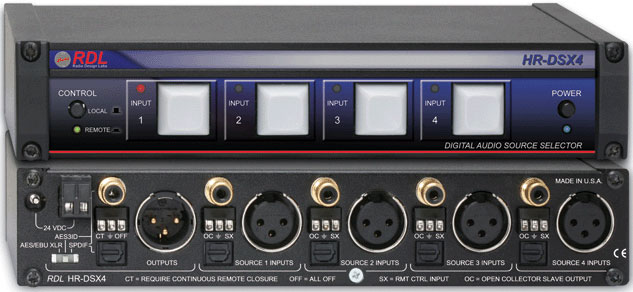

The front panel features four high-reliability, keyboard-style source selection pushbuttons with corresponding LEDs. Upon selecting a source, the LED lights if a valid input is present; otherwise it flashes. If the button for a selected source is pushed again, all inputs are turned off. A front-panel LOCAL/REMOTE switch enables either the front-panel buttons or the rear-panel remote control terminals provided on detachable terminal blocks. In the REMOTE mode, inputs are selected by an external switch or open-collector closure to ground, which may be momentary or continuous. When a source is selected, the HR-DSX4 provides a 50 mA open-collector output to control other equipment or modules. The HR-DSX4 is powered from 24 Vdc, which may be connected through the detachable terminal block or through the dc power jack. A front-panel power switch is provided.

Features:

  • 4 x 1 Digital Audio Selection with Signal Reclocking
  • Each Input: AES/EBU, Coaxial or Optical S/PDIF
  • Output: AES/EBU, Coaxial or Optical S/PDIF
  • Format Conversion for Selected Output Format
  • Operation Up to 24 bits, 192 kHz
  • Exclusive Sure-Lok Auto-Recovery Sentinel
  • Transformer Isolated AES/EBU Inputs and Output
  • Local or Remote Controlled Switching
  • Open-Collector Output for Selected Input
  • Input LED Flashes if Valid Input is Not Connected
