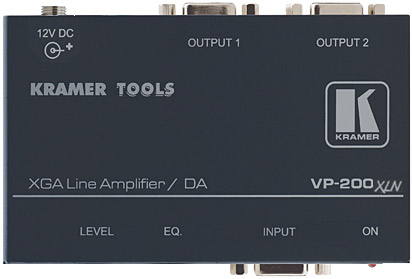

Kramer VP-200xln
1:2 Computer Graphics Video Line & Distribution Amplifier

OUR PART #:  VP200XLN

The VP-200xln is a high performance line and distribution amplifier for computer graphics video signals with resolutions ranging from VGA through UXGA and higher.
Learn More
Our Price: $180.00
List Price: $225.00
You save 20%!
Write the first review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

Kramer VP-200xln
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

The VP-200xln is a high performance line and distribution amplifier for computer graphics video signals with resolutions ranging from VGA through UXGA and higher. It provides controls to compensate for signal losses inherent in long cable runs.

Features:

  • High Bandwidth - 400 MHz (-3db)
  • HDTV Compatible
  • Level (Gain) and EQ (Peaking) Controls
  • ID Bit Control
  • AC/DC Coupling Selection - Individually for R, G, & B signals
  • Compact Size - Part of the Kramer TOOLS™ family of compact, high qualityand cost effective solutions

Specifications:

  • Input: 1 XGA on an HD15F connector
  • Outputs: 2 XGA on HD15F connectors
  • Max. Output Level: 2Vpp
  • Bandwidth (-3dB): 400MHz
  • Diff. Gain: 0.05%
  • Diff. Phase: 0.03°
  • K-Factor: <0.05%
  • S/N Ratio: 71dB
  • Controls: Level: –1.5dB to +6.1dB, EQ.: 0 to +7.3dB @ 50MHz
  • Coupling: AC/DC
  • Power Source: 12 VDC, 95mA
  • Dimensions (W x D x H): 4.7" x 2.8" x 1.08" (12 x 7.15 x 2.76 cm)
  • Weight: 0.67 lbs. (0.3 kg)
  • Accessories: Power supply, mounting bracket
  • Options: 19" rack adapters RK-T1, RK-T3
