Canare V5-5CFB-300M
Digital Video Wire 75 Ohm, 5 Channel, 300Mt, RG6 type,18AWG

OUR PART #:  V5-5CFB-300M

The Canare V5-5CFB-300M is designed for Digital and HDTV facilities.
Learn More

Call for info!

Similar Products

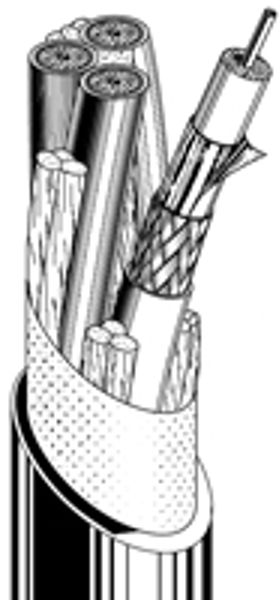

The Canare V5-5CFB-300M is designed for Digital and HDTV facilities. Each coaxial channel includes a Foam Core PE dielectric, Solid Bare Copper Center Conductor and double Foil/Braid Shield. < 2.2 nano second channel-to-channel differential delay time, reduces Phase errors in component video setup alignments. Bundled cable helps keep work site neat and clean. Can be used with confidence for Super Hi-Res CG workstation interconnects and Digital Video installations.

Applications:

  • Serial Digital Video (SDI)
  • HDTV Upgrades
  • Video Walls
  • Hi-Res Video projection
  • CG/CAD Workstations

Canare V5-5CFB-300M Features:

  • Solid Copper Center Conductor
  • Foam PE Dielectric
  • Channel ID Colors
  • Tinned Copper Braid + 100% Foil Shield
  • Dielectric strips away clean from Conductor
  • Precision Coax 100% Sweep Tested

Canare V5-5CFB-300M Specifications:

  • Std. Lng.: 984 ft (300 m)
  • Wt. Std. Lng.: 306 lbs (139 kg)
  • No. of Channels: 5
  • Nominal O.D.: 0.831" (21.1 mm)
  • PVC Jacket Thickness: 0.059" (1.50 mm)
  • Brittle Point: -22°F (-30°C)
  • Chan. O.D.: 0.256" (6.5 mm)
  • Cond.-AWG (Qty./Mil.) Cross Sec. Area mil²: AC-#18(1/41.3) 1341
  • Cond. O.D.: 0.041" (1.05 mm)
  • Dielectric Insulation Type*: Foam PE
  • Insulation O.D.): 0.122" (3.1 mm)
  • Shield Material Coverage: AL Foil 100%, TAC Braid >93%

*Dielectric Strength = 1000V AC/1min. Insulation Resistance/3Mft = >1000M Ohm.
