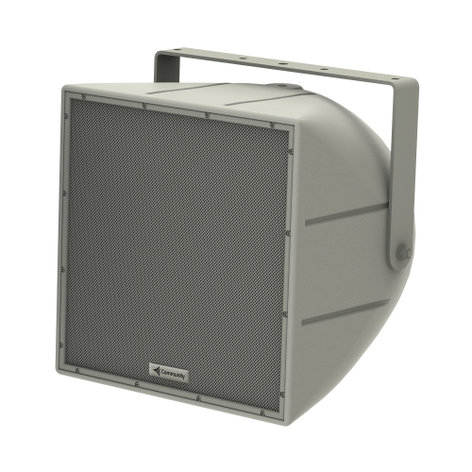

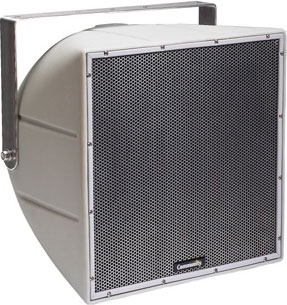

Community R.5-94TZ
12" 200W 2-Way Horn-Loaded Full-Range Weather-Resistant Speaker with 90°x40° Dispersion for 70V/100V Lines

OUR PART #:  R.5-94TZ

Community's R.5-94TZ two-way, full-range loudspeaker system is engineered to provide quality full-range sound projection in a variety of outdoor and indoor applications.
Learn More
Our Price: $958.00

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

Community R.5-94TZ
Qty:
Usually ships in 7-14 business days.

Similar Products

Community's R.5-94TZ two-way, full-range loudspeaker system is engineered to provide quality full-range sound projection in a variety of outdoor and indoor applications. Its wide range, smooth frequency response and high efficiency ensure both high fidelity music reproduction and superb projection of clear intelligible speech with very low distortion. An input autoformer with switchable taps provides impedance matching to 70V or 100V lines. Fiveyear limited product warranty; fifteen-year enclosure warranty.

Community R.5-94TZ Applications:

  • Fill speaker for stadia, athletic fields, arenas and race tracks
  • Convention centers
  • Outdoor background music / paging systems
  • Theme and amusement parks
  • Fairgrounds, rodeos, air shows
  • Malls, cruise ships, skating rinks
  • Swimming pools
  • Portable sound systems

Community R.5-94TZ Features:

  • Rotomolded, UV enclosure
  • Pattern control down to 630 Hz
  • High efficiency
  • Integral mounting points
  • High power passive crossover
  • DYNA-TECH active protection circuitry
  • Multi-tap 200W autoformer for 70V and 100V inputs
  • Five-year product warranty / Fifteen-year enclosure warranty

Community R.5-94TZ Specifications:

  • Loudspeaker Type: 2-way, horn loaded coaxial, weather-resistant
  • Operating Range: 85Hz to 16kHz
    125Hz to 10kHz (+/-4dB)
  • Max Input Ratings: 200W, 70V/100V
  • Recommended Power Amplifier:
    25W to 200W @ 70V
    50W to 200W @ 100V
  • Sensitivity (1W/1m):
    100 dB SPL (125 Hz to 10 kHz 1/3 octave bands)
    101 dB SPL (250 Hz to 4 kHz speech range)
  • Maximum Output on 200W Tap: 123 dB SPL
  • 200W Nominal Impedance: 25 ohms
  • 200W Minimum Impedance: 16.4 ohms @ 8.7 kHz
  • Nominal -6dB Beamwidth:
    90° H (+1°/-46°, 1.6 kHz to 12.5 kHz)
    40° V(+16°/+1°, 1.6 kHz to 12.5 kHz)
  • Axial Q/DI: 18.1/12.6, 1.6kHz to 10kHz
  • Crossover Frequency: 2kHz
  • Recommended Signal Processing: 90Hz high pass filter
  • Drivers:
    LF: (1) 12" Ferrofluid-cooled
    HF: (1) 1" exit, titanium free, Ferrofluid-cooled
  • Driver Protection: DYNA-TECH
  • Input Connection: 12 foot SJOW #16 gauge
  • Controls:
    4 position autoformer TAP select switch
    70V switchable taps @ 200W, 100W, 50W, 25W
    100V switchable taps @ 200W, 100W, 50W
  • Enclosure: Rotomolded HDPE, light grey
  • Mounting/Rigging Provisions: (5) 3/8-16 rigging points
  • Grille: 3-layer WeatherStop (Perforated steel, foam, stainless steel mesh)
  • Required Accessories: 24 dB/Oct high pass filter
  • Supplied Accessories:
    (1) Stainless steel (304) yoke bracket
    (1) Aiming strap
  • Optional Accessories: Pole mount (ATM Flyware or Polar Focus)
  • Dimensions: 16" H x 16" W x 15.94" D
  • Weight: 37 lbs
  • Shipping Weight: 42 lbs
