Radio Design Labs RU-MLD4
1x4 Microphone/Line Distribution Amplifier

OUR PART #  RUMLD4

Our Price: $269.78
List Price: $360.88
You save 25%! (Low Price Guarantee)
Usually ships in 7-14 business days.
Need it sooner? Call us!

Recommended Accessories

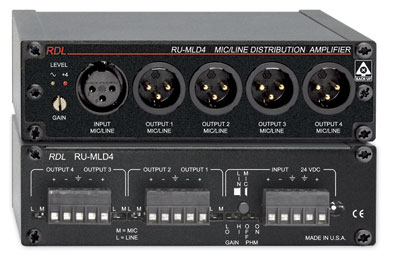

Radio Design Labs' RU-MLD4 is a four channel audio distribution amplifier. The input and all four outputs may be connected through the front-panel XLR jacks or on the rear panel detachable terminal blocks. The input accepts either a balanced microphone or line level signal. Each of the four outputs provides either a microphone or line level signal. Both the front-panel XLR connectors and the rear-panel terminals are active at all times. The RU-MLD4 may be rack-mounted with the XLR jacks facing forward, or may be reverse-mounted using the RDL RU-FP1 Filler Panel/Reverse Mount Kit.

The audio input is equipped with a rear-panel switch to select between MIC and LINE level. Two additional switches allow setting the MIC input for LO or HI gain and for enabling or disabling standard 24 Vdc phantom. The two microphone gain settings allow the connection of a wide variety of dynamic and condenser microphones. Each output is provided with a separate rear-panel switch to set the associated level to either MIC or LINE. Audio outputs are isolated from each other and may be wired balanced or unbalanced. Gain trim is provided on a front-panel control. The knurled adjustment is provided with a screwdriver slot so the gain may be adjusted by hand or by screwdriver. An RDL Dual-led VU meter is provided above the gain trimmer. The meter is calibrated to indicate +4 dBu for outputs set to line level. The rear panel provides a detachable terminal block and a power input jack to connect 24 Vdc power. Each output of the RU-MLD4T is equipped with a studio-quality audio output transformer.

NOTE:  Radio Design Labs' PS-24AS power supply is NOT included but is required in order to power this product.  Please see the "Accessories" tab or click here for more information on the PS-24AS power supply.

Radio Design Labs RU-MLD4 Features:

  • Distribution Amplifier with Four Outputs
  • Front Panel XLR Input / Output Jacks
  • Detachable Input / Output Terminal Blocks
  • Switch-selectable Mic or Line Input
  • Switch-selectable Mic Gain and Phantom
  • Gain Trim on Input
  • Each Output Switch-selectable Mic or Line

Radio Design Labs RU-MLD4 Specifications:

  • Inputs:  XLR (front); detachable term block (rear)
  • Input level (for +4 dBu output):
    • Switch-selectable (rear panel) MIC/LINE
      • Mic:  -48 dBu to -3 dBu (LO GAIN); -65 dBu to -20 dBu (HI GAIN)
      • Line:  -15 dBu to +28 dBu
  • Input Impedance: Mic:  2 kohmbalanced,switchable 24 V phantom (IEC 1938: 1996-12) XLR (front); detachable term block (rear)
  • Output level:   Switch-selectable (rear panel) MIC/LINE
  • Output Impedance:  150 ohm balanced
  • Gain Trim:  Front panel adjustable
    • Mic:  Off to 52 dB gain (LO GAIN); Off to 69 dB gain (HI GAIN)
    • Line:  Off to 20 dB gain
  • Frequency Response:
    • Mic:  80 Hz to 50 kHz (+/- 0.75 dB); < 10 dB @ 20 Hz (integral high-pass filter)
    • Line:  15 Hz to 50 kHz (+/- 0.1 dB)
  • THD+N:  < 0.1% (Mic); < 0.005% (Line)
  • CMRR:  > 60 dB (Mic); > 50 dB (Line)
  • Residual Noise (below +4 dBu LINE output or -45 dBu MIC output):  -85 dB
  • Headroom:  > 20 dB (above +4 dBu LINE output)
  • Power Requirement:  GROUND-REFERENCED, 24 to 33 Vdc @ 80 mA
