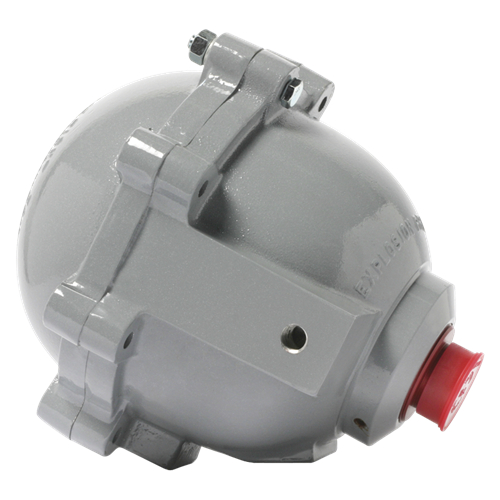

Atlas IED HLE1 UL Listed Explosion-Proof 60W @ 16 Ohms Driver

The HLE-1 is an explosion-proof compression driver designed for high-efficiency voice and electronic signal communication in hazardous areas. The driver is enclosed for protection in a rugged die-cast aluminum housing that is equipped with ½” conduit access and an adjustable mounting bracket.

Two styles of optional projector horns are available for different dispersion requirements. Model HLE/MLE-30 is a high-quality polycarbonate horn that creates a 120° x 60° pattern for wide area coverage. Model HLE/MLE-32 is a spun aluminum bell with a 95° circular dispersion pattern.

Note: Only the HLS/MLE-30 and HLE/MLE-32 horns are UL listed for use with the HLE or MLE lines of explosion-proof drivers.

Atlas IED HLE1 Features:

• 60-Watt, 16-ohm driver
• 250Hz – 12kHz frequency response
• Explosion-proof driver for signal and communications systems
• Approved for Class 1/Groups C&D environments
• Can be used with either HLE/MLE-30 or HLE/MLE-32 horn projectors
• Listed by UL for use in hazardous/combustible environments (for noted horn/driver models)
• UL certified, safety listed to UL 1203, UL 1604, UL 2279, and YL 913

Atlas IED HLE1 Specifications:

• Frequency Response: 250Hz - 12kHz
• Power Rating: 60 Watts Cont.
• Power Tap: 16Ω
• Assembly Size (WxHxD): 14" x 6" x 17 1/2" (356 x 152 x 445 mm)
