Product Overview

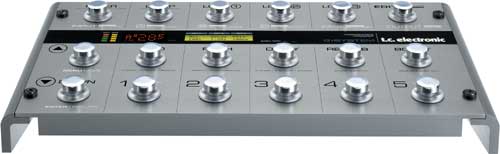

G-System is the world’s first complete high quality floor based Guitar System. Delivering a complete and uncompromised package of effects, control and integration, no other product will match the flexibility or the quality of the G-System.
With its unique combination of two DSP sections providing the very highest quality effects on the market, analog loops, amp switching, floor control, and even 9VDC power outputs for your pedals, the G-System offers the highest level of integration attainable.
Choose between a rack or a floor based setup, decide how the effects are routed, tailor the foot switch layout, and choose from more than 25 different on-board effects.
TC Electronics G-SYSTEM Features:
- Multi-effects processor on the floor
- Up to 9 effects simultaneously
- Fast and smooth preset changes featuring delay spill-overs
- 4 switchable mono-loops for your favorite effect pedals
- 1 additional loop/insert point dedicated for preamps
- 4 x 9V DC outlets powering your effect pedals
- USB connection for software updates
- Ultimate flexibility as the the board can be separated allowing you to place the GFX01 with loops etc. in a 19” rack whileleaving the control board on the floor
- MIDI for control of additional external MIDI units
- Connections for 2/4 Expression pedals
TC Electronics G-SYSTEM Specifications:
- Instrument Inputs:
- Connectors: Two 1/4" phone jacks, pseudo-balanced
- Impedance: 1 Mohm
- Max. Input Level: 18 dBu
- Min. Input Level for 0 dBFS: -6 dBu
- Sensitivity: -6 dBu to +18 dBu
- Loop 1-4:
- Connectors: Two 1/4" phone jacks x 4
- Impedance, input/output: 91 kOhm/100 ohm
- Max. Output Level: 12 dBu
- Output Ranges: 6 ot 10 dBu
- Insert:
- Connectors: Two 1/4" phone jacks
- Impedance, input/output: 24 kOhm (balanced 35kOhm)/100 ohm (balanced 200 ohm)
- Max. Output Level: 12 dBu
- Output Ranges: 6 to 10 dBu
- Analog Outputs (L/R):
- Connectors: Two 1/4" phone jacks
- Impedance: 100 ohm (balanced 200 ohms)
- Max. Output Level: 12 dBu
- Output Ranges: 0 to 10 dBu
- Connectors: RCA phono (S/PDIF)
- Formats: S/PDIF (24 bit), EIAJ CP-340, IEC 958, 75ohm
- Sample Rate: 44.1 kHz
- Frequency Response: typ.: +0.0/-0.4 dB, 20 Hz to 20kHz
- Dynamic Range: typ.: >95 dB, 20 Hz to 22 kHz, 0dBFS
- THD: typ.: < -80 dB, 20 Hz to 22 kHz, -1dBFS
- A to D Conversion: 24 bit, 128 x oversampling bitstream, DSR
- D to A Conversion: 24 bit, 128 x oversampling bitstream, DSR
- EMC:
- Complies with: EN 55103-1 and EN 55103-2, FCC part 15, Class B, CISPR 22,Class B
- Safety:
- Certified to: IEC 60065/EN 60065/UL 60065/CSA E60065
- Environment:
- Operating Temperature: 32°F to 122°F (0°C to 50°C)
- Storage Temperature: -22°F to 167°F (-30°C to 70°C)
- Humidity: Max. 90% non-condensing
- Control Interface:
- MIDI: In/Out: 5 Pin DIN
- USB: USB 1.1, type B
- Pedal (Exp and Vol): Four 1/4" stereo phone jack (2 on GFX01, 2 on Control Board)
- Relay Closure (seperate tip and ring connection to sleeve): 4 relays on two 1/4" stereo phone jack for amp switching
- General
- DC Output: 4 x 9VDC outputs, 200mA totally, Shield(+) Pin (-)
- Finish: Anodized aluminum front; Plated and painted steel chassis
- Display: 2 x 20 character STN-LCD display + 20x7
- Footswitches: Dot-Matrix; 18 Illuminated Footswitches
- Dimensions: 20.2" x 10.5" x 4.1"
- Weight: 17.2 lbs
- Mains Voltage: 100 to 240 VAC, 50 to 60 Hz (auto-select)
- Power Consumption: < 20W
