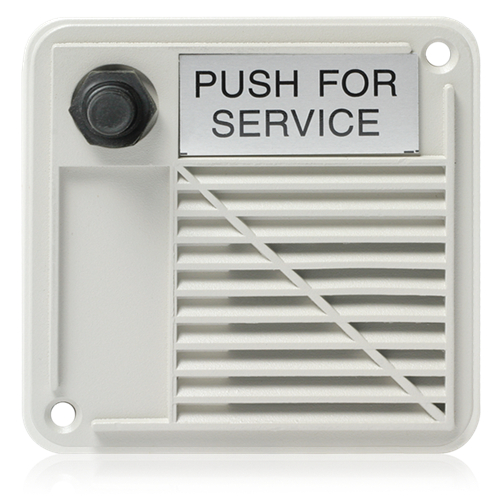

Atlas Sound WPVT-6SN
Outdoor Surface Mount Intercom Stations with Compression Driver and Call Switch 2W 25V

OUR PART #:  WPVT-6SN

Available in flush, semi-recessed...
Learn More
Our Price: $128.99
List Price: $161.99
You save 20%!

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

Atlas Sound WPVT-6SN
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

Available in flush, semi-recessed, and surface-mounting configurations Environment-resistant paging and intercom stations for outdoor installation include weatherproof call/signal origination switch Loudspeaker provides clear and consistent voice and signal transmission Power handling selection of 15 and 2 watt models includes optional 25 volt transformer to meet various functional and transmission requirements Proven performance reliability of the patented VT Series environment-resistant compression driver Semi-recessed

WPVT-FN/WPVT-SN Series are flush- and surface-mounting, weather-resistant, electroacoustic signaling devices respectively. They are ruggedly constructed to withstand moisture, corrosion, dust, vibration, and temperature extremes from -30° to 150° F. Stations include high-intelligibility, environment-resistant compression driver, choice of semi-recessed enclosure or flush face plate, a variety of mounting accessories, and a weather resistant call button for protected call-in signalling capability. Stations are available in 15 or 2 watt versions with optional 25 volt transformer. The 8 ohm compression driver is the patented VT Series model with water-sealed, die-cast zinc construction and integral, exponential sound projector to provide clear audibility. Call switch is a momentary-action, heavy-duty push button with a contact rating of 3 amps. The call button has a SPDT-type switch which is protected by a weather-resistant rubber boot to provide durable and safe operation in outdoor and high humidity environments.
WPVT-SN Series are compact assemblies size 41/4" SQ x 31/8" D (108 x 79mm) which are designed for semi-recessed installation. WPVT-FN Series are attractively designed face plates size 6" SQ x 33/16" D (152 x 81mm) for flush installations. Both styles will accept a variety of mounting accessories to meet varying installation requirements (see back page). Enclosures and face plate are die-cast construction finished in neutral grey epoxy.

Atlas Sound WPVT-6SN Specifications:

  • Dimesions (HxWxD): 4" x 4" x 3" (10.80 x 10.80 x 7.94 cm)
  • Shipping Weight: 3.50 lbs (1.59 kg)
  • Frequency Response: 600-5500Hz
  • Power Taps: 2 and 1
  • Dispersion: > 190° (- 6dB pt., 1 and 2 kHz octave bands)
  • Sensitivity: 93dBA
  • Transformer: 25V
