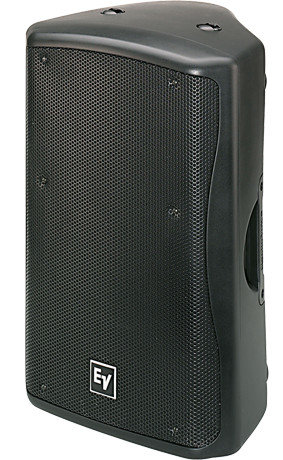

Electro-Voice ZX5-60B
15" 2-way Passive 60°x60° 600W Loudspeaker, Black

OUR PART #:  ZX5-60B

The Electro-Voice ZX5-60B is a 15" two-way 600 watt full-range passive loudspeaker that features a 60º x 60º dispersion pattern.
Learn More
Our Price: $1,049.00
List Price: $1,342.00
You save 22%!
Write the first review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

Electro-Voice ZX5-60B
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

The Electro-Voice ZX5-60B is a 15" two-way 600 watt full-range passive loudspeaker that features a 60º x 60º dispersion pattern.

Electro-Voice ZX5-60B Features:

  • Versatile performance for mains, fills, or monitors
  • DVX3150A woofer with forced-air cooling
  • 2-inch ND2 titanium/neodymium HF driver
  • Switchable bi-amp or passive crossover operation
  • 60º x 60º coverage horn
  • High sensitivity, 132 dB maximum SPL
  • Power handling: 600 W continuous, 2400 W peak
  • High impact polypropylene enclosure
  • Wedge shape for monitors at 45º or 55º
  • Up to five anchor-plate attachments
  • M8 mounting inserts (10)
  • Integrated handle

Electro-Voice ZX5-60B Specifications:

  • Chassis Size:  15" (381 mm)
  • Color:  Black
  • Input Connections:  Parallel Neutrik® NL4
  • Speaker Type:  Full-range, Mid-High, Two-Way, Wedges
  • Frequency Response (-3 dB):  58 Hz - 18 kHz
  • Frequency Response (-10 dB):  39 Hz - 20 kHz
  • Internal Crossover:  Switchable biamp or passive crossover
  • Recommended High-Pass Frequency:  36 Hz
  • Sensitivity 1 W/1 m:  98 dB
  • Max. SPL/1m (calc):  132 dB
  • Coverage (Nominal -6 dB) H:  90/60°
  • Coverage (Nominal -6 dB) V:  50/60°
  • System Power Handling (Continuous/Program/Peak):  600//2400 Watts
  • LF Transducer:  15-inch DVX3150A
  • LF Power Handling:  500 Watts
  • HF Power Handling:  40 Watts
  • LF Nominal Impedance:  8 ohms
  • HF Transducer:  2-inch ND2
  • HF Nominal Impedance:  8 ohms
  • Crossover Frequency:  1500 Hz
  • Nominal Impedance (Passive):  8 ohms
  • Minimum Impedance:  6.5 ohms
  • Enclosure Material:  High Impact Polystyrene
  • Flying:  Yes
  • Outdoor:  Yes
  • Grill:  Polyester Powder Coated, 18GA Galvanized Steel
  • Height:  27.24" (692 mm)
  • Width:  17.56" (446 mm)
  • Depth:  16.18" (411 mm)
  • Weight (Net):  48.94 lbs (22.2 kg)
