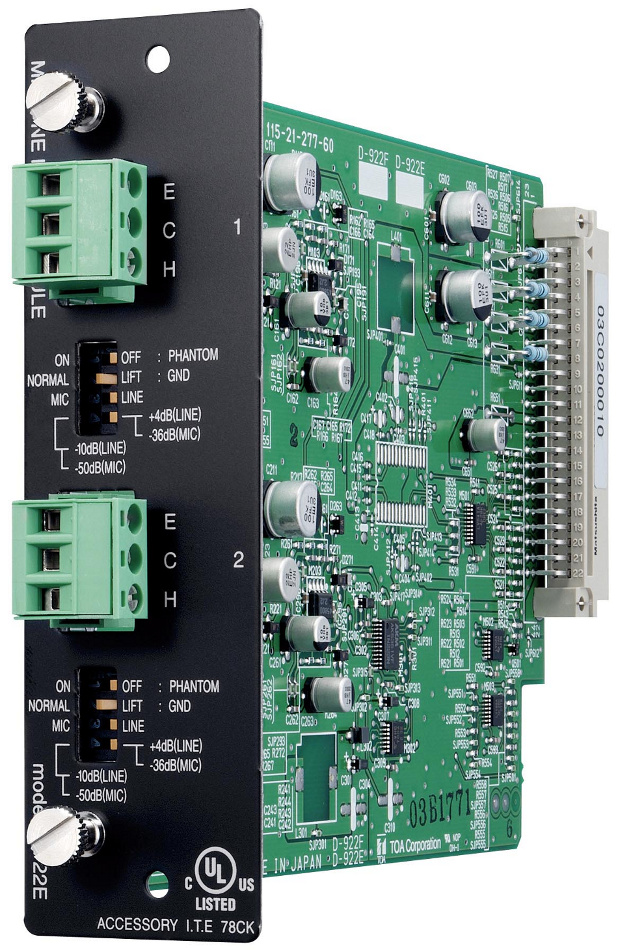

TOA D-922E Dual-Channel Balanced Input Module with Phoenix Connectors

The TOA D-922E is a 2-channel input module for the TOA D-901 modular digital mixer that accepts mic and line level inputs (selectable). It is equipped with removable terminal block connectors and DIP switches to adjust input sensitivity, phantom power and ground lifting.

Specifications:

• Input: 2 channels, –50 / –36 / –10 / +4dB (Selectable with the DIP switch)
  • 4.7kΩ electronically-balanced
  • Phantom power supply (15V, can be set with the DIP switch)
  • Ground lift switch (can be set with the DIP switch)
• Connector Type: Removable terminal block
• A/D Converter: 20-bits
• Frequency Response: 20Hz– 20kHz, ±1dB (+4dB input)
• Sampling Frequency: 48kHz
• Dynamic Range: Over 85dB (IHF-A weighted) (+4dB input)
• Total Harmonic Distortion: Under 0.2% (+4dB input)
• Finish, Panel: Pre-coated steel plate, black, 30% gloss
• Dimensions (W x H x D): 35 x 119.5 x 178.4mm
• Weight: 125g
