Microtech Gefell KEM970
Cardioid Plane Multi-Capsule Condenser Microphone

OUR PART #:  KEM970

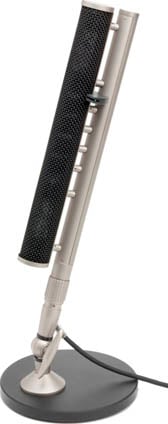

Microtech Gefell's KEM970 is a cardioid plane microphone that features a series of 8 precision-controlled capsules in a line array configuration.
Learn More
Microtech Gefell KEM970 with Accessories
Microtech Gefell KEM970 Mic Cable
Microtech Gefell KEM970 Amplifier

Click a thumbnail to see more images. (5 total)

Call for price! Not available online.
List Price: $11,128.75

Select a Model: (shipping times are approximate)
Similar Products

Microtech Gefell's KEM970 is a cardioid plane microphone that features a series of 8 precision-controlled capsules in a line array configuration.  This allows signal steering of source material whereby a natural supercardioid pattern is achieved on the horizontal plane while a narrow 30º pattern is focused on the vertical plane.  This makes the KEM970 ideal for placement in theatres, on podiums, film production and other environments where a precision aiming of the sound source is required.  Comes with power supply, cable and aluminum carry case.   Available in satin nickel and dark bronze finishes.

Microtech Gefell KEM970 Specifications:

  • Pattern: Cardioid plane 120° x 30°
  • Response: 40Hz ~ 18kHz
  • Sensitivity: 775mV/Pa
  • Level/Roll-off: -10dB/-20dB pad, -10dB @ 90Hz
  • Self noise: -15dB-A
  • Signal to Noise: 79dB-A
  • Maximum SPL: 136dB with 10dB pad
