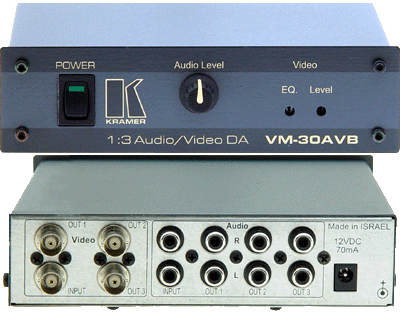

Kramer VM30AVB
1:3 Audio&Video DA on BNCs

OUR PART #:  VM30AVB

The Kramer VM-30AVB is a compact distribution amplifier for composite or SDI video and unbalanced stereo audio signals.
Learn More
Our Price: $192.00
List Price: $240.00
You save 20%!

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

Kramer VM30AVB
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

The Kramer VM-30AVB is a compact distribution amplifier for composite or SDI video and unbalanced stereo audio signals. It provides controls to compensate for signal losses inherent in long cable runs.

High Bandwidth - 430MHz at - 3dB.  Video on BNC Connectors (VM-30AV has RCAs).  Audio Level Control.  Level (Gain) and EQ (Peaking) Controls.  Desktop Size - Compact size. Two units can be rack mounted side-by-side in a 1U rack space with the optional RK-50RN adapter.

INPUTS:   1 video, 1 Vpp/75 ohm; on a BNC connectors.1 audio stereo, 1Vpp/70k on RCA connectors.   OUTPUTS:   3 video, 1 Vpp/75 ohm; on BNC connectors.3 audio stereo, 1Vpp/150 ohm;s on RCA connectors.   MAX. OUTPUT LEVEL:   Video: 2Vpp, audio: 5.4 Vpp.   BANDWIDTH (-3dB):   Video: 430MHz, audio: 100 kHz.   DIFF. GAIN:   0.04 %   DIFF. PHASE:   0.07 deg.   K-FACTOR:   0.05 %.   S/N RATIO:   Video: 73dB, audio: 83dB.   CONTROLS:   Video level: -1.1 to +1.8dB, EQ.: 0 to +4.6dB @ 5.8MHz.Audio level: -66 to +16dB.   COUPLING:   AC.   AUDIO THD+NOISE:   0.3%.   AUDIO 2nd HARMONIC:   0.02%.   POWER SOURCE:   12 VDC, 50 mA typ.   DIMENSIONS:   16.5cm x 12cm x 4.5cm (6.5” x 4.7” x 2.8”) W, D, H.   WEIGHT:   0.65 kg (1.4 lbs.) approx.   ACCESSORIES:   12 VDC power supply, brackets for stacking multiple units.   OPTIONS:   19” rack adapter RK-50RN.
