Bogen Communications TPU35B
35 Watt Paging Amp

OUR PART #:  TPU35B

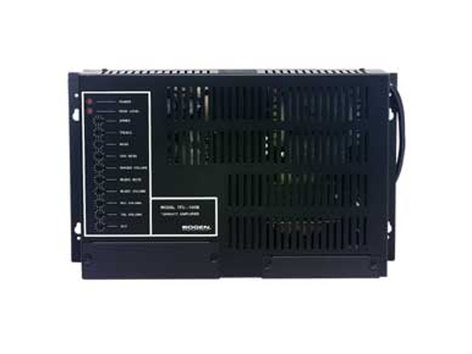

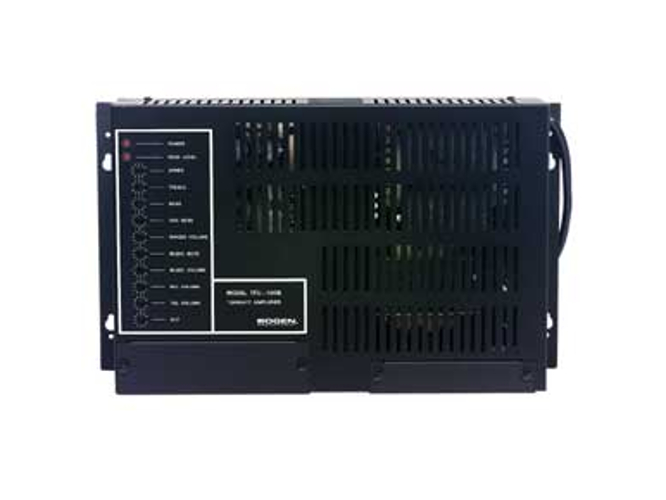

The Bogen TPU35B is a wall-mounted telephone paging amplifier rated at 35 watts. This amplifier permits paging from telephone and/or microphone.
Learn More
Our Price: $354.66
List Price: $431.68
You save 18%!

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

Bogen Communications TPU35B
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

The Bogen TPU35B is a wall-mounted telephone paging amplifier rated at 35 watts. This amplifier permits paging from telephone and/or microphone. Music input through an RCA jack or screw terminals. Voice-activated, variable level, music mute with fade back after page. This amp also includes a night ringer which sends an electronic ringing tone signal through all speakers, alerting personnel of incoming calls during non-business hours. Jacks are also provided to bridge two TPU amplifiers to double the number of inputs and outputs.

Bogen Communications TPU35B Features:

  • 35 Watts
  • Inputs for 600-ohm balanced telephone line, LO-Zbalanced microphone, and background music
  • Music input (RCA jack or screw terminal)
  • Integral automatic level control (ALC) circuit forcontrolling pages mady be persons with varying voice levels and pagingtechniques
  • Page from telephone and/or microphone
  • Signal-activated paging channel automatically mutesback-ground music
  • Adjustable background music muting level during apage
  • Aphex Aural Exciter increases intelligibility,improves perceived loudness (with no increase in power), and reduces listenerfatigue
  • Separate controls for page volume, music volume,night ringer, music mute, and Aphex Aural Exciter
  • Bass and Treble controls
  • Built-in night ringer activated by contact closure orby 90V ring signal
  • Balanced or unbalanced 16-ohm, 25V, 25VCT, and 70Voutputs are available
  • VOX sensitivity level control eliminates transmissionof background noise when paging from a telephone
  • Thermal and electronic overload protection
  • Jacks provided for bridging additional TPU amplifiers
  • Brackets are attached for easy wall mounting
  • Can be rack-mounted with RPK82 kit
  • Peak level indicator lights when amplifier is driveninto clipping
  • 120V AC, 60Hz power source
  • UL and CSA listed

Bogen Communications TPU35B Specifications:

  • Power Output: 25W RMS
  • Frequency Response: 70Hz to 15kHz +/-1dB
  • Distortion: Less than 1%
  • Hum & Noise: (20Hz-20kHz) Music: -70dB; Tel:-70dB; Mic: -55dB
  • Sensitivity: Music: 85mV; Tel: -20dBm (77mV); Mic:600┬ÁV
  • Tone Control: Bass - +/-9dB @ 100 Hz; Treble - +/-9dB@ 10kHz
  • Regulation: 2dB
  • Inputs: Tel: 600-ohm balanced line,transformer-isolated; Music: Hi-Z source RCA jacks or screw terminals; Mic:Lo-Z balanced, screw terminal connection; Music Mute: Mutes music during amicrophone page; Contact Ringe: Sounds night ringer tone whencustomer-supplied dry contacts are closed; Tel Ring: Sounds night ringer inresponse to 90V ring signal; Bridging: Permits bridging of two amplifiers
  • Outputs: 25V, 25VCT, and 70V, 16 ohms balanced orunbalanced
  • Controls & Indicators: POWER & PEAK LEVEL LEDindicators. APHEX, TREBLE, BASS, VOX SENS, RINGER VOLUME, MUSIC MUTE, MUSICVOLUME, MIC VOLUME, TEL VOLUME, ALC controls (screwdriver-adjustable)
  • Overload Protection: thermal and electronic overloadprotection included. 1.0A, 120V AC circuit breaker
  • Power Requirements: (120V AC, 60Hz) 0.75A
  • Finish: Black with silver lettering
  • Dimensions (W x H x D): 14 3/16" x 8 3/8" x 3 5/8"
  • Shipping Weight: 16 lbs
