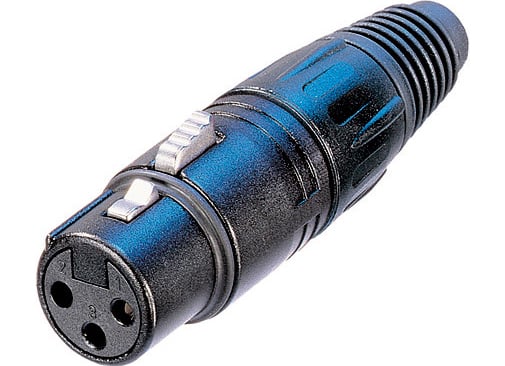

Neutrik NC3FX-B
3-pin XLR-F Cable Connector in Black with Gold Contacts

OUR PART #:  NC3FX-B

Neutrik's NC3FX-B is a 3-pole female cable connector with black metal housing and gold contacts.
Learn More
Our Price: $4.38
List Price: $5.77
Save up to 36% when you order by quantity!
  • Buy 25: $3.96 each.
  • Buy 50: $3.82 each.
  • Buy 100: $3.68 each.
Write the first review.

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

Neutrik NC3FX-B
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!
Similar Products

Neutrik's NC3FX-B is a 3-pole female cable connector with black metal housing and gold contacts.

Electrical Specifications:

  • Number of contacts: 3
  • Contact resistance: = 3 m ohm
  • Insulation resistance, initial: > 2 G ohm
  • Insulation resistance, after damp heat test: > 1 G ohm
  • Dielectric strength: 1500 V dc
  • Rated current: 16 A
  • AWG: 2.5 mm²/14 AWG
  • Capacitance between contacts: = 4 pF

Mechanical Specifications:

  • Lifetime: >1000 cycles
  • Insertion / withdrawal force: = 20 N
  • Cable O.D. range: 3.5 mm - 8.0 mm

Material Specifications:

  • Shell: ZnAl4Cu1, gal Ni over Cu plating
  • Insert: PA 6.6 30% GR (glass reinforced)
  • Contacts: CuSn8
  • Contact surface: gal 2 µm Ag
  • Latch lock (female): St3K32
  • Strain-relief clamp: POM
  • Antikink bushing: PUR

Environmental Specifications:

  • Temperature range: -30° C to + 80° C
  • Flammability: UL 94HB
  • Solderability: complies with IEC 68-2-20
