Altman 65Q 750W 6" Fresnel

OUR PART #: 65Q MFR #: 65Q

Copied to clipboard

The Altman 65Q 6" fresnel is a lightweight, short-throw... ...Read more

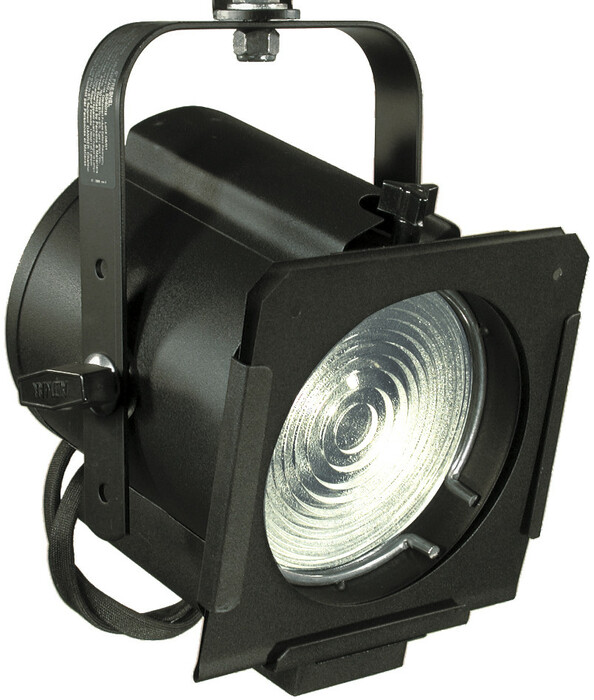

Altman 65Q 750W 6" Fresnel Image 1
Altman 65Q 750W 6" Fresnel
Our Price: $451.00
List Price: $563.75
You save 20%!

SPECIAL FINANCING AVAILABLE

Synchrony Music & Sound Card
$13/mo* with 36 month financing. ‡
Limited Time. Learn How

Questions? Contact our
Sales and Service Pros for expert
advice and package pricing.

800-356-5844

Email customer service

Product Overview

The Altman 65Q 6" fresnel is a lightweight, short-throw, all-purpose lighting device that produces a soft-edged beam varying in diameter from 4.2 feet to 21 feet at a throw distance of 15 feet. The 65Q is designed for operation with long-life, high-intensity tungsten-halogen lamps. The luminaire is used in theatre for acting area lighting where beam shaping is not required, or in television studios for key and back lighting. Other uses include nightclubs, museums and show windows where soft-edged controlled lighting is required.

Altman 65Q 6" Fresnel Features:

  • Sheet-steel welded construction
  • Specular spherical Alzak aluminum reflector
  • Spot-to-flood focus adjustment
  • 6" heat-resistant fresnal lens
  • Medium prefocus socket
  • Color frame and safety cable with spring clip included
  • Three 36" Teflon lead wires
  • Up to 25' of Hi-Temp rubber cable optional
  • U.L.-, c.U.L.-, and CE-listed for 750 watts
  • Made in the U.S.A.

Altman 65Q 6" Fresnel Specifications:

  • Housing: Sheet-Steel construction
  • Materials: Corrosion-resistant materials and hardware
  • Yoke: Rigid flat steel with clearance hole for 1/2" bolt
  • Reflector: Alzak aluminum, spherical design
  • Lens: Pyrex fresnel lens with stippling on flat surface
  • Socket: Altman medium prefocus, tool-free relamping
  • Rating: 120/240 volts AC/DC operation, 6.3/3.1 amps,750 watts maximum
  • Cable: 36" Teflon leads encased in black fiberglass sleeving. Up to 25 ft Hi-Temp rubber cable optional
  • Access Door: Hinged, allows tool-free access to lens, reflector and lamp
  • Focusing: Adjusted with locking thumb screw on bottom surface
  • Accessories: Accepts standard 7 1/2" accessories
  • Finish: Black epoxy Sandtex, electrostatic application
  • Weight: Approx. 9.0 lbs
