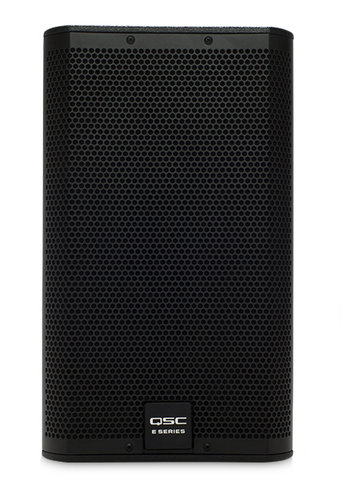

QSC E110 10" 2-Way Passive Loudspeaker

The QSC E110 is a compact, two-way loudspeaker featuring a 10" die cast frame woofer with a 2.5" voice-coil housed in a multi-purpose enclosure that’s at home as a stage monitor or main PA deployment. It incorporates QSC’s DMT (Directivity Matched Transition) design with a wide 85° coverage. When used as a stage monitor, the E110 is angled up at a 55° angle allowing it to be placed near the performer when used on a crowded stage.

E Series loudspeakers will perform very well with any quality, professional power amplifier – but by taking advantage of the complete E Series Entertainment System, more performance and options are available. Today’s powered loudspeakers rely on finely tuned digital signal processing (DSP) to achieve a higher level of performance. When used with QSC GXD or PLD amplifiers or with a QSC TouchMix digital mixer, E Series loudspeakers can also take advantage of advanced DSP. QSC has developed E Series DSP settings for all three platforms. These settings support a variety of applications including live sound reinforcement (with and without subwoofers), stage monitoring, dance music and karaoke.

Applications

• Live performance
• DJ
• Dance music
• Karaoke
• Production

Features

• High output, professional quality sound with 300W continuous power
• E Series Entertainment System – Advanced digital signal processing tunings and options using QSC GXD and PLD amplifiers or TouchMix digital mixers
• Rugged tour-grade textured paint
• Foam-lined perforated steel grill
• Suitable for main PA and stage monitor use
• Available U-Style Yoke and M8 rigging kit for permanent installation
• Dual angle pole socket

Specifications

• Configuration: 10" 2-way non-powered loudspeaker
• Frequency Response (-6 dB): 68 Hz – 20 kHz
• Frequency Range (-10 dB): 50 Hz - 20 kHz
• Power capacity: continuous/peak: 300W / 1200W
• Sensitivity: 95 dB, 1 W @ 1 m
• Coverage Angle: 85° conical DMT
• Output (Peak SPL @ 1 m): 126 dB
• Drivers:
  • LF: 10" driver with 2.5" voice coil
  • HF: 1" exit, 1.75" voice coil, compression driver
• Nominal Impedance: 8 Ω
• Cross-over: Full-range only, 1.8 kHz
• Input Connections: 2 x NL4, 1 x barrier strip
• Enclosure: Multi-angle plywood, black texture paint finish. One top-mounted handle. Perforated, powder-coated steel grille with foam lining
• Mounting and suspension: 9 x M8 suspension points,dual angle, 35 mm pole-socket
• Net weight: 44 lbs. (20 kg)
• Shipping weight: 50 lbs. (23 kg)
• Dimensions (W x H x D): 13" x 22" x 13" (330 x 560 x 330 mm)
