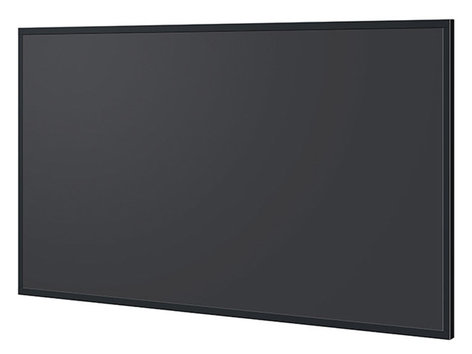

Panasonic TH-80SF2HU
80" LinkRay Enabled Full HD Professional Display

OUR PART #:  TH80SF2HU

From Panasonic's series of SF2H business display offerings...
Learn More

Call for price! Not available online.
List Price: $8,569.00

Related Products

From Panasonic's series of SF2H business display offerings, the TH-80SF2HU is ideal for individuals looking for a large-screen display for clear information transmission in public spaces such as train stations, airports, and bright lobbies. With a brilliant, high-quality 700-cd/m2 of image brightness, this display will cut thru the challenges of natural lighting in open spaces to be seen.

This HD display has the added benefit of LinkRay™ Technology - Panasonic's original and unique information distribution technology that employs visible light to beam information to consumers. This is done by transmiting information to a smartphone* with a LinkRay-enabled app installed. Potential capabilities include launching mapping applications or transport timetables for tourists; reporting traffic conditions in real time; offering coupons and product information in retail environments; or accessing apps designed to enhance the experience at cultural institutions, all in the device’s native OS language.

NOTE:  * Smartphones that meet minimum OS version and camera performance requirements only. See the LinkRay Leaflet in the documentations tab above for additional information and limitations.

With a simple, flexible installation, the TH-80SF2HU is also easy to operate as HDMI-CEC compatible devices can be connected to the display by an HDMI cable,enabling the basic operations (such as power ON/OFF), along with automatically showing pictures when a USB memory containing data is inserted. The display unit can also be used as digital signage without a set-top box or PC. And the TH-70SF2HU is compatible with Panasonic's Failover and Failback Safeguards to prevent image interruption when trouble occurs, allowing you safe use by totally managing the entire system.

Panasonic TH-80SF2HU Features:

  • LinkRay Enabled Built-in Light ID Transmission Function
  • Built-in USB Media Player for various types of signage operation
  • DIGITAL LINK function enables simple installation and low system costs
  • High-Brightness for high-quality images in bright settings
  • Efficient and Reliable 24-Hour Operation
  • Tilting Installation for vertical or horizontal
  • HDMI CEC Device linking supported
  • Cloning Function to easily copy setting data for multiple displays

Panasonic TH-80SF2HU Specifications:

  • Screen Size: 80"
  • Panel: VA/Edge LED
  • Resolution: 1920 x 1080
  • Brightness (cd/m2): 700
  • 24/7 Operation Supported: Yes
  • Orientation: Landscape/Portrait/Angle adjustment 0-45 degrees for both left and right (Landscape setting only)1

NOTE: 1 When installing the display vertically, ensure the power indicator side is down.

  • Bezel Width: R/L/B: 28.5 mm
  • HDMI: Type A x 2
  • DVI: DVI-D 24-pin x 1, HDCP 1.1 Compatible
  • PC In: Mini D-sub 15 pin x 1 (Female)
  • Serial: D-Sub 9 pin x 1, RS-232 Compatible
  • Lan: RJ45 x 1 10 BASE-T/100BASE-TX
  • USB: Type A USB x 1
  • Built In Speaker: 20 W (10 W + 10 W)
  • LinkRay Enabled: Yes
  • Integrated Touch: No
  • Power Supply: 110 - 240 V, AC 50 Hz/60 Hz
  • Power Consumption: 380 W
  • Dimensions (W x H x D): 72.3" x 41.8" x 3.3" (1835 x 1060 x 82 mm)
  • Weight: 159 lbs
