Panasonic TH-70SF2HU 70" Class Full HD LCD Display

OUR PART #: TH70SF2HU MFR #: TH70SF2HU

Copied to clipboard

From Panasonic's series of SF2H business display offerings... ...Read more

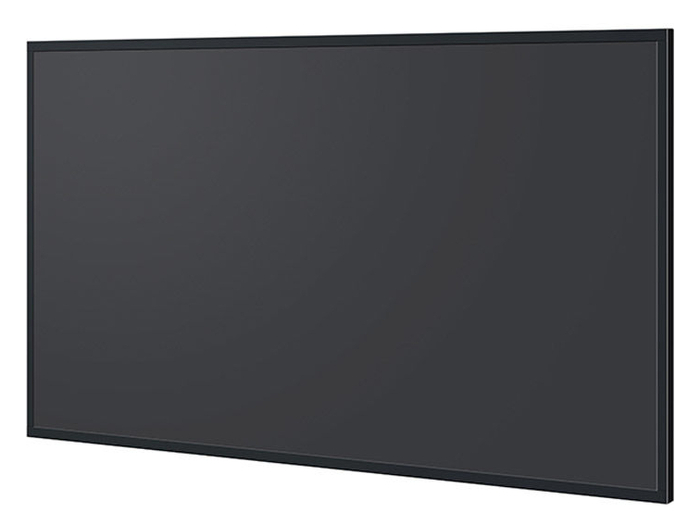

Panasonic TH-70SF2HU 70" Class Full HD LCD Display Image 1
Panasonic TH-70SF2HU 70" Class Full HD LCD Display Image 2
Panasonic TH-70SF2HU 70" Class Full HD LCD Display Image 3
Panasonic TH-70SF2HU 70" Class Full HD LCD Display Image 4
Panasonic TH-70SF2HU 70" Class Full HD LCD Display
No longer available at Full Compass
We've left this page up for reference only.

Questions? Contact our
Sales and Service Pros for expert
advice and package pricing.

800-356-5844

Email customer service

Accessories

Product Overview

From Panasonic's series of SF2H business display offerings, the TH-70SF2HU is ideal for individuals looking for a large-screen display for clear information transmission in public spaces such as train stations, airports, and bright lobbies. With a brilliant, high-quality 700-cd/m2 of image brightness, this display will cut thru the challenges of natural lighting in open spaces to be seen.

With a simple, flexible installation, the TH-70SF2HU is also easy to operate as HDMI-CEC compatible devices can be connected to the display by an HDMI cable,enabling the basic operations (such as power ON/OFF), along with automatically showing pictures when a USB memory containing data is inserted. The display unit can also be used as digital signage without a set-top box or PC. And the TH-70SF2HU is compatible with Panasonic's Failover and Failback Safeguards to prevent image interruption when trouble occurs, allowing you safe use by totally managing the entire system.

An added benefit of this HD display is LinkRay™ Technology - Panasonic's original and unique information distribution technology that employs visible light to beam information to consumers. This is done by transmiting information to a smartphone* with a LinkRay-enabled app installed. Potential capabilities include launching mapping applications or transport timetables for tourists; reporting traffic conditions in real time; offering coupons and product information in retail environments; or accessing apps designed to enhance the experience at cultural institutions, all in the device’s native OS language.

Panasonic TH-70SF2HU Features:

  • LinkRay Enabled Built-in Light ID Transmission Function
  • Built-in USB Media Player for various types of signage operation
  • DIGITAL LINK function enables simple installation and low system costs
  • High-Brightness for high-quality images in bright settings
  • Efficient and Reliable 24-Hour Operation
  • Tilting Installation for vertical or horizontal
  • HDMI CEC Device linking supported
  • Cloning Function to easily copy setting data for multiple displays

Panasonic TH-70SF2HU Specifications:

  • Screen Size: 69.5"
  • Panel: VA/Edge LED
  • Resolution: 1920 x 1080
  • Brightness (cd/m2): 700
  • 24/7 Operation Supported: Yes
  • Orientation: Landscape/Portrait/Angle adjustment 0-45 degrees for both left and right (Landscape setting only)1
  • NOTE: 1 When installing the display vertically, ensure the power indicator side is down.
    • Bezel Width: R/L: 18.6 mm, T/B: 23.6 mm
    • HDMI: Type A x 2
    • DVI: DVI-D 24-pin x 1, HDCP 1.1 Compatible
    • PC In: Mini D-sub 15 pin x 1 (Female)
    • Serial: D-Sub 9 pin x 1, RS-232 Compatible
    • Lan: RJ45 x 1 10 BASE-T/100BASE-TX
    • USB: Type A USB x 1
    • Built In Speaker: 20 W (10 W + 10 W)
    • LinkRay Enabled: Yes
    • Integrated Touch: No
    • Power Supply: 110 - 127 V, AC 50 Hz/60 Hz
    • Power Consumption: 235 W
    • Dimensions (W x H x D): 62.2" x 36.2" x 3.2" (1570 x919 x 80 mm)
    • Weight: 99 lbs

NOTE:

* Smartphones that meet minimum OS version and camera performance requirements only. See the LinkRay Leaflet in the documentations tab above for additional information and limitations.
