RCF EVOX J8
Active Two Way Portable Array

OUR PART #:  EVOX-J8

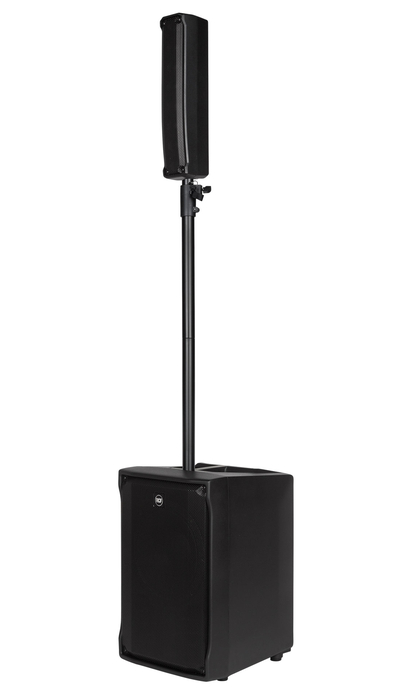

The RCF J8 features a line source satellite module with eight 2” full-range drivers paired with a high-powered 12” woofer in a bass reflex enclosure.
Learn More
Selected Model Price: $999.00
List Price: $1,399.00
Save up to 29%!
Write the first review.
RCF EVOX J8
Select a Model: (shipping times are approximate)

Related Products

The RCF J8 features a line source satellite module with eight 2” full-range drivers paired with a high-powered 12” woofer in a bass reflex enclosure. All powered by on-board 1400 W Class D amplification. The EVOX J Series maintains a similar footprint to the original EVOX systems, now in a portable composite enclosure. The system offers stunning sound performance with crystal-clear vocal reproduction and unparalleled musical response.

RCF EVOX J8 Applications:

  • Live Sound
  • Clubs and DJs
  • Corporate events
  • AV presentations

RCF EVOX J8 Features:

  • 128 dB Max SPL
  • 1400 Watt 2-way peak power
  • DSP Processing with FiRPHASE
  • 12" woofer, high power 2.5" voice coil
  • 8 x 2" ultra compact fullrange 1.0" voice coil
  • Dimensions (H x W x D): 2350 x 350 x 450 mm(92.5x13.77x17.71 in)
  • Weight: 23,8 kg (52.5 lbs)

RCF EVOX J8 Specifications:

  • Acoustical Specifications
    • Frequency Response 3 dB: 40 Hz ÷ 20 Hz
    • Max SPL: 128 dB
    • Horizontal coverage angle: 120°
    • Vertical coverage angle: 30°
    • Fullrange: 8 x 2.0'', 1.0'' v.c
    • Woofer: 12'', 2.5'' v.c
  • Input/Output Section
    • Input signal: bal/unbal
    • Input connectors: XRL, Jack
    • Output connectors: XLR
    • Input sensitivity: -2 dBu/+4 dBu
  • Processor Section
    • Crossover frequencies: 220 Hz
    • Protections: Thermal, RMS
    • Limiter: Soft Limiter
    • Controls: Volume, Boost, Mic/Line
  • Amplifier Specifications
    • Total power: 1400 W PEAK
      • High frequencies: 400 W PEAK
      • Low frequencies: 1000 W PEAK
    • Total power: 700 W RMS
      • High frequencies: 200 W RMS
      • Low frequencies: 500 W RMS
    • Connections: Convection
  • Cabinet
    • Cabinet Material: PP Composite
    • Handles: 1 Top
    • Pole Mount/Cap: Yes
    • Grille: steel
    • Colour: Black, White
  • Physical Specifications
    • Height: 623/24.53 mm/inch
    • Width: 400/15.75 mm/inch
    • Depth: 460/18.11 mm/inch
    • Net Weight: 23.8/52.47 kg/lbs
