Product Overview

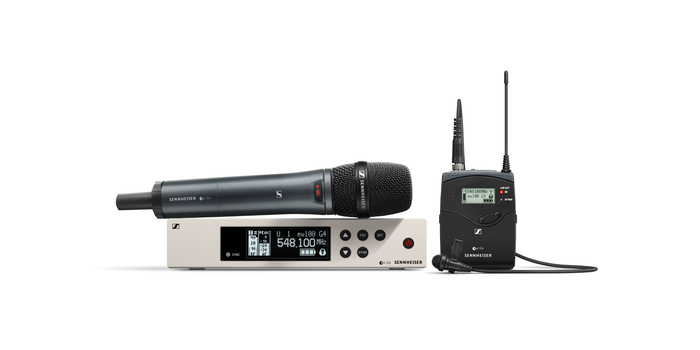

Sennheiser's ew 100-G4-ME2/835-S is part of the Sennheiser evolution wireless G4 lineup, and is a highly flexible system that can be used in any number of environments. It consists of a dynamic handheld microphone transmitter unit with mute switch, matched with an e 835 (cardioid, dynamic) mic capsule, along with a robust bodypack transmitter, plus easy clip-on microphone ME 2-II (omni-directional) with high speech intelligibility; great for daily use on stage. Versatile wireless systems for those who sing, speak, or play instruments. Featuring up to 42 MHz tuning bandwidth in a stable UHF range, plus fast, simultaneous setup of up to 12 linked systems. This great system comes in 3 versions, each based on operating frequency range:
- A1 (470 - 516 MHz)
- A (516 - 558 MHz)
- G (566 - 608 MHz)
Includes
- SKM 100 G4-S Handheld Transmitter with mute switch
- e 835 Mic Capsule
- SK 100 G4 Bodypack Transmitter
- ME 2-II Lavalier Microphone
- EM 100 G4 Rack-mount Receiver
- Rack kit
- Linking cable
- Mic clip
Features
- Engineered for professional live sound: Rugged all-in-one combo wireless system for singers, presenters and moderators.
- Dynamic handheld microphone e 835, robust bodypack transmitter and unobstrusive clip-on microphone ME2-II (omni-directional) with high speech intelligibility for daily use on stage.
- True diversity half-rack receiver in a full-metal housing with intuitive LCD display for full control.
- Easy and flexible wireless synchronization between transmitter and receiver via infrared.
- Fast frequency allocation for up to 12 receivers via new linking functionality.
- Up to 20 compatible channels
- Up to 42 MHz bandwidth with 1680 selectable frequencies, fully tunable in a stable UHF range
- Transmission Range: up to 100 meters / 300 feet
- High RF output power (up to 30 mW, depending on country regulations)
EM 100 G4 Receiver Specifications
- RF characteristics
- Modulation Wideband FM
- Available Frequency Bands:
- A1: 470 - 516 MHz
- A: 516 - 558 MHz
- G: 566 - 608 MHz
- Receiving frequencies
- Max. 1680 receiving frequencies, adjustable in 25 kHz steps
- 20 frequency banks, each with up to 12 factory-preset channels, no intermodulation
- 1 frequency bank with up to 12 programmable channels
- Switching bandwidth: up to 42 MHz
- Nominal/peak deviation: ±24 kHz / ±48 kHz
- Receiver principle: True diversity
- Sensitivity (with HDX, peak deviation): < 2.5 μV for 52 dBA
- Adjacent channel selection: Typically ≥ 65 dB
- Intermodulation attenuation: Typically ≥ 65 dB
- Blocking: ≥ 70 dB
- Squelch
- low: 5 dBµV
- middle: 15 dBµV
- high: 25 dBμV
- Pilot tone squelch: Can be switched off
- Antenna inputs: 2 BNC sockets
- AF characteristics
- Compander system: Sennheiser HDX
- EQ presets (switchable, act on line and monitor outputs)
- Preset 1: Flat
- Preset 2: Low Cut (-3 dB at 180 Hz)
- Preset 3: Low Cut/High Boost (-3 dB at 180 Hz, +6 dB at 10 kHz)
- Preset 4: High Boost (+6 dB at 10 kHz)
- Signal-to-noise ratio (1 mV, peak deviation): ≥ 110 dBA
- Total harmonic distortion (THD): ≤ 0.9 %
- AF output voltage (at peak deviation, 1 kHz AF)
- 6.3 mm jack socket (unbalanced): +12 dBu
- XLR socket (balanced): +18 dBu
- Setting range “AF Out”: 48 dB (3 dB steps)
- Overall device
- Temperature range: -10 °C to +55 °C
- Power supply: 12 V DC
- Current consumption: 300 mA
- Dimensions: Approx. 190 x 212 x 43 mm
- Weight: Approx. 980 g
Microphone Specifications
- e835 Handheld Mic
- Transducer principle: dynamic
- Frequency response: 40 - 16,000 Hz
- Pick-up pattern: cardioid
- Sensitivity (free field, at 1 kHz): 2.7 mV/Pa
- Nominal impedance (at 1 kHz): 350 Ω
- Min. terminating impedance: 1 kΩ
- Connector: XLR-3
- Temperature range: 0 °C to +40 °C
- Dimensions: ⌀ 48 x 180 mm
- Weight: 330 g
- ME2 Clip-On Mic
- Transducer principle: pre-polarized condensor microphone
- Pick-up pattern: omni-directional
- Sensitivity (free field, no load) (1 kHz): 17 mV/Pa
- Max. SPL at 1 kHz: 130 dB
- Frequency response: 50 to 18,000 Hz
- Equivalent noise level, A-weighted: 32 dB
- Connector: 3.5 mm jack
- Cable length: approx. 1.60 m
- Diameter of microphone: 10.5 mm
- Supply voltage: 10 V
