Teradek 10-0605
Cube 605 H.264 (AVC) Encoder, SDI & HDMI, Ethernet Only

OUR PART #:  TER-CUB-605

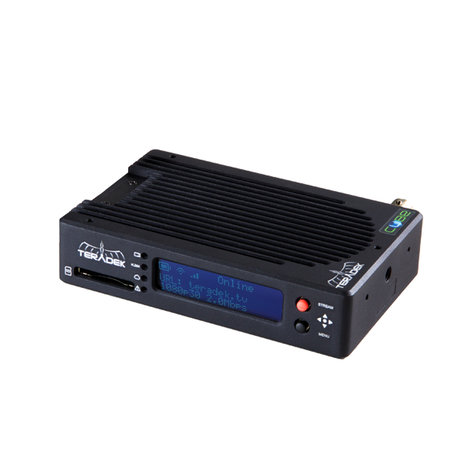

The Teradek Cube 605 H.264(AVC) Encoder SDI/HDMI GbE is manufactured in the USA and features 3G-SDI and HDMI inputs.
Learn More
Our Price: $1,728.28
List Price: $1,790.00
Write the first review.
Teradek 10-0605
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Related Products

The Teradek Cube 605 H.264(AVC) Encoder SDI/HDMI GbE is manufactured in the USA and features 3G-SDI and HDMI inputs. Cube’s rugged aluminum chassis and professional locking 2-Pin Connector connector ensure it’s ready for constant use in any environment.

The Cube 600 series encodes video at bitrates up to 15 Mbps for pristine quality in any application. When bandwidth is limited, adaptive bitrate allows Cube to automatically adjust and stream at the highest quality achievable.

iPad Monitoring for All
Cube 600 supports monitoring on up to 6 devices iOS devices simultaneously so clients, crew, and director can all see the action.

Built-in Color Grading
Support for 33 point 3D LUTs and Pomfort LiveGrade integration allows your creative team to monitor graded footage on set or off. Looks can be applied to the stream itself or controlled independently within the TeraView app.

All New User Interface
Cube's intuitive new user interface makes it easier than ever to configure your device. Pages load more quickly, configuration changes apply instantly, and all encoder statuses are updated dynamically.

Onboard Recording
Cube’s built-in SD card slot gives you the option to save high quality backup recordings for post-event editing.

Test Pattern Generator
A configurable test pattern generator allows you to test your stream without connecting a video source and prevents interruptions if video sync is lost.

Teradek Cube 605 Includes:

  • 1 x 2-pin Connector to 18W AC Power Adapter
  • 1 x Ethernet Cable
  • 1 x SDI Cable (BNC to BNC)
  • 1 x HDMI Cable (Full Type A to Full Type A)
  • 1 x 1-Year Warranty

Teradek Cube 605 Features:

  • Real-Time H.264 (AVC) Encoder
  • Ethernet and USB Interfaces (No WiFi)
  • HDMI and SDI Video Inputs
  • Camera Top Form Factor
  • Built-In Color Grading
  • On-Board SD Card Recording
  • Two-Pin Connector-Type Power Input

Teradek Cube 605 Specifications:

  • Item Number: 10-0605
  • Video Inputs:
    • 1 x SD/HD-SDI (75 Ohm BNC)
    • 1 x HDMI Type-A receptacle
  • Supported Resolutions:
    • 1080p 23.98/24/25/29.97/30/50/59.94/60
    • 1080i 50/59.94/60
    • 1080PsF 23/24/25/29/30
    • 720p 50/59.94/60
    • 576i
    • 480i
    • 480p (for HDMI input only)
    • 576p (for HDMI input only)
  • Video Processing:
    • Video Compression: H.264, Baseline, Main and High Profile
    • Supported Video Bitrate: 250 Kbps to 15 Mbps
    • Test Pattern Generator Support: Supports Custom Test Pattern
    • Video Format Conversion Support: Built in Video Scaler and Deinterlacer
    • Color Correction:
      • CDL/1024 1D LUT (supports 10-bit color)
      • 33x33x33 3D LUT (supports 10-bit color)
  • Protocol Support:
    • Network Protocols: TCP/IP, UDP, HTTP, DHCP, NTP, SSL, IGMP
    • Supported Video Transport Protocols:
      • RTMP
      • RTP, RTSP, RTSP over HTTP
      • MPEG-TS (MPEG-TS is an optional paid license)
    • Remote Control: Teradek Core
    • Software Or Platform Integration: Ustream, YouTube Live, Facebook & new Livestream
  • Audio Compression: AAC-LC, MPEG Layer 2
  • Audio Input:
    • Embedded Audio Input
    • Analog Line or Mic in, adjustable gain
  • Audio Output: Headphone output
  • Physical:
    • Dimensions (WxDxH): 4.75" x 3" x 1.1" [120.7 x 76.2 x 27.9mm]
    • Weight: 11.6oz [328.9g]
    • Construction: Milled Aluminum
    • Mountability: Can be mounted horizontally or vertically with 1/4" 20 mounting holes
  • Interfaces:
    • Http: WebUI for Configuration and Control
    • Configuration Interfaces:
      • OLED Display with joystick Navigation buttons
      • Feature-rich WebUI for configuration and control
    • Switches: On/Off and Reset Switch
    • Recording Storage: SD Card: Full Size
    • Mobile App: Vuer, Live:Air
    • Usb Interface Functionality: Powered USB 2.0 host port
  • Ethernet: 10/100/1000 BASE-T Gigabit
  • Usb: USB 3G/4G Modem support
  • Power Input: 2 Pin Connector Power input
  • Nominal Power Consumption: 7W (no WiFi)
  • Auxilary Power Input: 6-28V DC
