ikan Corporation BZ400-PRO
Blitz 400 Pro Wireless Video Kit with Batteries & Charger

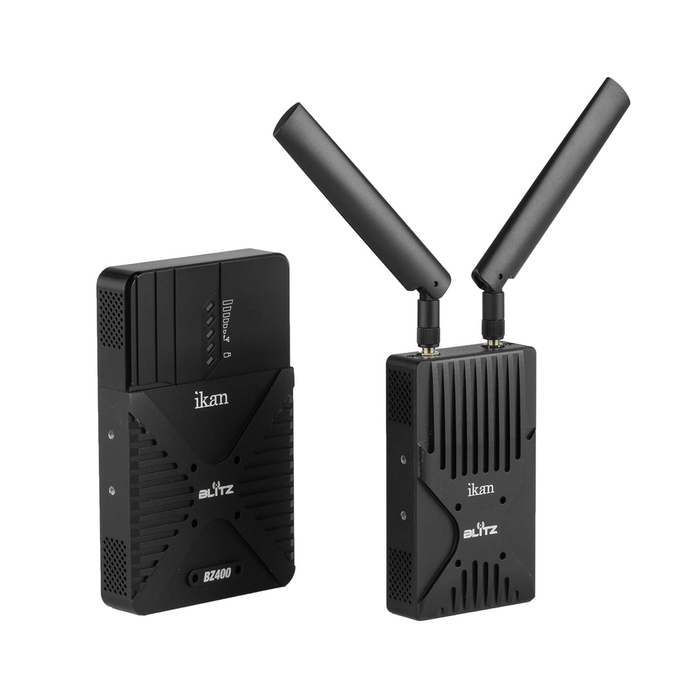

The ikan Corpotation BZ400-PRO is a Blitz 400 Pro Wireless Uncompressed 3G-SDI/HDMI Video Kit with batteries and a charger. The Ikan Blitz 400 PRO is the latest update to the Blitz 400 product line. With the Pro version, we have redesigned the body of the transmitter and receiver to be compatible with Ikan’s Quick Mount system. In addition, we now include batteries and a charger in the package so the system is ready to go straight out of the box. The Blitz features uncompressed, zero delay wireless video in a lightweight and affordable package. With a 400 foot range, this system is perfect for various types of uses such as with wireless follow focus systems as well as gimbal and Steadicam operators. Anytime you need to be untethered from the camera, the Blitz 400 PRO can do the job.

ikan Corpotation BZ400-PRO Includes:

• 1 x Articulating Arm
• 1 x Clamp
• 1 x Dual Sony L Series Battery Charger
• 1 x Hard Case
• 1 x Receiver
• 1 x Shoemount Adapter For Transmitter
• 1 x Transmitter
• 2 x 5GHz Antennas (SMA Female)
• 2 x P-Tap To Lemo Compatible Cables
• 2 x Sony L Series Batteries
• 2 x Sony L Series Battery Plates (Installed)

ikan Corpotation BZ400-PRO Features:

• Transmits Uncompressed w/ Zero Delay Wireless Video
• Designed with Ikan's Quick Mount System
• 3G-SDI and HDMI Inputs and Outputs
• Up to 984 ft. Line of Sight Range
• Best Performance within 400 ft. Range
• Supports Sony L Series Batteries
• Includes 2 Sony L Series Batteries and 1 Dual Charger
• Supports up to 4 Receivers connected to 1 Transmitter

ikan Corpotation BZ400-PRO Specifications:

• Interface:
• Transmitter:
• 3G-SDI Input (BNC Female)
• HDMI Input (Type A Female)
• 2 x Antenna Ports (RF-2 SMA Male)
• DC Input (4 pin LEMO Female)
• Receiver:
• 3G-SDI Input (BNC Female)
• HDMI Output (Type A Female)
• DC Input (4 pin LEMO Female)
• Input Voltage (TX/RX): 7 - 36V DC
• Power Consumption (TX/RX): <6.5W
• Dimensions (TX/RX): 115 x 67 x 23 mm
• Weight:
• Transmitter: 270g
• Receiver: 355g
• Input Video Format:
• HDMI: 525i, 625i, 720p 50/59.94/60, 1080i 50/59.94, 1080p 23.98/24/25/29.97/30/50/59.94/60
• SDI: 3G, HD, and SD-SDI (Auto Selected)
• SMPTE-259/274/292/296/372/424/425
• Output Video Format:
• HDMI: 525i, 625i, 720p 50/59.94/60, 1080i 50/59.94, 1080p 23.98/24/25/29.97/30/50/59.94/60
• SDI: 3G, HD, and SD-SDI (Auto Selected)
• SMPTE-259/274/292/296/372/424/425
• Input Audio Format: SDI Embedded 4 Channel 24-bit / 48KHz
• Audio Output: SDI Embedded 4 Channel 24-bit / 48KHz
• Signal Indicators:
• Transmitter:
• Power: Green
• Video: Yellow
• Receiver:
• Power: Green
• Wireless Signal 5 x Green
• Video: Yellow
• Frequency Bands (TX/RX): 5.1 - 5.9 GHz
• Modulation Mode (Tx/RX): OFDM 16QAM
• Transmission Power: Max 18 dBm
• Receiver Sensitivity: -75 dBm
• Band: 40MHz
• Operating Temeperature (TX/RX):
• Operating: 0°C ~ 40°C
• Storage: -20°C ~ 60°C
• Compliance (TX/RX): FCC, CE
• Shipping Dimensions: 16.2" x 6.2" x 17.5" (41.3 x 15.8 x 44.5 cm)
• Shipping Weight: 13 lbs (5.8 kg)
• UPC Code: 847983022281
