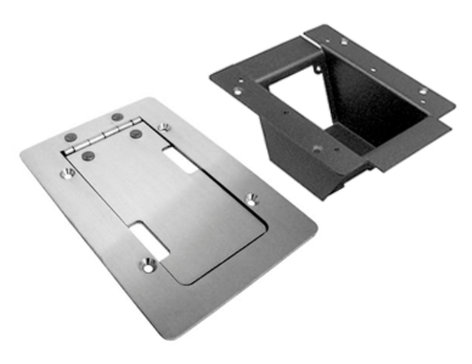

Ace Backstage 025SS Mini Stage Pocket, Stainless Steel

The 025SS from Ace Backstage is a rugged, mini stage pocket designed to conceal up to (4) CONNECTRIX connectors, the two panel positions in the pocket body utilize staggered MP series CONNECTRIX panels. With this stainless steel stage pocket you can conceal AC power, audio, switches, etc under the floor surface with the flush mounted bezel and lid that are easily installed into raised floors with or without a back box. Ace Backstage's 025SS has a compact rugged, high utility, high density design with a compact capacity inter-changeable panel system which permits easy custom connector/panel configurations. The lid/bezel is 1/8” steel with a footprint of 4-3/4” x 7”. The hinge is brushed brass or stainless steel and will not rust or discolor.

The Mini Stage Pocket Lid and Mounting Flange assembly is available in 2 oven-cured powder coat finishes plus brushed solid brass. The Lid and Mounting Flange mounts to the Mini Pocket Body which easily installs in raised floors with or without a back box. Two panel positions in the pocket body permit a wide array of connection possibilities. While the space in the pocket is compact, a careful selection of connectors can satisfy requirements for audio, video, computer or 110VAC connectivity.

The small footprint and compact size sets limits for the combination of connectors that may be used in a single pocket. Using the CONNECTRIX system in various optional 2-panel combinations for large and small connectors a surprising array of connections can be accomplished. A single Mini Pocket may accommodate only one or two larger connectors (mic, speaker, VGA, A.C. etc.). When using smaller connectors four or more connections are possible. When selected large and small connectors are stategically placed in the opposing panels, 3-4 connectivity terminations can easily be accomplished.

Ace Backstage 025SS Includes:

• (1) Vertical, Slant Panel Style, Stage Pocket
• (1) Lid & Trim Bezel
• (4) Installation Screws

Ace Backstage 025SS Specifications:

• ITEM #: 025SS
• Finish: Electrostatic applied powercoat
• Material:
  • 11ga CRS Lid & Bezel
  • 16ga CRS Pocket Body
• Lid and Flange Measurement (L x W x D): 4.75” x 7.0”x 0.187”
• Body Measurement (L x W x D): 2.688” x 4.935” x2.245”
• Floor Cutout Size: 2.88” x 5.505”
• Cableway Slot: 3/8” x 1.25” (x2)
• Powder Coat Finishes:
  • Textured Black Decorator (BK)
  • Antique Coppervein (CV)
• Special Order Lid & Bezel:
  • Solid Brass (BR)
  • Stainless Steel (SS)
• Panel Placement: Vertical
• Compatible ACE Panel Series: MP Series
