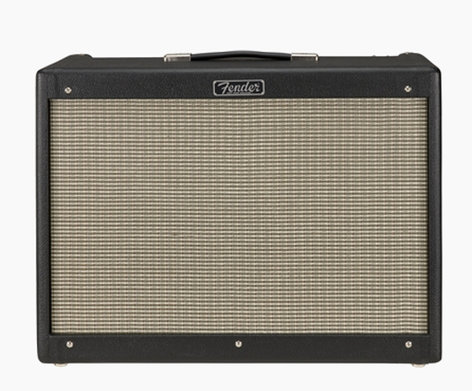

Fender Deluxe IV
Hot Rod Black, 120V Amplifier

OUR PART #:  HOT-ROD-DELUXE-IV

The Fender Hot Rod Deluxeâ„¢ IV is a legendary amplifier that has been the heart of many guitarists' rigs.
Learn More
Our Price: $799.99
Write the first review.
Fender Deluxe IV
Qty:
In Stock

Related Products

The Fender Hot Rod Deluxeâ„¢ IV is a legendary amplifier that has been the heart of many guitarists' rigs. The updated Hot Rod Deluxe IV is a 40-watt combo amplifier featuring a smoother-sounding spring reverb and modified preamps circuitry for increased overdriven note definition. Inside, it features a "12" Celeston A-Type speaker, plus a lightweight pine cabinet to make load-in and load-out easier.

Fender Hot Rod Deluxeâ„¢ IV Includes:

  • Two-button footswitch
  • Fitted cover

Fender Hot Rod Deluxeâ„¢ IV Features:

  • 40 watts; Normal Drive and More Drive channels
  • Celestion 12" A-Type speaker
  • Modified preamp circuitry for increased ovedrivennote definition
  • Spring reverb modified for improved smoothness
  • Lightweight pine cabinet

Fender Hot Rod Deluxeâ„¢ IV Specifications:

  • Model #: 2231200000
  • Electronics:
    • Voltage: 120V
    • Wattage: 40 Watts
    • Controls: Presence, Reverb, Master Volume, Middle, Bass, Treble, Drive Select Switch, Drive Volume, Bright Switch
    • Channels: Three - Selectable (Normal, Drive and More Drive)
    • Inputs: Two - (1/4", Input 2 operates at -6dB)
    • Speaker Jack: Two 1/4" Parallel (Internal and External)
    • Effects: Reverb
    • Effects Loop: 1/4" - (Preamp Out, Power Amp In)
  • Hardware:
    • Cabinet Material: Lightweight Pine
    • Amplifier Covering: Black Textured Vinyl
    • Grille Cloth: Lightly-Aged Silver
    • Amplifier Jewel: Red Jewel
    • Front Panel: Black
    • Handle: Molded Plastic Strap with Nickel-Plated Caps
  • Speakers: One - 12" Celestion® A-Type
  • Total Impedance: 8 ohms
  • Preamp Tubes: 3 x 12AX7
  • Power Tubes: 2 x 6L6
  • Rectifier: Solid State
  • Dimensions (HxDxW): 18.75" x 10.5" x 23.5" (47.6 x 26.7 x 59.7 cm)
  • Amp Weight: 41 lbs. (18.59 kg)
