Product Overview

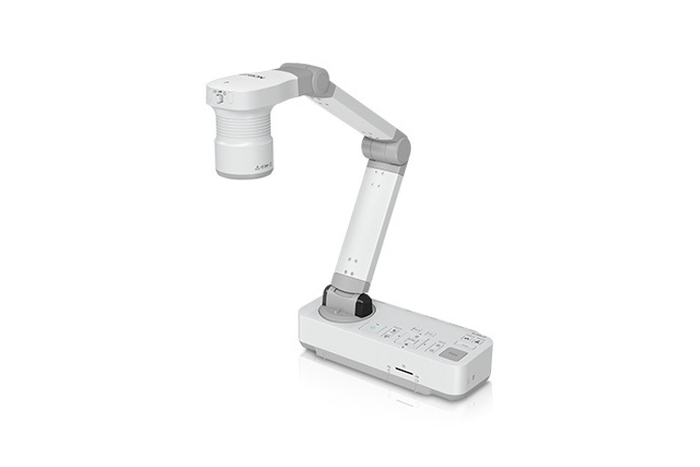

The Epson® DC-21 Document Camera allows you to engage students like never before. This portable performer easily captures and displays books, 3D objects and experiments with amazing clarity, thanks to HD 1080p resolution, a large imaging sensor and HDMI® connectivity. Share the finest detail with 12x optical zoom and 10x digital zoom. Or, display magnified images with the microscope adapter. Record audio with video using the built-in microphone. At 30 fps, video playback is seamless. And, there are convenient Freeze and Capture buttons. Plus, you can save lessons to an SD card or computer.
Epson DC-21 Includes:
- DC-21 Document Camera
- AC power adapter with cord
- USB cable
- Application software CD
- Remote control
- (2) AA batteries
- VGA cable
- Microscope adapter
- User's Guide CD
- Quick Start Guide
- Warranty card
- Soft carrying case
Epson DC-21 Features:
- Deliver powerful lessons with extraordinary close-up detail: 10x digital zoom plus 12x optical zoom
- Astounding clarity and color: HD 1080p output resolution
- Advanced connectivity: HDMI digital connectivity for high-definition video
- Share magnified images: Microscope adapter included; supports many standard microscopes
- Record and share audio/video lessons: Built-in microphone and included software; one-touch A/V recording
- Ultra smooth video performance: 30 frames per second (fps) at a 1080p frame rate
- Capture, save and present images: Supports SD cards and computers
- Convenient Freeze and Capture buttons: Easily pause and/or resume the image
- Epson Warranty: Two-year limited warranty, Epson Road Service Program , and Epson PrivateLine® dedicated toll-free support (U.S. and Canada only)
- Eco Features:
- RoHS compliant
- Recyclable product
- Epson America, Inc. is a SmartWay Transport Partner
Epson DC-21 Specifications:
- Model:
- Camera:
- Output Signals / Resolution:
- VGA: SXGA (1280 x 1024), XGA (1024 x 768),WXGA (1280 x 800), HD (1360 x 768), 1080p (1920 x 1080)
- USB: VGA, SVGA, XGA, SXGA, WXGA, 720p, 1080p
- HDMI: 480p/720p/1080p
- Frame Rate: 30 fps max.
- Imaging Element:
- Pick-up device: 1/2.7" CMOS sensor
- Effective pixels: 1920 x 1080, 2 megapixels
- White Balance: Auto
- Exposure: Adjustable
- Brightness: Adjustable
- Lighting Source:
- Upper: White LED x 2
- Brightness: 250 lx or above @ A3 shooting area
- Optics:
- Lens: F-number: 3.4-5
- Capture Area: Max: 11.7" x 20.7" (at 1080p); 11.7" x 16.5" (at XGA)
- Zoom: 10x digital zoom, 12x optical zoom
- Focus: Automatically with one-touch button
- Iris: 250 lx or above @ A3 shooting area
- Functions:
- Image Rotation: Camera Head Rotation: 180° (Horizontal/Vertical)
- Internal Memory: SD card slot (SD/SDHC only)
- User Functions: Zoom, Freeze, Auto Focus, Focus Lock, LED, Brightness, Contrast, Negative, Black and White, Split Screen, Playback, Video Capture, Digital Scroll (pan/tilt), Flicker Reduction, Image Rotation, Source (PC/ DC), Auto-detect Aspect, Video Recording, Video Playing
- Interface:
- Input Terminal:
- HDMI
- Computer In (VGA)
- Display Out (VGA)
- USB-B (for connection to PC/Mac®)
- SD Card Slot
- Application Software:
- Language: 13 languages
- Driver: TWAIN (for Windows)
- Functions: Rotation, Zoom (+, -, selectable, x1), Auto Focus, Freeze, Record, Time-lapse, Picture Control (Brightness, Contrast, White Balance, Auto White Balance)
- Saving Format:
- Still Image: JPG, BMP, PNG
- Video (Windows): AVI
- Video (Mac): MOV
- Other: PDF, EIT
- General:
- Operating Systems: Windows® 7, Windows 8, Windows 10, Windows Vista®, Mac OS® X 10.7.x, 10.8.x, 10.9.x, 10.10.x, 10.11.x
- Temperature: 41° to 95°F (5° to 35°C)
- Humidity: 20 - 80%
- Weight: 5.8 lb
- Security: Kensington® lock support, Metal security bar, Security mounting holes
- Dimensions -Doc Camera: 10.6" x 19.7" x 12.9"
- Power:
- Power Supply Voltage: 100 - 240 V AC
- Rated Frequency: 50/60 Hz
- Power Consumption:
- 13 W (Operating)
- < 0.5 W (Standby Mode)
- Output Voltage of AC Power Adapter: DC 12 V
