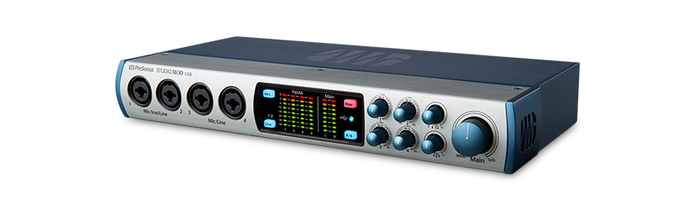

PreSonus Studio 1810
18x8 USB 2.0 Audio Interface

OUR PART #:  STUDIO-1810

The Studio 1810 from PreSonus is a high-quality USB audio interface that achieves superior sound thanks to the best sounding preamps available...
Learn More
Our Price: $399.95
List Price: $499.95
You save 20%!
Write the first review.
PreSonus Studio 1810
Qty:
In Stock

Related Products

The Studio 1810 from PreSonus is a high-quality USB audio interface that achieves superior sound thanks to the best sounding preamps available, as well as top-quality digital converters, and is at home in DJ/Live gigs as well as in the studio. It's I/O consists of 18 flexible inputs, 8 outputs, cue mix monitoring on the first of 2 headphone outputs, and onboard DSP monitor mixer which is integrated into both Studio One® Artist and UC Surface software. The Studio 1810 operates at a sampling rate of up to 192 kHz, delivering ultra-high-definition mixing and recording.

XMAX Mic Preamps
These Class A preamps offer incredibly high headroom, deep lows as well as smooth highs, and a high-quality, rich overall sound, letting you hear every breath, every transient, and all the detail in your recordings – ideal for both vocal production and sampling.

High-grade digital converters
Located on every input and output, these provide 115 dB of dynamic range, enabling you to capture complex musical harmonics smoothly, naturally, and with no audible distortion.

All the inputs you need
Along with the XMAX mic preamps, the first 2 inputs include instrument preamps which let you directly connect guitars and basses with no D.I. box necessary. Line-level inputs with 40 dB of gain for low-level line devices are featured on all 4 of the combo connections. Four direct-to-ADC balanced line inputs work great for hooking up synthesizers, outboard preamps, and channel strips. And it's equipped with 8 channels of ADAT Optical input (4 channels at 96 kHz), allowing you to expand your inputs with an 8-channel converter like PreSonus' premium-quality DigiMax DP88 (sold separately), so you can grow your recording system right along with your synth collection.

In the studio and on the gig


You can choose between 2 mixes with a button press, using the Cue Mix A/B feature located on the first of 2 high-powered headphone outputs. This provides the flexibility you'll need for use during live DJ performances as well as studio collaboration. In addition to L/R main outputs with front-panel Mute and level controls, you get 4 balanced line outputs for monitor mixing, plus stereo S/PDIF digital I/O. All line-level outputs are DC coupled, so they're able to send control voltages. The unit's 18x6 monitor mixer lets you create 3 stereo near-zero-latency monitor mixes, and its integral MIDI I/O enables connection to a keyboard, sound module, or control surface too, so this versatile interface can easily be the heart of your studio.

World-class recording software included
The Studio 1810 interface is great when working with virtually any Mac®- or Windows®-based audio-recording software, but especially shines when used with the included PreSonus Studio One® Artist DAW.

PreSonus Studio 1810 Features:

Input/Output

  • Simultaneous I/O up to 18 inputs/8 outputs (8x6 at 192 kHz)
  • (2) mic/instrument/line inputs with XMAX Class A mic preamps
  • (2) mic/line inputs with XMAX Class A mic preamps
  • (4) balanced ¼” TRS direct-to-ADC line inputs
  • (8) channels of ADAT Optical input (4 channels at 96 kHz)
  • (2) balanced ¼" TRS main outputs
         › DC coupled for sending control voltages
  • (4) balanced ¼" TRS line outputs for monitor mixing
         › DC coupled for sending control voltages
  • (2) stereo headphone outputs with the same mix or independent mixes
  • MIDI In/Out
  • Stereo S/PDIF digital I/O
  • (1) USB 2.0 port

Integrated Software

  • Studio One Artist for Mac and Windows
  • UC Surface control software for Mac, Windows, iPad®, and Android™

Meters, Controls, and Features

  • 18x6 onboard DSP monitor mixer
  • Studio One Artist
  • Front-panel mute and level controls for main outputs
  • True +48V phantom power for condenser microphones (global)
  • (6) ladder-style 8-LED level meters (4 input, 2 main output)

Digital

  • 24-bit resolution
  • 44.1, 48, 88.2, 96, 176.4 and 192 kHz sampling rates

Physical

  • Road-rugged construction with all-metal chassis and metal knobs

PreSonus Studio 1810 Specifications:


Computer System Requirements

Below are the minimum computer-system requirements.

  • Mac
    • Mac® OS X 10.8.5 64-bit or later
    • Intel® i-series 2 GHz multicore processor (or AMD equivalent) or faster
    • 4 GB RAM (8 GB or more recommended)
  • Windows
    • Windows® 7 x64/x86 SP1 + platform update, Windows 8.1 x64/x86, Windows 10 x64/x86
    • Intel i-series 2 GHz multicore processor (or AMD equivalent) or faster
    • 4 GB RAM (8 GB or more recommended)
  • Mac and Windows Systems
    • USB 2.0 port
    • 32 GB hard disk space
    • PreSonus Universal Control 2.0 or higher
    • Monitor with 1366x768 resolution (high-dpi monitor recommended)
    • Multitouch-enabled monitor required for touch operation

Technical Specifications

  • General:
    • Sample Rates: 44.1, 48, 88.2, 96, 176.4, 192 kHz
    • Converter Resolution: 24-bit
    • Converter Dynamic Range: 114 dB
  • Microphone Inputs:
    • Maximum Level: +16 dBu, min gain
    • Gain Range: 80 dB
    • Frequency Response: 20 Hz - 20 kHz (unity gain)
    • Dynamic Range: 110 dB (A-wtd, min gain)
    • THD + N: 0.005% (1 kHz, 0dBu, unity gain)
    • EIN: -128 dBu (A-wtd, 20 kHz BW, Rs=150O, max gain)
    • Input Impedance: 1400 Ohms
    • Phantom Power: 48V (>10 mA per channel)
  • Line Inputs:
    • Maximum Level: +21 dBu (balanced, min gain)
    • Gain Range: 40 dB
    • Frequency Response: 20 Hz - 20 kHz (unity gain)
    • Dynamic Range: 112 dB (A-wtd, min gain)
    • THD + N: 0.005% (1 kHz, +18 dBu, min gain)
    • Input Impedance: 10 kOhms
  • Instrument Inputs:
    • Maximum Level: +15 dBu (unbalanced, min gain)
    • Gain Range: 80 dB
    • Frequency Response: 20 Hz - 20 kHz (min gain)
    • Dynamic Range: 112 dB (A-wtd, min gain)
    • THD + N: 0.020% (1 kHz, +10 dBu, min gain)
    • Input Impedance: 1 MOhm
  • Main Outputs:
    • Type: ¼" TRS female, DC Coupled
    • Maximum Level: +18 dBu, balanced
    • Frequency Response: 20 Hz - 20 kHz (unity gain)
    • Dynamic Range: 108 dB (A-wtd, unity gain)
    • THD + N: 0.004% (1 kHz, -1 dBFS, unity gain)
  • Line Outputs
    • Type: ¼" TRS female, DC coupled
    • Maximum Level: +18 dBu, balanced
    • Frequency Response: 20 Hz - 20 kHz
    • Dynamic Range: 108 dB (A-wtd, -60 dBFS)
    • THD + N: 0.004% (1 kHz, -1 dBFS, unity gain)
  • Headphone Outputs:
    • Maximum Power: 150 mW/channel (60 Ohm load)
    • Frequency Response: 20 Hz - 20 kHz (unity gain)
    • Dynamic Range: 103 dB (A-weighted, 1 kHz, unity gain)
    • THD + N: 0.250% (1 kHz, 150 mW, unity gain)
    • Impedance Working Range: 32 Ohms to 600 Ohms
  • Physical:
    • Dimensions (H x W x D): 1.75" x 12.5" x 5.5" (44 x 317 x 140mm)
    • Weight: 3.2 lbs. (1.45 kg)
