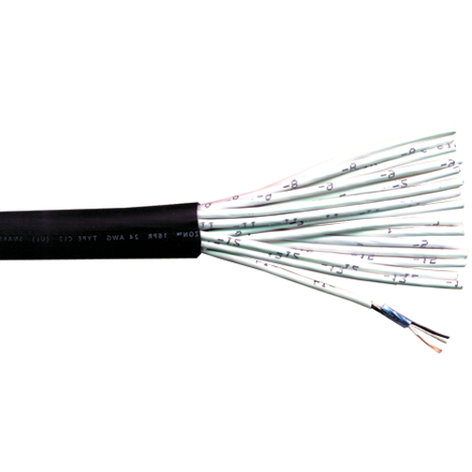

RapcoHorizon Music SN2-IJIS
2-Pair, 24 AWG Audio Snake Cable, Sold by the Foot

OUR PART #:  SN2-IJIS

The RapcoHorizon SN2-IJIS is an audio snake wire that features an overall CL2 PVC jacket and 2 pairs of 24 AWG polypropylene insulated, individually shielded...
Learn More
Our Price: $0.88
Write the first review.

Related Products

The RapcoHorizon SN2-IJIS is an audio snake wire that features an overall CL2 PVC jacket and 2 pairs of 24 AWG polypropylene insulated, individually shielded, individually jacketed, stranded bare copper conductors.

RapcoHorizon SN2-IJIS Specifications:

  • Conductor Gauge: 24 gauge
  • Shield: Alum/polyester tape and tinned copper drain
  • Shield Coverage: 100%
  • Jacket: Matte PVC
  • O.D.: 0.340"
  • Lay Length: 5"
  • Capacitance: 25 pF/ft. @ 1 kHz
  • Cond.-Shield Capacitance: 45 pF/ft. @ 1 kHz
  • Characteristic Impedance: 60 Ohms nominal
  • D.C. Resistance @ 20°C: 24.5 Ohms/1000 ft

To be the first to review this item, click here.

Add to Cart

We're sorry, only of this item available



Call a Sales Pro at 800-356-5844 for more information
