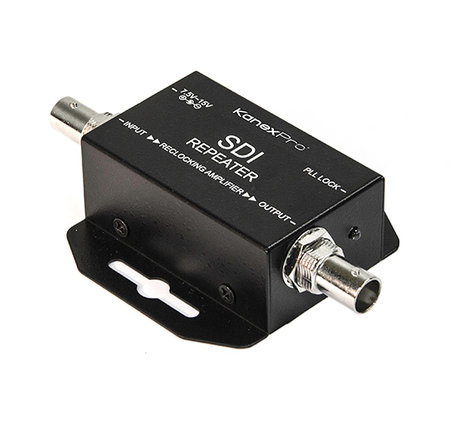

KanexPro SDI-HDRPTPRO
3G-SDI Repeater

OUR PART #:  KAN-SDI-HDRPTPRO

The KanexPro 3G/SDI/HD-SDI Repeater extends AV signals at longer runs up to 300 meters using single RG6 cable.
Learn More
Our Price: $118.32
List Price: $129.95
You save 9%!
Write the first review.
KanexPro SDI-HDRPTPRO
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

The KanexPro 3G/SDI/HD-SDI Repeater extends AV signals at longer runs up to 300 meters using single RG6 cable. The repeater also embeds audio up to 7.1 channels passing ancillary data. The KanexPro KAN-SDI-HDRPTPRO is Perfect for surveillance systems, rental & staging facilities, post-production, TV studio, digital cinema, or other A/V applications.

KanexPro SDI-HDRPTPRO Features:

  • Extend and repeat SDI signals up to 300 meters
  • Auto–input detection for 3G/HD/SD-SDI
  • Supports full HD 1080p/60
  • Built-in signal equalizer & re-clock function
  • 3G mode length up to 130m
  • HD mode length up to: 170m
  • SD mode length up to 300m
  • Audio format support up to 16-channel@24 bit, 48KHz
  • Compact & rugged housing
  • Locking power supply & mounting ears
  • Micro-USB Port for firmware update

KanexPro SDI-HDRPTPRO Specifications:

  • MPN: SDI-HDRPTPRO
  • UPC: 813982020931
  • Input: 1 x SDI
  • Output: 1 x SDI
  • Supported Video Resolutions:
    • 3G: 1080p60 / 59.94 / 50
    • HD: 1080p30 / 29.97 / 25 1080i60 / 59.94 / 50
    • 720p60 / 59.94 / 50
    • SD: 625i (PAL) / 525i (NTSC)
    • 720p60 / 59.94 / 50?SD: 625i (PAL) / 525i (NTSC)
  • SDI formats: 3G-SDI (SMPTE 424M) HD-SDI (SMPTE 292M)SD-SDI (SMPTE 259M)
  • Cable Equalization:
    • HD: 200m of RG6
    • 140m of RG59
    • 3G: 140m of RG6 100 m of RG59
  • SDI formats: 3G-SDI, HD-SDI, SD-SDI
  • Supported Audio Formats: up to 16-channels,24-bit@48KHz
  • Power: DC in: 7.5V ~ 15V
  • Regulatory Approvals: FCC, CE, and UL
  • Warranty: 3-Year parts and labor

NOTE: All specifications are subject to change without notice.
