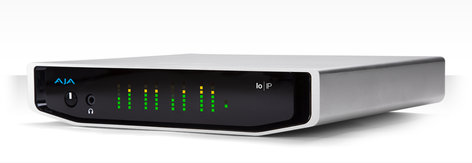

AJA IO-IP Video And Audio I/O Over IP For Thunderbolt 3 Image 1
AJA IO-IP Video And Audio I/O Over IP For Thunderbolt 3 Image 2
AJA IO-IP Video And Audio I/O Over IP For Thunderbolt 3 Image 3
AJA IO-IP Video And Audio I/O Over IP For Thunderbolt 3
No longer available at Full Compass
We've left this page up for reference only.

Questions? Contact our
Sales and Service Pros for expert
advice and package pricing.

800-356-5844

Email customer service

Product Overview

The AJA Video Systems IO-IP is a portable Thunderbolt™ 3 ingest and playback device for professional HD video and audio over IP, bridging 10 GigE to the most popular creative software applications.

Io IP has all the portable benefits of the Io family line with two Thunderbolt 3 ports for flexibility. It works with AJA's Control Room, Control Panel software and SDK tools, providing support for leading content creation applications, such as Adobe Premiere® Pro, Apple FCP X, Avid Media Composer®, FilmLight products and more.

Designed as a flexible platform with support for SMPTE 2022-6 and 2022-7 uncompressed IP video and audio, and SMPTE 2110 to come soon, Io IP offers you the flexibility to keep current as the IP transition proceeds.

Io IP brings the highest quality 4K/UltraHD, 2K, HD, and SD video and audio over IP to computers running Mac or Windows Operating Systems. Io IP can also support 4K/UltraHD p60 (2SI) capture or playback, via SMPTE ST 2110-23.

Io IP is also supported through the very same SDK as the rest of the KONA family, making it straight forward for developers to make the transition to Video over IP.

NOTE: NDI is supported on Io IP in the same way as it is supported on KONA 4, Io 4K Plus etc., courtesy of running Newtek Connect.

Features

  • Transition Seamlessly
  • Universal Compatibility: Thunderbolt™ 3 via USB-C
  • Throughput
  • Flexible Monitoring
  • Compatible
  • HDR
  • Standards Matter, Move Forward Together
  • SFP Module Compatibility:
    • Finisar FTLX1471D3BCL (for single mode 1310nm)
    • Arista Networks SFP-10G-SR Compatible 10GBASE-SR
    • Generic 850nm 300m DOM Transceiver (for multi-mode 850nm)

Specifications

  • Video Formats:
    • (HD) 1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
    • (HD) 1080PsF 23.98, 24, 25, 29.97, 30
    • (HD) 1080i 25, 29.97
    • (HD) 720P 50, 59.94, 60
    • (SD) 625i 25
    • (SD) 525i 29.97
    • NOTE: High Frame Rate capabilities are dependent on host system attributes. Not all systems and configurations will support all frame rates
  • Media Transport Interfaces:
    • Recommended SFP+ modules:
      • Finisar FTLX1471D3BCL (for single mode 1310nm)
      • Arista Networks SFP-10G-SR Compatible 10GBASE-SR
      • Generic 850nm 300m DOM Transceiver (for multi-mode 850nm)
    • SMPTE 2022-6, 2022-7: 2 x SFP+ Cages - SFPs not included
  • Video Input IP: SMPTE 2022-6, 2022-7 (Up to 4 channels input)
  • Video Output IP: SMPTE 2022-6, 2022-7 (Up to 4 channels output)
  • Video Output Digital HDMI v2.0:
    • 30/36 bits/pixel, RGB or YUV, 6 Gbps per color component
    • HDR 10 Support - HDR Infoframe metadata, compatible with HDMI 2.0a/CTA-861.3
    • HLG Support - compatible with HDMI 2.0b/CTA-861-G* *HLG support is application dependent. Check with your software manufacturer for compatibility
    • NOTE: Bit depth support is application dependent. Check with your software manufacturer for compatibility
  • Audio Input IP: Up to 16-Channel embedded audio, 24-bit per channel, 48 kHz synchronous
  • Audio Inputs Analog:
    • 4-Channel, 24- and 16-bit A/D analog audio, 48 kHz sample rate, balanced, using industry standard 8 x XLR on DB-25 breakout cable (cable not included)
    • +24 dBu full scale digital (0dBFS)
    • +/- 0.2 dB 20 to 20 kHz frequency response
    • Input is supported across Ch. 1-4
  • Audio Output IP: Up to 16-Channel embedded audio, 24-bit per channel, 48 kHz synchronous
  • Audio Output Digital: 8-Channel HDMI embedded audio, 48 kHz sample rate, synchronous
  • Audio Outputs Analog:
    • 4-Channel, 24-bit D/A analog audio, 48 kHz sample rate, balanced, using industry standard 8 x XLR on DB-25 breakout cable (cable not included)
    • +24 dBu full scale digital (0dBFS)
    • +/- 0.2 dB 20 to 20 kHz frequency response
    • Output is supported across Ch. 5-8
  • Downstream Keyer: Supports graphics with alpha channel over video, matte or framebuffer, or framebuffer content over incoming video or matte
  • Reference and LTC I/O: 1 x BNC assignable to Reference video or LTC input
  • Reference:
    • Analog Color Black (1V) or Composite Sync (2 or 4V) or HD Tri-Level Sync (1V)
    • Reference input is terminated into 75 ohms when Genlock is set to Ref In
  • Electrical Interface: Thunderbolt 3 (2 x)
  • Machine Control:
    • 9-pin D-connector pinout is as follows:
      • 1: GND
      • 2: RX-
      • 3: TX+
      • 4: GND
      • 5: No Connection
      • 6: GND
      • 7: RX+
      • 8: TX-
      • 9: GND
      • Shell: GND
    • RS-422, Sony 9-pin protocol
  • Size (WxDxH): 8.74” x 8.11” x 1.65” (222 x 206 x 42mm)
  • Weight: 3.3 lbs (1.5 kg)
  • Power (Device Only): 10-20V, 33W typical, 38W max, 72W max with USB-C power delivery to external devices
  • Environment:
    • Safe Operating Temperature Range: 0° to 40°C (32°F to 104°F)
    • Safe Storage Temperature (Power OFF): -40° to 60°C (-40° to 140°F)
    • Operating Relative Humidity: 10-90% noncondensing
    • Operating Altitude: < 3,000 meters (< 10,000 feet)
