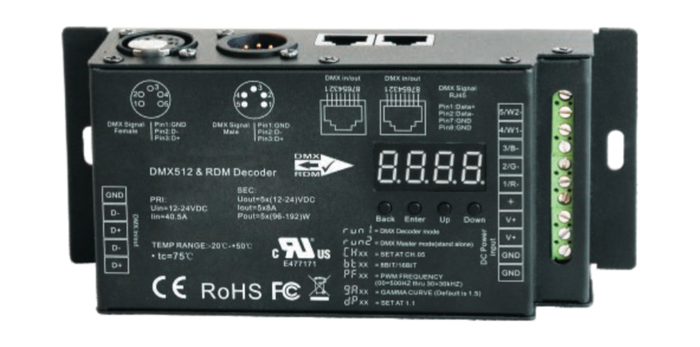

Rosco Laboratories RoscoLED Variable PWM DMX Decoder
5 x 8A DMX Decoder for Rosco LED Products

OUR PART #:  293222610001

This RoscoLED Variable PWM DMX Decoder 5 x 8A (Item Code: 293222610001 ) gives you control for vibrant, versatile lighting effects.
Learn More
Our Price: $144.79
List Price: $148.50
Write the first review.
Rosco Laboratories RoscoLED Variable PWM DMX Decoder
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Related Products

This RoscoLED Variable PWM DMX Decoder 5 x 8A (Item Code: 293222610001) gives you control for vibrant, versatile lighting effects. This model is designed for the most demanding lighting applications, and offers both DMX and Stand-Alone Modes for controlling RoscoLED products – with or without a DMX console. RoscoLED DMX Decoders also provide lighting professionals the means to vary the Pulse Width Modulation and Gamma Curve of the unit for complete control of their RoscoLED products.

NOTES: When the RoscoLED Variable PWM DMX Decoder is in DMX Mode, DMX from a DMX512 console will be used as the data source for control. When in Stand Alone Mode, DMX is not required. The on board control panel can be used for dimming control or preprogrammed effects sequences. Remember, when changing between modes it will be necessary to cycle power to the device (disconnect power and re-energize).

Safety Notes:

  • Please read your product manual before attempting to use your Decoder.
  • DO NOT install with power applied to device.
  • For indoor use only.  DO NOT expose the device to moisture.
  • Additional notes and wiring diagrams in the documentations tab above.

RoscoLED Variable PWM DMX Decoder Features:

  • 8-Bit and 16-Bit modes
  • Adjustable Dimming curve Gamma: 0.1 to 9.9
  • Easy-to-read digital display

RoscoLED Variable PWM DMX Decoder Specifications:

  • Item Code: 293222610001
  • Input Voltage: 12 ~ 24VDC
  • Output Current: 5 x 8A
  • Output Power: 5 x (96—192) W
  • DMX In/Out: 5-Pin XLR, RJ45, Wire Terminals
  • PWM Adjustment: 500Hz – 30kHz
  • IP Rating: IP20
  • Operating Temp: -4° to 122° F (-20° to 50° C)
  • Dimensions: 6.5” x 2.9” x 1.5” (164mm x 73mm x 38mm)
