DPA 4066-OC-A-F03-LH 4066 Omnidirectional Headset Microphone with 3-pin LEMO Connector, Beige

DPA's 4066-OC-A-F03-LH, part of their 4066 Series. This particular model features an omnidirectional polar pickup pattern and includes a 3-pin LEMO adapter for use with Sennheiser SK 50, SK 250, SK 3063, SK 5012 wireless transmitters, and it includes a MicroDot connector allowing further expansion/versatility with other 3rd-party systems on the market using DPA's flexible adapter system (additional adapters sold separately - refer to items under "ACCESSORIES" tab above, or consult with one of our Sales Pros).

Due to its pristine sound quality and durability, the 4066 Omnidirectional Headset Microphone has been the chosen headset mic for broadcasters along with theaters on Broadway and London's West End. It features a unique construction that allows you to detach the mic boom from the headset mount then reattach it to either the left or right side. Often an issue in theatrical use, humidity is no problem here. It's made with a double-vent protection system and a drop stopper on the mic boom. Plus, the materials inside the mic are also water resistant. This design makes it very difficult for the microphone to fail because of humidity. In addition, its surface is matte-gold plated and the ear hooks are covered with a silicone hose.

The mic has a sensitivity is 6 mV/Pa, matching the level of the human voice to the general input sensitivity of most wireless transmitters. If powered properly, the microphone will be able to handle sound pressure levels up to 144 dB SPL before clipping occurs.

One of the most clear, consistent, and potent miniature microphones available, the legacy 4066 is known for working across a wide dynamic range as well as exhibiting low distortion across all SPLs.

The powerful technology at the heart of DPA's miniature microphones allows users to get more flexibility because a wider dynamic range enables a single mic to capture a wider range of sounds and in more varied applications. Plus distortion is minimized, so whether it's a whisper or a scream, you'll experience added clarity and openness.

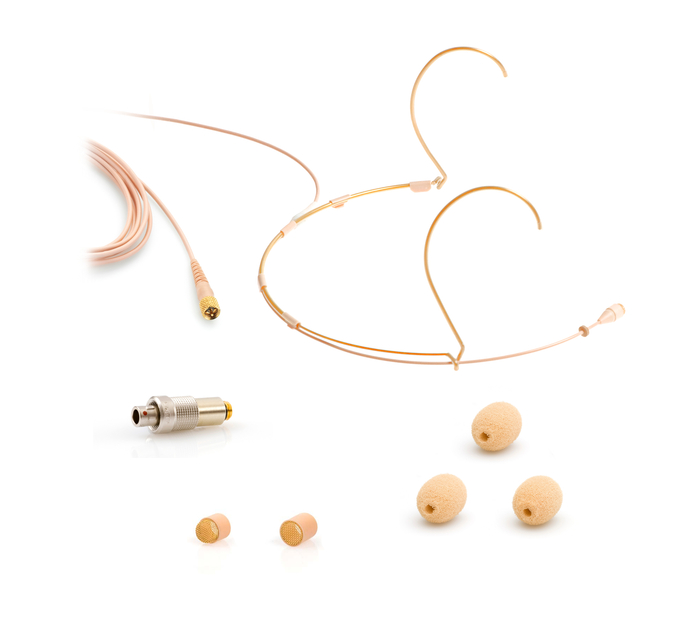

Includes

• 4066 Omnidirectional Headset Microphone
• LEMO3 Cable Adapter (DAD6003)
• (2) Miniature Grid, Soft Boost
• (3) Foam Windscreens

Features

• Resistant to humidity
• Double-vent protection system
• Available in three colors and three sizes
• Modular adapter system fits most professional wireless system

Specifications

• Directional pattern: Omnidirectional
• Principle of operation: Pressure
• Cartridge type: Pre-polarized condenser
• Frequency response: 20 Hz - 20 kHz
• Effective frequency range ±2 dB:
  • Soft boost grid: 40 Hz - 20 kHz, 3 dB soft boost at 8 - 20 kHz
  • High boost grid: 40 Hz - 20 kHz, 10 dB boost at 12 kHz
• Sensitivity, nominal, ±3 dB at 1 kHz: 6 mV/Pa; -44 dB re. 1 V/Pa
• Equivalent noise level, A-weighted: Typ. 26 dB(A) re. 20 µPa (max. 28 dB(A))
• Equivalent noise level, ITU-R BS.468-4: Typ. 38 dB (max. 40 dB)
• Distortion, THD < 1%: 134 dB SPL RMS, 137 dB SPL peak
• Dynamic range: Typ. 111 dB
• Max. SPL, THD 10%: 144 dB SPL peak
• Rated output impedance: 30 - 40 Ω
• Cable drive capability: Up to 300 m (984 ft) with DAD6001-BC XLR Adapter
• Power supply (for full performance):
  • For wireless systems: Min. 5 V - max. 10 V through DPA adapter
  • With DAD6001-BC: P48 (Phantom Power). Will work from 12 V
• Current consumption: Typ. 1.5 mA (microphone). 3.5 mA with DAD6001-BC XLR Adapter
• Connector: 3-pin LEMO
• Color: Beige
• Weight: 14 g (0.5 oz) incl. Cable and MicroDot connector
• Microphone diameter: 5.4 mm (0.21 in)
• Cable length: 1.2 m (3.9 ft)
• Cable diameter: 1.6 mm (0.06 in)
• Polarity: Positively increasing sound pressure produces positive going voltage on MicroDot pin
• Temperature range: -40°C to 45°C (-40°F to 113°F)
• Relative humidity (RH): Up to 90%
