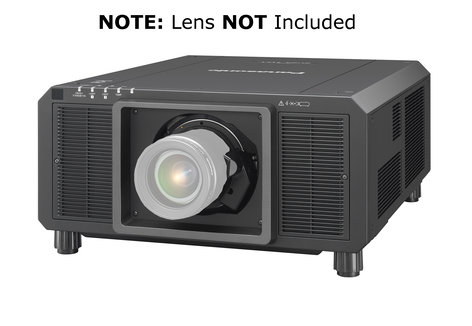

Panasonic PT-RS20KU
21000lm SXGA+ Laser Projector without Lens

OUR PART #:  PTRS20KU

NOTE: Lens NOT Included  The Panasonic PT-RS20KU is a 2100 lumen SXGA+ laser projector without a lens included.
Learn More
Similar Products

NOTE: Lens NOT Included

The Panasonic PT-RS20KU is a 2100 lumen SXGA+ laser projector without a lens included. The 3-Chip DLP™ SOLID SHINE Laser projector combines flagship picture quality produced by the PT-DS20K projector. The PT-RZ21K Series is the world’s first 20,000 lm laser projector to feature a filterless cooling system and fully sealed optics, delivering unassailable reliability in dusty conditions. Handling is effortless with just two technicians. With 20,000-hour maintenance-free operation and software for expedited multi-screen mapping calibration, the rugged yet lightweight PT-RZ21K Series delivers class-beating color reproduction with dramatically reduced running costs, making it the new first choice for event professionals.

Panasonic PT-RS20KU Features:

  • SOLID SHINE Laser Technology:
    • Bright and Vivid Picture Quality from 3-Chip DLP™ SOLID SHINE Laser
    • Precision Color Reproduction
    • Dual-Laser Optical Engine Assures Failsafe Reliability
    • The World’s First Filterless Design for 20,000 lm Laser Projector
  • Image Quality and Reliability:
    • 120 Hz Real Motion Processor Reduces Motion Blur
    • Detail Clarity Processor 5
    • Dynamic Contrast Function for High 20,000:1 Contrast
    • System Daylight View 3
    • Selectable Operational Modes
    • 90% Brightness Uniformity
  • Installation Flexibility and Powerful Functionality:
    • Free 360° Installation
    • Contrast Sync and Shutter Sync Function
    • Single-Cable DIGITAL LINK Connection
    • Backup Input Guarantees Picture Display
    • Geometry Manager Pro Software and Upgrade Kits
    • 3D Projection Capability
    • New Multi Monitoring & Control Software
    • Common Lenses for Panasonic 3-Chip DLP™ Projectors
  • Quick Start and Quick Off
  • Laser Safety Guaranteed
  • Built-in Geometric Adjustment
  • Multi-screen Support System
  • Multi-Unit Brightness and Color Control
  • Art-Net DMX, Crestron Connected™, and PJLink™
  • DICOM Simulation Mode
  • Waveform Monitor Function
  • Power Management Reduces Downtime

Panasonic PT-RS20KU Specifications:

  • Power Supply: AC 200 V–240 V, 7.7 A, 50/60 Hz (Light output will decrease to approximately 50 % when using the projector with AC100 V to AC 120 V [9.6 A])
  • Power Consumption: 1,510 W (0.3 W with Standby Mode set to ECO, 4 W with Standby Mode set to NORMAL)
  • DLP Chip:
    • Panel Size: 0.95" (24.1 mm) diagonal (4:3 aspect ratio)
    • Display Method: DLP™ chip x 3, DLP™ projection system
    • Pixels: 4,410,000 (1400 x 1050 x 3) pixels
  • Refresh Rate: 120 Hz
  • Lens: Optional (no lens included with this model)
  • Light Source: Laser Diode (Laser class: Class1)(Class 3R for US models), Light source life: 20,000 hours (NORMAL Mode,brightness decreases to approx. 50 %) / 24,000 hours (ECO Mode, brightness decreases to approx. 50 %)
  • Screen Size (diagonal):
    • 70"–1,000" (1.78–25.4 m) with 4:3 aspect ratio
    • 70"–600" (1.78–15.24 m) with the ET-D75LE8, 4:3 aspect ratio
    • 120"–600" (3.05–15.24 m) with the ET-D75LE95, 4:3 aspect ratio
  • Brightness: 21,000 lm (Center) / 20,000 lm
  • Center-to-Corner Uniformity: 90%
  • Contrast: 20,000:1 (Full On/Full Off, DynamicContrast Mode: 3)
  • Resolution: 1400 x 1050 pixels
  • RGB: fH: 15-100 kHz, fV: 24-120 Hz, dot clock: 162MHz or less
  • Video/YC:
    • fH: 15.73 kHz
    • fV: 59.94 Hz (NTSC/NTSC4.43/PAL-M/PAL60)
    • fH: 15.63 kHz, fV: 50 Hz (PAL/PAL-N/SECAM)
  • Optical axis shift (from center of screen):
    • Vertical: ±50 % (±40 % with ET-D75LE6, +67 % - +71 % with ET-D75LE95) (powered)
    • Horizontal: ±30 % (±20 % with ET-D75LE6, ±8 % with ET-D75LE95) (powered)
  • Keystone Correction Range:
    • Vertical: ±40° (± 22° with ET-D75LE50, ±28° with ET-D75LE6)
    • Horizontal: ±15°
  • Installation: Horizontal/vertical, free 360°installation
  • Cabinet Materials: Molded plastic
  • Dimensions (WxHxD): 23 17/32" x 10 5/8" x 28 17/32"(598 × 270 × 725 mm) (not including protruding parts)
  • Weight: 108 lbs (49.0 kg)
  • Operation Noise: 46 dB
  • Operating Environment:
    • Operating temperature: 32°–122°F (0°–50°C)
    • Operating humidity: 10–80 % (no condensation)
  • Applicatble Software: Logo Transfer Software, MultiMonitoring & Control Software, Early Warning Software, Geometry ManagerPro Software (ET-UK20 Upgrade Kit, ET-CUK10 Auto Screen Adjustment UpgradeKit), Smart Projector Control
  • Terminals:

https://panasonic.net/cns/projector/products/rz21k/img/spec/img01.jpg

0.9-1.1:1/1-1.2:1 Zoom Lens for Select Panasonic Projectors
Panasonic ET-D75LE6 0.9-1.1:1/1-1.2:1 Zoom Lens for Select Panasonic Projectors
The Panasonic ET-D75LE6 is a zoom lens that when used with the PT-DS20KU, PT-DS8500U, PT-DW17KU, and PT-DW8300U, has a throw ratio of 1-1.2:1. When it's in use with the PT-DZ21KU or PT-DZ8700U, it has a throw ratio of 0.9-1.1:1.
Call for price! Not available online.

Ultra Short-Throw Lens For 3-Chip DLP Projectors
Panasonic ETD75LE95 Ultra Short-Throw Lens For 3-Chip DLP Projectors
The Panasonic ET-D75LE95 Ultra Short Throw Lens is compatible with 3-Chip DLP™ Panasonic projectors and enables large-screen image projection from very short distances. By mounting an ET-D75LE95 Ultra Short Throw lens onto a Panasonic ...
Call for price! Not available online. 20,199.00

Fixed Focus Lens for PT-DZ21K, PT-DS20K, PT-DW17K Projectors
Panasonic ET-D75LE50 Fixed Focus Lens for PT-DZ21K, PT-DS20K, PT-DW17K Projectors
Panasonic's ET-D75LE50 is a fixed focus lens for use with Panasonic's PT-DZ21K, PT-DS20K, and PT-DW17K projectors.Throw Ratios: PT-DZ21K: 0.7:1 PT-DS20K: 0.8:1 PT-DW17K: 0.8:1
Call for price! Not available online.

Approx. 8.0-15.0:1 Zoom Lens
Panasonic ET-D75LE8 Approx. 8.0-15.0:1 Zoom Lens
The Panasonic ET-D75EL8 zoom lens allows you to vary the projection distance by changing focal distance. It's designed to work with the following projectors* (as of February, 2016). PT-RQ13K PT-RZ12K PT-RS11K PT-DZ21K2 PT-DS20K2 ...
Call for price! Not available online.

1.4-1.9:1 Projector Zoom Lens for DZ8700, DS8500, DW8300 Projectors
Panasonic ETD75LE10 1.4-1.9:1 Projector Zoom Lens for DZ8700, DS8500, DW8300 Projectors
Panasonic ETD75LE10 is a 1.4-1.9:1 Projector Zoom Lens for DZ8700, DS8500, DW8300 Projectors.Panasonic ETD75LE10 Specifications: 1.3-1.7:1 for DZ8700 projector1.4-1.8:1 for DS8500 projector1.4-1.9:1 for DW8300 projector
Call for price! Not available online.

Zoom Lens for PT-DZ21K, PT-DS20K, PT-DW17K Projectors
Panasonic ET-D75LE40 Zoom Lens for PT-DZ21K, PT-DS20K, PT-DW17K Projectors
Panasonic's ET-D75LE40 is a zoom lens for use with Panasonic's PT-DZ21K, PT-DS20K, and PT-DW17K projectors.Throw Ratios: PT-DZ21K: 4.6-7.4:1 PT-DS20K: 5.0-8.0:1 PT-DW17K: 5.1-8.2:1
Call for price! Not available online.

1.8-2.7:1 Zoom Lens for DZ8700, DS8500, DW8300 Projectors
Panasonic ETD75LE20 1.8-2.7:1 Zoom Lens for DZ8700, DS8500, DW8300 Projectors
Specifications: 1.7-2.4:1 for DZ8700 projector 1.8-2.6:1 for DS8500 projector 1.8-2.7:1 for DW8300 projector
Call for price! Not available online.

High Ceiling Mount Bracket for PT-DZ21K2 Series
Panasonic ET-PKD520H High Ceiling Mount Bracket for PT-DZ21K2 Series
The Panasonic ET-PKD520H is a high ceiling mount bracket for the PT-DZ1K2 Series.
Call for price! Not available online.

Upgrade Kit with Geometry Manager Pro Software for PT-DZ21K, PT-DS20K Projectors
Panasonic ET-UK20 Upgrade Kit with Geometry Manager Pro Software for PT-DZ21K, PT-DS20K Projectors
Panasonic's ET-UK20 upgrade kit with Geometry Manager Pro software supports color matching and ege blending for multi-projector set-ups (up to 32 projectors).  It also allows creative masking using four lines or bitmap ...
Call for price! Not available online.

Low Ceiling Mount Bracket for PT-DZ21K2 Series
Panasonic ET-PKD520S Low Ceiling Mount Bracket for PT-DZ21K2 Series
The Panasonic ET-PKD520S is a low ceiling mount bracket for the PT-DZ1K2 Series.
Call for price! Not available online.
