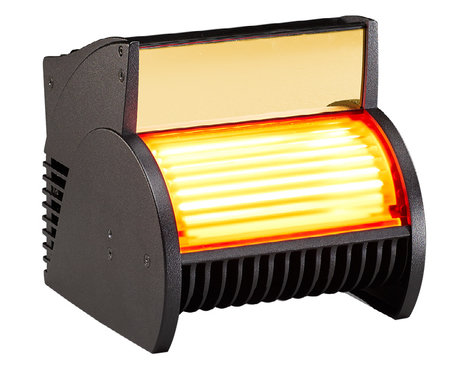

ETC/Elec Theatre Controls ColorSource CYC with Twistlock Power Connector
LED Cyclorama Fixture in Black

OUR PART #:  CSCYC-C

With a compact design that houses a unique, 5-color LED array, the ColorSource®CYC from ETC is a useful fixture that will change your lighting design ways.
Learn More
Our Price: $1,600.00
Write the first review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

ETC/Elec Theatre Controls ColorSource CYC with Twistlock Power Connector
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

With a compact design that houses a unique, 5-color LED array, the ColorSource®CYC from ETC is a useful fixture that will change your lighting design ways. This dedicated cyclorama fixture has been designed with the sole purpose of creating beautiful, smooth washes of light on a cyclorama or wall. Adding to the attractiveness of this LED fixture is that its ETC's initial fixture to use their innovative five-color mix of red, green, blue, lime, and indigo for expanded range and color control. Now your cyclorama finally gets the attention it deserves.

This ColorSource model, the CSCYC-C comes with a twistlock power connector and is in the color black. The ColorSource®CYC fixture has a compact and lightweight design, so it fits easily on your stage floor or hangs from a pipe. Plus, this fixture is fanless, and all-LED, so it consumes a fraction of the power of other standard CYC fixtures. And LED means no more gel! Your budget can go toward something other than replacing lamp after expensive lamp, and the saturated colored gel that burns through after a couple of shows.

ETC ColorSource CYC Includes:

  • Hanging yoke
  • Power cable

NOTE: C-clamp sold separately.

ETC ColorSource CYC Features:

  • Compact Design
  • Unique, all LED (RGBI-L) 5-color array
  • Rich, bright light
  • Fanless operation
  • Stand-alone presets and sequences
  • Simple setup and user interface

ETC ColorSource CYC Specifications:

  • Model: CSCYC-C (twistlock power connector)
  • Source:
    • LED Details: 42 Lumileds LUXEON C LEDs
    • Max Lumens: 4117
    • Lumens Per Watt: 31
    • L70 Rating (Hours to 70% output): 50,000 hours (estimate pending testing data)
  • Color:
    • Colors Used: Red, green, blue, indigo and lime
    • Color temperature range: Variable
    • Calibrated Array: Yes
    • Red Shift: No
  • Optical:
    • Beam angle range: N/A (asymmetrical)
    • Gate size: N/A
    • Aperture size: N/A
    • Pattern projection: No
    • Pattern size: N/A
    • Camera flicker control/Hz range: 1,200 Hz (default) and 25,000 Hz (via RDM)

Note: The ColorSource CYC has a built in accessory for spill control

  • Control:
    • Input method: DMX-512 via 5-pin XLR or RJ45 connector
    • Protocols: DMX
    • Modes (Footprint):
    • 5 channel- IRGBS (5)
    • Direct- IRGBILS (7)
    • 1 channel- I (1)
    • RGB- RGB (3)
    • RDM configuration: Yes
    • UI type: 7-segment address display
    • Local control: Yes
    • Onboard presets: Yes (12)
    • Onboard sequences: Yes (5)
    • Onboard effects: No
    • Fixture to fixture control: Yes

Note: Local level control via UI

  • Electrical:
    • Voltage range: 100V-240VAC, 50/60Hz
    • Input method: powerCON in and thru
    • Inrush: 39A (first half-cycle) at 120V
    • Fixtures per circuit: 9 (20A switched circuit, R20 module or similar)
    • Wattage (Typical/Standby): 133W/1.4W
    • Current draw: 1.11A at 120V
  • Thermal:
    • Ambient operating temp: 32-104° F (0-40° C)
    • Fan (controllable): No (N/A)
    • Droop compensation: Yes
    • dB range: 18.5dBa average at 1m
    • BTUs/hour: 418
  • Physical:
    • Materials: Die-cast aluminum and plastic
    • Color options: Black, white, silver or custom color
    • Mounting options: Yoke and floor
    • IP rating: IP-20
    • Weight 10.3 lbs (4.67 kg)
