Product Overview

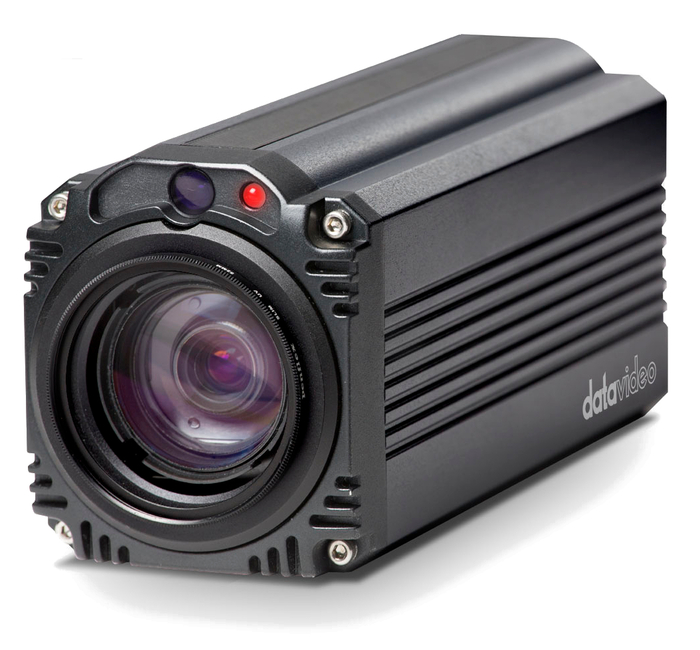

Utilizing a 1/2.8" High Definition 2.0 M Pixels progressive CMOS sensor, the DataVideo BC-80 block camera is small but will produce high quality HD video. This block camera is ideal for situations where you'll be shooting within a limited space and this model supports resolutions up to 1080p60. The BC-80 comes with an infrared remote control and it also provides 30x optical zoom and the image output interfaces are SDI and HDMI. The BC-80 supports SONY VISCA protocol enabling the camera to be controlled via RS-422 or DVIP interface. It also comes with a built-in tally light that indicates when the camera is active.
Includes
- 1x BC-80 main unit
- 1x IR remote control
- 1x DC 12V power adaptor
Features
- HD Resolution: 1/2.8" High Definition 2.0 M Pixels progressive CMOS sensor
- High definition formats supported: 1080/ 59.94p,1080/ 50p, 1080/ 59.94i, 1080/ 29.97p, 1080/ 25p, 1080/ 50i, 720/ 59.94p,720/50p
- Digital Noise Reduction Function (DNR) to reduce the noise and enable sharper image under low light conditions
- Video Output: SDI + HDMI synchronously
- Tally LED Design (RS-422/ DVIP Operation)
- Supports SONY VISCA Protocol
- Supports DVIP Control Protocol
Specifications
- Model Name: BC-80
- Product Name: HD Block Camera
- Video format:
- 1080p 59.94/50/29.97/25
- 1080i 59.94/50
- 720p 59.94/50
- Image Sensor: 1/2.8” type progressive scan CMOS sensor
- Effective Pixels (approx.): 2.14 Mega pixels
- S/N Ratio: 50 dB
- Min. Illumination:
- Color: 0.4 lx (F1.6, 1/30 sec, 50IRE, Gain: High)
- B/W: 0.03 lx (F1.6, 1/30 sec, 50IRE, Gain: High)
- Electronic Shutter: 1/25 (1/30), 1/50 (1/60), 1/75(1/90), 1/100, 1/120 (1/125), 1/150 (1/180), 1/215 (1/250), 1/300 (1/350), 1/425 (1/500), 1/600 (1/725), 1/1000, 1/1250 (1/1500)
- Zoom Ratio: 30x Optical Zoom
- Gamma Control: Off / Normal / Standard Mode 1-4
- Iris Control: Auto / Manual
- Digital Noise Reductions: Yes
- On-Screen Display (OSD): English
- White Balance: AWB / MWB / One push WB / Outdoor /Indoor / Fluorescent
- AGC / Gain Control:
- Auto / Manual (0 to 28 step)
- Max. Gain Limit (6 to 28 step)
- Mirror / Flip Image: Yes
- Focus Mode: Auto / Manual
- Preset: 10
- Focal Length:
- F=4.3 mm (WIDE) to 129 mm (TELE)
- F1.6 to F4.7
- Field of View (Horizontal, Wide):
- Approx. 63.7° (WIDE END)
- 2.3° (TELE END)
- Image Compensation: Day & Night function
- Video Output:
- HDMI (V1.3) x 1
- 3G-SDI x 1
- Tally LED: Dual color (Red, Green)
- Filter: Yes
- Protocol: VISCA / DVIP Protocol
- Remote Control Interface and Transmit Distance:
- RS-422: Transmit up to 3280 ft (1000m)
- DVIP (RJ45): 328 ft (100m)
- F/W Update: USB
- IR Control: Yes
- Camera Control Unit: RMC-180
- Color: Dark blue
