Product Overview

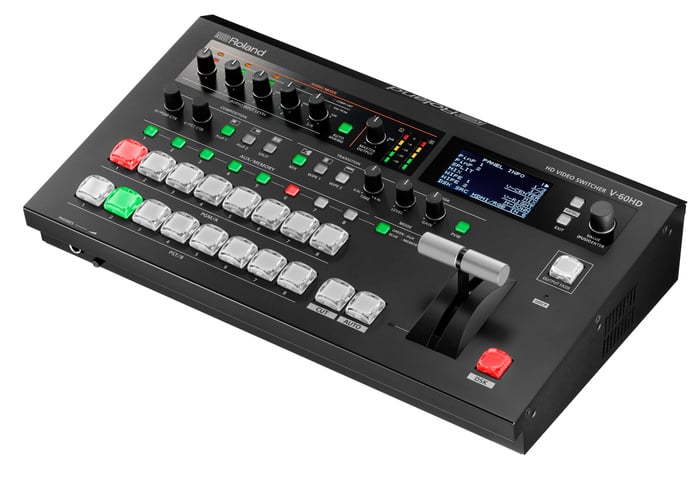

Whether you need to do live productions or juice up your training presentations, Roland's V-60HD Video Switcher can handle those challenges and much more. With the continued growth of live event production and streaming offerings, this puts a demand on more features that requires a sophisticated feature set.
The V-60HD simplifies your set-ups and combines the best of both worlds that includes SDI inputs for camera sources and scaled HDMI inputs for data, computer, tablet and other video sources. The combination of powerful audio features that include multi-channel embedded audio, XLR and RCA analog inputs, de-embedded audio from digital SDI or HDMI sources plus a variety of video connections with a Program and Aux Bus helps to make the V-60HD ideal for a variety of live event production and streaming applications.
If the educational arena is your specialty, then you'll appreciate the improved effectiveness of your applications when the V-60HD is used for streaming lectures, assemblies, distance learning, sports, live performances or theater productions. And the V-60HD is also ideal for multiscreen environments usually found in churches, conference centers, hotels, and trade show facilities where different content needs to be switched to independent screens.
Roland Professional A/V V-60HD Includes:
- Owner's Manual
- AC adaptor
- Power cord
Roland Professional A/V V-60HD Features:
- Professional user interface
- 30 wipe patterns
- 6 video sources
- Video composition
- AUX bus
- 18-channel audio mixer
- Audio mixing
- Discreet Multi-Channel audio embedding
- Smart Tally to iOS or Android devices
- Remote control via software app or RS-232 control
Roland Professional A/V V-60HD Specifications:
- Video:
- Video Processing: 4:2:2 (Y / Pb / Pr), 8-bit
- Input Connectors:
- SDI IN 1--4: BNC type x 4
- NOTE: Conforms to SMPTE 424M (SMPTE 425M-AB), 292M)
- HDMI IN 5--6: HDMI type A x 2
- HDCP Supported
- Multi-format Supported
- RGB / COMPONENT IN 6: HD DB-15 type x 1
- INPUT 6: HDMI or RGB / COMPONENT selected.
- Multi-format Supported
- Output Connectors: SDI OUT 1--2: BNC type x 2
- Conforms to SMPTE 424M (SMPTE 425M-AB), 292M
- HDMI OUT 1--2: HDMI type A x 2
- HDMI MULTI-VIEW: HDMI type A x 1
- HDCP Supported
- Input formats:
- SDI IN 1--4: Conforms to SMPTE 296M, SMPTE 274M
- 720 / 59.94p, 720 / 50p SMPTE 296M (FORMAT switch =720p)
- 1080 / 59.94i, 1080 / 50i, 1080 / 59.94p, 1080 / 50p SMPTE 274M (FORMAT switch = 1080i or 1080p)
- * The input interlaced video signal is converted to progressive video signal by internal processing.
- * The input interlaced video signal is converted to progressive video signal by internal processing.
- * The video signal frame rate can be selected at the SYSTEM menu (59.94 or 50).
- HDMI IN 5:
- HDMI / RGB / COMPONENT IN 6: 480 / 59.94i, 576 / 50i, 480 / 59.94p, 576 / 50p, 720 / 59.94p, 720 / 50p, 1080 / 59.94i, 1080 / 50i, 1080 / 59.94p, 1080 / 50p
- VGA (640 x 480 / 60Hz), SVGA (800 x 600 / 60Hz), XGA (1024 x 768 / 60Hz)
- WXGA (1280 x 768 / 60Hz), SXGA (1280 x 1024 / 60Hz)
- FWXGA (1366 x 768 / 60Hz), SXGA+ (1400 x 1050 / 60Hz)
- UXGA (1600 x 1200 / 60Hz), WUXGA (1920 x 1200 / 60Hz)
- * The refresh rate is the maximum value of each resolution.
- * Conforms to CEA-861-E,VESA DMT Version 1.0 Revision 11.
- * 1920 x 1200/60 Hz: Reduced blanking
- * The input interlaced video signal is converted to progressive video signal by internal processing.
- * The video signal frame rate can be selected at the SYSTEM menu (59.94 or 50).
- Still Image:
- Windows(R) Bitmap File (.bmp)
- * Maximum 1920 x 1080 pixels, 24-bit color, uncompressed.
- * It can be stored up to 2 files in the internal memory.
- Output formats:
- SDI OUT 1--2: Conforms to SMPTE 296M, 274M
- HDMI OUT 1--2:
- 720 / 59.94p, 720 / 50p (SYSTEM FORMAT = 720p)
- 1080 / 59.94i, 1080 / 50i (SYSTEM FORMAT = 1080i)
- 1080 / 59.94p, 1080 / 50p (SYSTEM FORMAT = 1080p)
- * The video signal frame rate can be selected at the SYSYTEM menu (59.94 or 50).
- HDMI MULTI-VIEW: 1080 / 59.94p, 1080 / 50p
- Video Effects:
- Transition: CUT, MIX (DISSOLVE / FAM / NAM), WIPE (30 types)
- Composition: PinP (SQUARE, CIRCLE, HEART, DIAMOND), DSK (Luminance Key, Chroma Key)
- Others: Flip horizontal, Output fade, Still Image Capture, Still Image Playback, Test pattern output
- Audio:
- Audio Processing: Sampling rate: 24-bits / 48kHz
- Audio formats:
- SDI IN: Linear PCM, 24-bits / 48kHz, 2ch (Conforms to SMPTE 299M)
- SDI OUT: Linear PCM, 24-bits / 48kHz, 8ch (Conforms to SMPTE 299M)
- HDMI IN/OUT: Linear PCM, 24-bits / 48kHz, 2ch
- Input Connectors:
- Digital: SDI IN 1--4: BNC tyep x 4
- HDMI IN 5--6 (HDMI Type A 19 pins) x 2
- Analog: AUDIO IN 1--4: Combo type (XLR, 1/4-inch TRS phone), phantom power
- AUDIO IN 5--6: RCA phono type
- Phantom Power: 48VDC (unloaded maximum), 10mA (maximum load)
- * Current value per channel
- Output Connectors:
- Digital: SDI OUT 1--2: BNC type x 2
- HDMI OUT 1--2: HDMI type A x 2
- HDMI MULTI-VIEW: HDMI type A x 1
- Analog: AUDIO OUT: XLR type
- AUDIO OUT: RCA phono type
- PHONES: Stereo 1/4-inch phone type
- Input Level:
- AUDIO IN 1--4: -60--+4dBu (Maximum: +22dBu)
- AUDIO IN 5--6: -10dBu (Maximum: +8dBu)
- Input Impedance:
- AUDIO IN 1--4: 10kΩ (HEAD AMP GAIN 0--23dB), 5kΩ (HEAD AMP GAIN 24--+64dBu)
- AUDIO IN 5--6: 15kΩ
- Output Level:
- AUDIO OUT (XLR): +4dBu (Maximum: +22dBu)
- AUDIO OUT (RCA): -10dBu (Maximum: +8dBu)
- PHONES: 92mW + 92mW (32Ω)
- Output Impedance:
- AUDIO OUT (XLR): 600Ω
- AUDIO OUT (RCA): 1kΩ
- PHONES: 10Ω
- Audio Effects: Auto Mixing, EQ, Delay, Compressor, HPF, Gate, Multi-Band Compressor, Limiter
- Other:
- Other Connectors
- USB: USB A type (for USB memory)
- TALLY /G PI: DB-25 type (Female)(Tally: 12, GPI: 8)
- RS-232: DB-9 type (Male) *for Remote Control
- LAN: RJ-45 100BASE-TX *for Remote Control
- Other Functions:
- MEMORY (8 types)
- Panel lock function
- EDID Emulator
- EDID Emulator
- Display: Graphic LCD: 128 x 64 dots
- Power Supply: AC Adapter
- Current Draw: 3.1A
- Power Consumption: 37W
- Operation Temperature: +32 to +104 degrees Fahrenheit (+0 to +40 degrees Celsius)
- Dimensions: 14-1/16 (W) x 8-3/4 (D) x 3-13/16 (H) inches (356 (W) x 221 (D) x 96 (H) mm)
- Weight (excluding AC adapter): 6lbs 10oz (3kgs)
