JBL VTX A12 SB Suspension Bar
Suspension Bar Accessory for VTX A12

OUR PART #:  VTX-A12-SB

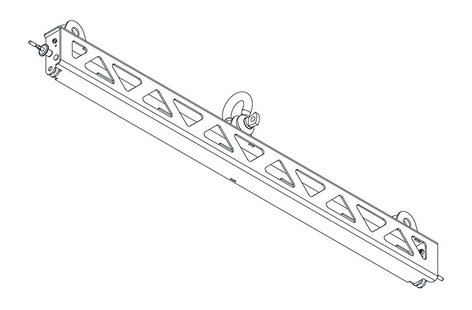

The JBL VTX A12 SB accessory is a lightweight suspension bar that can be used as an array frame or to implement pull- back of a VTX A12 array.
Learn More
Our Price: $777.60
List Price: $1,200.00
You save 35%!
Write the first review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

JBL VTX A12 SB Suspension Bar
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

The JBL VTX A12 SB accessory is a lightweight suspension bar that can be used as an array frame or to implement pull- back of a VTX A12 array. When used for pull-back, the VTX A12 SB can be attached to the bottom cabinet of an array and connected to a rear suspension point to allow for extra down-tilt, otherwise not possible using the VTX A12 AF alone. The VTX A12 SB can also attach to the top cabinet of an array and used as a compact array frame. In this mode, the suspension bar connects to the top cabinet’s rear rigging points and the down-tilt angle is controlled by the number of cabinets and array geometry. JBL’s Line Array Calculator software application is used to calculate the down-tilt angle. Two VTX A12 SB suspension bars can be used: one at the top and one at the bottom of the array, for dual-point applications and added aiming flexibility. The VTX A12 SB can support the weight of up to 18 x VTX A12 enclosures and a 5/8” shackle (included) can be attached directly to the bar.

JBL VTX A12 SB Includes:

  • (1) VTX A12 SB - Suspension Bar
  • (1) 5/8” CM Shackle

JBL VTX A12 SB Features:

  • Suspension Bar accessory for VTX A12
  • Used for pull-back applications
  • Support for suspending VTX A12
  • Support for up to 18 x VTX A12 enclosures
  • Lightweight design
  • Color: black
  • Shackle Size: 5/8”
