Product Overview

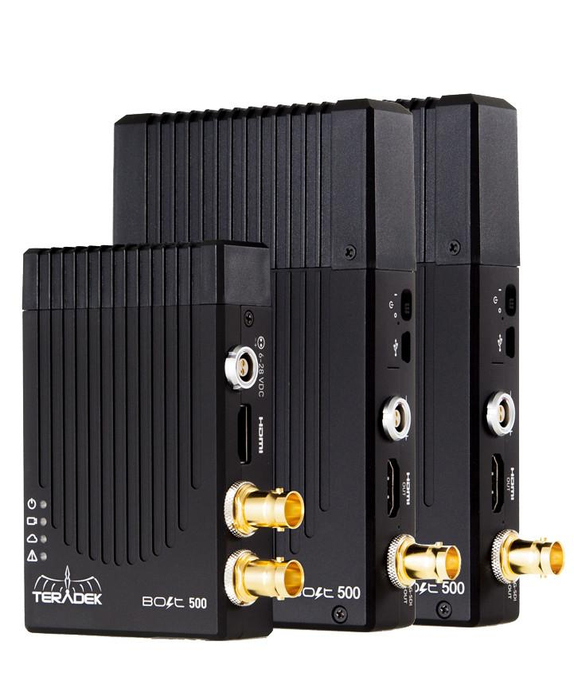

The Teradek TER-BOLT-938 Bolt 500 SDI/HDMI Tranceiver set comes with one Transmitter and two Receivers.
With highly refined software, new wireless radios, and a redesigned chassis, these new models are the most reliable and capable monitoring solutions we have ever built. Metadata and timecode support, 3D LUTs, dual inputs/outputs, multicast capable (1 Transmitter can multicast up to 4 Receivers), manual frequency selection and USB 3.0 GRAB Engine are all included on these new models.
Transmit visually lossless video up to 500ft with no delay.
Operate interference-free more often in the USA and Europe by making use of two newly introduced DFS channels.
Reach your Bolt’s full range and potential right out of the box with new software that provides the most robust wireless link we’ve ever created.
Reconnect times during a dropped link are now instantaneous once you move back into range.
Perfect for use with MoVI and other gimbals, Bolt’s TX has a built-in HDMI to SDI converter, allowing you to connect both your on-camera monitor and video source via the same device.
Includes
- General:
- 3 x HDMI 18" Cable (Type A to Type A)
- 3 x SDI (BNC to BNC) Cable 10"
- Transmitter:
- 1 x 2-pin Connector to PowerTap 18" Cable
- 1 x Hot Shoe Adapter (1/4"-20")
- 1 x HDMI 18" Cable (Type A to Type A)
- 1 x SDI (BNC to BNC) Cable 10"
- 1 Year Warranty
- Receiver:
- 1 x Thumb Screw 1.25" length (1/4"-20")
- 1 x Lightstand Adapter (1/4"-20")
- 1 x SDI (BNC to BNC) Cable 10"
- 1 x USB 3.0 Cable A to Micro B (3ft Length)
- 1 x PSU 2-Pin Connector to 18W AC Adapter 6ft cable
- 1 x 1-Year Warranty
- Receiver 2:
- 1 x Thumb Screw 1.25" length (1/4"-20")
- 1 x Lightstand Adapter (1/4"-20")
- 1 x SDI (BNC to BNC) Cable 10"
- 1 x USB 3.0 Cable A to Micro B (3ft Length)
- 1 x PSU 2-Pin Connector to 18W AC Adapter 6ft cable
- 1 x 1-Year Warranty
Specifications
- Bolt Pro 500 3G-SDI Video TX:
- Video:
- Video Inputs: 1 x SD/HD/3G-SDI (75 Ohm BNC)
- Video Outputs: 1 x HD/SD/3G-SDI Loop-out (75 Ohm BNC)
- Sdi Ancillary Data Support: Supports transmitting metadata, timecode, and start/stop flags from certain camera manufacturers. Please refer to: https://support.teradek.com/hc/en-us/articles/217446087
- Color Sampling: SDI: YCbCr 4:2:2, 10-bit (8-bit when format conversion is enabled)
- Delay Tx To Rx:
- Supported Input Resolutions:
- Supported Resolutions:
- 1080p 23.98/24/25/29.97/30/50/59.94/60
- 1080psf23.98/24/25/29.97/30
- 1080i50/59.94/60
- 720p50/59.94/60
- 480p59.94/576p50 (via HDMI ports only)
- 480i(NTSC)/576i(PAL)
- Video Processing:
- Video Compression: visually lossless
- Color Correction:
- CDL/1024 1D LUT (supports 10-bit color)
- 33x33x33 3D LUT (supports 10-bit color)
- Audio Processing:
- Audio Compression: 48kHz 24-bit PCM
- Inputs:
- Audio Input: Embedded Audio Input
- Physical:
- Dimensions: 1" x 2.6" x 4.0" (24 x 66 x 102.1mm)
- Weight: 7.6oz(217g)
- Construction:
- Milled Aluminum(Chassis) and regulation-compliant PCB
- Plastic Cap
- Interfaces:
- Http: None
- Configuration Interfaces: None
- Switches: On/Off and Reset Switch
- Desktop App: Feature-rich Bolt Manager Application for OSX & Windows
- Usb Interface Functionality: Upgrade via Mini-USB
- Network:
- Wireless:
- Non-DFS Frequencies:
- US: 5.19 ~ 5.23 GHz and 5.755 ~ 5.795 GHz
- EU & JP: 5.19 ~ 5.23 GHz
- DFS Frequencies:
- US: 5.27 ~ 5.55 GHz and 5.67 GHz
- EU & JP: 5.27 ~ 5.67 GHz
- Rf Channel Selection:
- Auto only (NOT configurable)
- Encryption: AES-128
- Rf Power: 17dBm EIRP
- Range: Up to 500ft line of sight
- Unicast Multicast: Unicast / Multicast
- Noise Rejection: Can coexist with WiFi and 5GHz cordless phones
- Power:
- Power Input: 2-Pin Connector 7-28 VDC
- Battery: None
- Nominal Power Consumption: 7.3 Watts (Measured at 1080p60)
- Operating Temperature: 0° ~ 40°C
- General:
- Mountability: Multiple mounting options with 1/4" holes
- Bolt Pro 500 RX - 3G-SDI/HDMI Video RX
- Video:
- Video Outputs:
- 1 x SD/HD/3G-SDI (75 Ohm BNC)
- 1 x HDMI Type-A receptacle
- 1 x USB 3.0 micro B receptacle
- Sdi Ancillary Data Support: Supports transmitting metadata, timecode, and start/stop flags from certain camera manufacturers. Please refer to: https://support.teradek.com/hc/en-us/articles/217446087
- Color Sampling:
- SDI: YCbCr 4:2:2, 10-bit (8-bit when format conversion is enabled)
- HDMI: RGB 4:4:4, 8-bit
- Delay Tx To Rx:
- Supported Input Resolutions:
- Supported Resolutions:
- 1080p 23.98/24/25/29.97/30/50/59.94/60
- 1080psf23.98/24/25/29.97/30
- 1080i50/59.94/60
- 720p50/59.94/60
- 480p59.94/576p50 (via HDMI ports only)
- 480i(NTSC)/576i(PAL)
- Video Processing:
- Video Compression: visually lossless
- Test Pattern Generator Support: Custom output formatted test pattern over HDMI and SDI.
- Color Correction:
- CDL/1024 1D LUT (supports 10-bit color)
- 33x33x33 3D LUT (supports 10-bit color)
- Audio Processing:
- Audio Compression: 48kHz 24-bit PCM
- Inputs:
- Audio Input: Embedded Audio Input
- Physical:
- Dimensions: 1.0" x 3.5" x 5.8" (25.2 x 88.9 x 146.5mm)
- Weight: 10.5oz(299g)
- Construction:
- Milled Aluminum(Chassis) and regulation-compliant PCB
- Plastic Cap
- Interfaces:
- Http: None
- Configuration Interfaces:
- No OLED Screen
- There is an OSD that appears on the Video Output which can be controlled with the Menu Joystick
- Switches: On/Off and Reset Switch
- Desktop App: Feature-rich Bolt Manager Application for OSX & Windows
- Usb Interface Functionality: Upgrade via Mini-USB
- Network:
- Wireless:
- Non-DFS Frequencies:
- US: 5.19 ~ 5.23 GHz and 5.755 ~ 5.795 GHz
- EU & JP: 5.19 ~ 5.23 GHz
- DFS Frequencies:
- US: 5.27 ~ 5.55 GHz and 5.67 GHz
- EU & JP: 5.27 ~ 5.67 GHz
- Rf Channel Selection: Auto only (NOT configurable)
- Encryption: AES-128
- Rf Power: 15dBm EIRP
- Range: Up to 500ft line of sight
- Unicast Multicast: Unicast / Multicast
- Noise Rejection: Can coexist with WiFi and 5GHz cordless phones
- Power:
- Power Input: 2-Pin Connector 7-28 VDC
- Battery: None
- Nominal Power Consumption: 9 Watts (Measured at 1080p60)
- Operating Temperature: 0° ~ 40°C
- General:
- Mountability: Multiple mounting options with 1/4" holes
