Gefen Inc EXT-DP-4K600-1SC
4K 600MHz DisplayPort Extender Kit over Multimode Fiber

OUR PART #:  EXT-DP-4K600-1SC

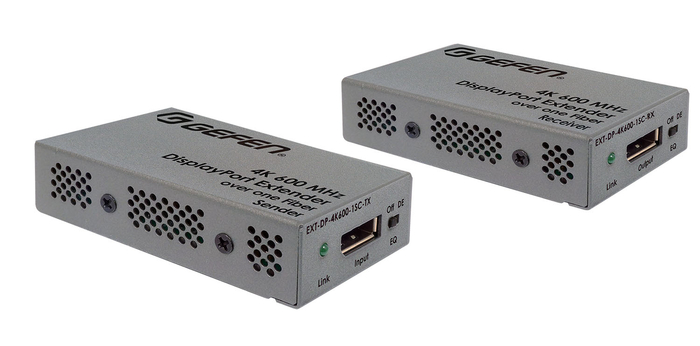

The EXT-DP-4K600-1SC from Gefen is a plug-and-play DisplayPort™ Extender kit that will work without any special set-up.
Learn More
Gefen EXT-DP-4K600-1SC - Receiver Unit Output View
Gefen EXT-DP-4K600-1SC - Receiver Unit Input View
Gefen EXT-DP-4K600-1SC - Receiver Unit View

Click a thumbnail to see more images. (8 total)

Our Price: $2,199.00
Write the first review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

Gefen Inc EXT-DP-4K600-1SC
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

The EXT-DP-4K600-1SC from Gefen is a plug-and-play DisplayPort™ Extender kit that will work without any special set-up. This fiber optic extender is a compact and high performance solution for extending HDCP 2.2, HDCP 1.4, and DPCP compliant DisplayPort 600 MHz 4K audio/video over fiber. The AV signal can be extended up to 200m (660ft), over a single strand of SC-terminated 50/125 µm OM3 or better multi-mode fiber-optic cable and supports video resolutions up to WQUXGA (3840 x 2400), 4K Ultra HD (3840 x 2160), and 4K Cinema - DCI (4096 x 2160), up to 60 Hz frame rate and 4:4:4 Chroma sub-sampling.

The Sender and Receiver units in this extender kit feature easy-to-use EQ switches. The EXT-DP-4K600-1SC supports popular and useful DisplayPort technologies such as Multi-streaming (connecting multiple daisy-chained displays to one DisplayPort output) and Auxiliary Channel (transporting data and controls along with the AV signal). There is full electrical isolation between the Sender and the Receiver, meeting the stringent safety and EMC requirements for critical applications. When used with the Gefen EXTPS52AU-M-1.3-6-AL power supply (available separately), this extender is compliant with medical safety and EMC standards EN 60601-1 and EN 60601-1-2. The EXT-DP-4K600-1SC can be powered from sources and displays featuring powered USB ports, or by using external power supplies.

Compact enclosures are easy to install and can be hidden away. Their sturdy metal enclosures help provide further immunity against ElectroMagnetic Interference (EMI) and radiated noise (RFI). Applications for this extender kit include medical imaging, military and industrial command and control rooms, flight simulators, digital signage, gaming, and wherever 4K full-bandwidth uncompressed video or end-to-end electrical isolation are essential.

Gefen EXT-DP-4K600-1SC Includes:

  • 1 x EXT-DP-4K600-1SC-TX - Sender unit
  • 1 x EXT-DP-4K600-1SC-RX - Receiver unit
  • 2 x DisplayPort Male-to-Male cables, 6 feet
  • 2 x USB-to-DC cables, 2.3 feet
  • 2 x EXT-PS52AIP-1.3-6-AL power supplies and 2 sets of regional AC plugs (US, UK, EU, and AU)
  • 1 x Quick Start Guide

Gefen EXT-DP-4K600-1SC Features:

  • Supports Full-Bandwidth 4K 60 Hz 4:4:4 (600 MHz)
  • Fully compliant with DisplayPort 1.2 standard
  • Supports WQUXGA (4K; 3840x2400), 4K Ultra HD (3840 x2160), and 4K Cinema - DCI (4096 x 2160) at 60Hz, 4:4:4
  • Extension up to 200m (660 feet) over one (1) SC-terminated multi-mode OM3 or better (50/125um) fiber-optic cable
  • HDCP 2.2, HDCP 1.4, and DPCP compliant
  • Supports DisplayPort Auxiliary/l²C channel
  • Supports DisplayPort Multi-stream technology
  • Compact enclosures are easy to install and can be hidden away.
  • Sturdy metal construction of the enclosures help provide further immunity against Electro-Magnetic Interference (EMI) and radiated noise (RFI).
  • Plug & Play – no configuration or set-up required for most applications
  • EQ switches on Sender & Receiver ensure compatibility with most sources & displays
  • Medical Safety (EN 60601-1) & EMC Compliant (EN 60601-1-2) when used with two EXT-PS52AU-M-1.3-6-AL power supplies (available separately)

Gefen EXT-DP-4K600-1SC Specifications:

  • Video:
    • 3840 x 2160 @ 60 Hz
    • WQUXGA (4K; 3840x2400 @ 60Hz)
    • 4K Ultra HD (3840 x 2160 @ 60Hz)
    • 4K Cinema - DCI (4096 x 2160 60Hz)
  • Connectors & Indicators:
    • Input (Sender): 1 x DisplayPort, 20-pin, female
    • Output (Receiver): 1 x DisplayPort, 20-pin, female
    • Link (Sender / Receiver): 1 x SC-type, female
    • Link (Sender / Receiver): 1 x LED, green
    • Power: 1 x 1.3 mm barrel jack
  • Operational:
    • Video Bandwidth: 21.6 Gbps (5.4 Gbps per lane, 4 lanes)
    • Optical Wavelength: 850 nm
    • Power Input: 5V DC
    • Power Consumption (Sender): 1.75 W
    • Power Consumption (Receiver): 2.0 W
    • Optical Power Budget: 6.5 dB
    • Operating Temperature: +32 to +122 ºF (0 to +50 ºC)
    • Operating Humidity: 10% to 85% RH, non-condensing
    • Storage Temperature: -4 to +158 °F (-20 to +70 °C)
    • Storage Humidity (RH): 10% to 85% RH, non-condensing
  • Physical:
    • Dimensions (W x H x D) (Sender / Receiver), not including connectors: 1-3/4” x 7/8” x 3-1/8” (45 mm x 22 mm x 79 mm)
    • Unit Weight (each): 4.8 oz. (0.135 kg)
    • Shipping Weight: 2.5 lbs (1.2 kg)
