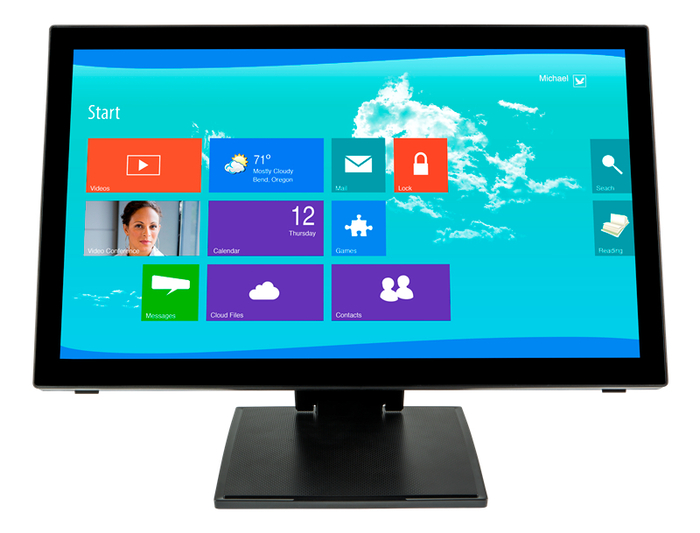

Planar PCT2265
21.5" 16:9 Multi-Touch LCD Monitor

OUR PART #:  PCT2265

The Planar® Helium™ Series PCT2265 is a 22" full HD monitor is optimized with multi-touch interactivity.
Learn More
Our Price: $339.00
List Price: $379.00
You save 11%!
Write the first review.
Planar PCT2265
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

The Planar® Helium™ Series PCT2265 is a 22" full HD monitor is optimized with multi-touch interactivity.  With its integrated USB 3.0 hub and dual-hinge desk stand, the Planar Helium Series PCT2265 provides the ultimate touch on the desktop experience.

Designed to take advantage of the touch-enabled features of Microsoft Windows® 10, the Planar Helium Series PCT2265 registers up to 10 simultaneous touches for the ultimate in productivity.  The built-in USB 3.0 hub allows users to quickly dock their ultra book, laptop, or tablet for a larger viewing experience.

The style-conscious design and edge-to-edge glass surface of the Planar Helium Series PCT2265 makes it an attractive addition to any business or home office while multi-touch technology make this desktop monitor as intuitive to use as a tablet or smart phone.

The Planar Helium Series PCT2265 includes an easy-to-use dual-hinge desk stand that quickly moves the user from passive viewing to full touch screen interaction.  From reading email to manipulating spreadsheets, to scrolling through social media updates, and blog postings. The versatile Planar Helium Series PCT2265 delivers with a style that compliments today's contemporary office designs.

The Planar Helium Series PCT2265 features multiple video inputs, including VGA, DVI-D (with HDCP), and HDMI, and integrated speakers for flexibility and the ability to connect multiple devices.

Planar PCT2265 Includes:

  • PCT2265 22" Wide Multi-Touch Monitor
  • Power Cord
  • VGA Cable
  • DVI-D cable
  • HDMI Cable
  • USB Cable (A to B)
  • Audio-in Cable
  • User’s Guide

Planar PCT2265 Features:

  • 22" touch screen monitor with 1920 x 1080 resolution
  • Windows 10 Ready - no driver loading required
  • Multi-touch with up to 10 touch points
  • Edge-to-edge glass surface delivers sleek design and smooth touch operation
  • Built-in USB Hub for easy connectivity to virtually an peripheral

Planar PCT2265 Specifications:

  • Product Name: PCT2265
  • Planar Part Number: 997-7251-00
  • Viewable Size: 21.5" diagonal (18.77" horizontal x 10.56" vertical)
  • Touchscreen Type: Projected Capacitive
  • Number of Touch Points: 10
  • Touchscreen Interface: USB
  • Contrast Ratio (typ): 2000:1
  • Viewing Angle (typ): 178° H,V
  • Response Time (typ): 18 ms
  • Brightness (w/touchscreen): 225 cd/m²
  • Brightness (w/o touchscreen): 250 cd/m²
  • Display Type: Edge-Lit LED LCD
  • Display Resolution: 1920 x 1080
  • Aspect Ratio: 16:9
  • Tilt Range: -5° to +90°
  • Palette: 16.7 million colors
  • Pixel Pitch: 0.2482
  • Refresh Rate: 50-76 Hz
  • Panel Depth: 2.49" (63.2 mm)'
  • Dimensions (WxHxD): 20.57" x 15.16" x 9.39" (522.4 mm x 385.0 mm x 238.5 mm)
  • Dimensions without Stand: 20.57" x 12.54" x 2.49" (522.4 mm x 318.4 mm x 63.2 mm)
  • Display Weight: 14.6 lb (6.64 kg)
  • Display Weight (w/o stand): 9.5 lb (4.31 kg)
  • Shipping weight: 18.5 lb (8.4 kg)
  • Video Inputs: Analog, HDMI, DVI-D (w/HDCP)
  • HDCP: Yes
  • Audio Output: 2 speakers, 2W/ch
  • Compatibility: Windows® 7, 8, 10 - HID Compliant - no drivers needed for basic touchscreen
    operation
  • External Connections: VGA D-Sub 15-pin, DVI 24-pin, HDMI 19-pin, USB - Type A to B, 3.5 mm audio
    in, AC Power In, USB 3.0 Hub (1 up, 4 down)
  • Power Supply: Internal
  • Power Requirements: 100 to 240 VAC, 50/60Hz
  • Power Consumption (max): 28W (.5W standby and off)
  • Operating Temperature: 0° to +40°C
  • VESA Compatible/Location: Built-in 100 mm VESA, back
  • Recommended Usage: Up to 16 hours per day
  • Service and Support: 3-Year Customer First™ Warranty featuring FREE 2-Day Advance Replacement (US only). Please see warranty document for more details and for replacement procedures outside the US
  • Options / Features: Dual-hinge stand, built-in USB Hub -USB 3.0 (1 up, 4 down), Kensington® Security Slot
  • Product Approvals: cTUVus, CE, FCC-B, RoHS II
  • CI-Black-PN: 997-7251-00
  • UPC: 8 10689 00001 3
