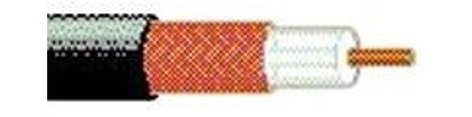

Belden 9258
RG-8X 16 AWG Stranded Wire, 1000 ft

OUR PART #:  9258-1000

Belden's 9258 is an RG-8X type coax cable with a 16 AWG stranded (19x29) 0.058" bare copper conductor, gas-injected FPE insulation, a bare copper braid shield (95% coverage)...
Learn More
Our Price: $430.22
List Price: $908.10
You save 53%!
Write the first review.

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

Belden 9258
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

Belden's 9258 is an RG-8X type coax cable with a 16 AWG stranded (19x29) 0.058" bare copper conductor, gas-injected FPE insulation, a bare copper braid shield (95% coverage), and a PVC jacket.

Belden 9258 Specifications:

  • Physical Characteristics:
    • Conductor:
      • # Coax: 1
      • AWG: 16
      • Stranding: 19x29
      • Conductor Material: BC - Bare Copper
      • Diameter: 0.058"
    • Total Number of Conductors: 1
    • Insulation Material:
      • Insulation Material: Gas-injected FPE - FoamPolyethylene
      • Diameter: 0.155"
    • Outer Shield Material:
      • Type: Braid
      • Outer Shield Material: BC - Bare Copper
      • Coverage: 95%
    • Outer Jacket Material: PVC -Polyvinyl Chloride
    • Overall Nominal Cable Diameter: 0.242"
  • Mechanical Characteristics:
    • Operating Temperature Range: -40°C To +80°C
    • UL Temperature Rating: 80°C (UL AWM Style 1354)
    • Bulk Cable Weight: 37 lbs/1000 ft
    • Max. Recommended Pulling Tension: 75 lbs
    • Min. Bend Radius/Minor Axis: 2.5
