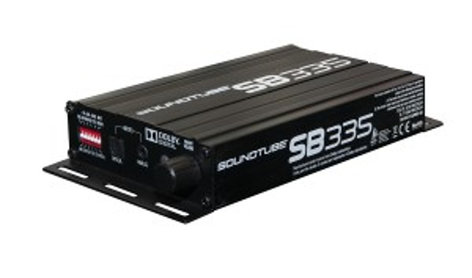

SoundTube SB335
Stereo Amplifier, 3-Channels, 35 W with Bluetooth

OUR PART #:  SB335

The Soundtube SB335 is a versatile, small, class D amplifier engineered for use in localized audio applications.
Learn More
Our Price: $276.36
List Price: $350.00
You save 21%!
Write the first review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

SoundTube SB335
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

The Soundtube SB335 is a versatile, small, class D amplifier engineered for use in localized audio applications. Designed for use with SoundTube speakers, other high-fidelity speakers and passive soundbars, the SB335 provides 50 watts per channel into 8 ohms (2 channel operation) or 35 watts per channel into 8 ohms (3 channel operation). Digital and analog inputs are provided, enabling direct connection from most TVs or monitors. Bluetooth® streaming functionality is also featured as a signal option. In addition to the speaker outputs, the SB335 includes a line level subwoofer output. Dolby Digital® decoding is also provided. The SB335 may be controlled via RS232 and will learn IR codes for volume control.

Soundtube SB335 Applications:

  • Digital signage
  • Educational video carts
  • Videoconferencing rollabout carts
  • Passive high-quality soundbars

Soundtube SB335 Specifications:

  • System type: SB335- Multipurpose 2/3 channel, 50watt/ch @ 8 ohms, class D amplifier.
  • Amplifier Power:
    • 2 Channel- 50 watts RMS/CH >1% THD @ 8 ohms, 55 watts RMS @4 ohms
    • 3 Channel- 35 watts RMS/CH >1% THD @ 8 ohms, 40 watts RMS @ 4 ohms
  • Overall Response: 10 Hz - 20 kHz +0/-.5 dB @ 1 wattRMS 8 ohms >.1% THD
  • Crossover Frequency: High Pass/Low Pass 120 Hz @ 12dB/octave
  • Gain: 34 dB (8 ohms)
  • Frequency EQ: +3 dB Switchable at 120 Hz, 2kHz, 8 kHz
  • Inputs: 10K Unbalanced line input stereo analog,Optical digital 2/3 channel, RS232 control, Blue Tooth, External IR
  • Maximum Input Sensitivity: 400 mV for full output
  • THD+ Noise: >.1% below rated output powers
  • S/N: Better than 84 dB unweighted
  • Input Impedance: 10K unbalanced
