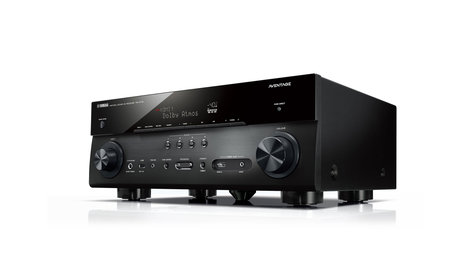

Yamaha RX-A770
AVENTAGE 7.2-Channel Network A/V Receiver

OUR PART #:  RX-A770BL

Enjoy your TV, movies, and music to the max with Yamaha's RX-A770, a 7.2-channel AVENTAGE network AV receiver.
Learn More
Our Price: $649.95
List Price: $749.95
You save 13%!
Write the first review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

Yamaha RX-A770
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

Enjoy your TV, movies, and music to the max with Yamaha's RX-A770, a 7.2-channel AVENTAGE network AV receiver. It's delivers high-quality sound with onboard Dolby Atmos® and DTS:X™, and as it's equipped with the latest in HDMI® technologies, you can experience movies in stunning 4K Ultra HD and high dynamic range (HDR). Additionally, its Hybrid Log- and Dolby Vision™ Compatibility enhances your viewing with incredible contrast, smooth tone, as well as rich, bright colors. Using the free MusicCast app makes it easy for you to access your music library along with streaming music services. You can add audio in up to 9 additional rooms with MusicCast wireless speakers or other MusicCast devices (all sold separately). You'll be able to wirelessly connect via Wi-Fi®, Bluetooth®, and AirPlay®, plus, with phono input for vinyl playback, Zone 2 Extra Bass, and Zone 2 Volume Equalizer you'll be able to enjoy even more added system versatility.

Yamaha RX-A770 Features:

  • The AVENTAGE advantage: designed to deliver the highest levels of audio performance through engineering
  • Aluminum front panel and Anti-Resonance Technology (A.R.T.) Wedge
  • 7.2-channel Dolby Atmos® and DTS:X™ (5.1.2-ch)
  • 9 speaker terminals with Intelligent Amp Assign for Zone 2
  • Add audio in up to 9 additional rooms with MusicCast
  • 6-in, 1-out HDMI
  • 7-channel powerful surround sound
  • 4K Ultra HD pass-through with HDCP 2.2 support, HDR Video including Hybrid Log-Gamma and Dolby Vision™ Compatibility and BT.2020
  • Fully loaded with Wi-Fi, Bluetooth, AirPlay, Spotify Connect, TIDAL, and Deezer music streaming service
  • Stream Pandora®, Spotify, Napster, SiriusXM Internet Radio and thousands of free internet radio stations
  • DSD 2.8 MHz / 5.6 MHz, FLAC / WAV / AIFF 192 kHz / 24-bit, Apple® Lossless 96 kHz / 24-bit playback
  • Phono input to connect to your favorite turntable
  • Room acoustics optimization using YPAO™- Reflected Sound Control
  • Zone 2 Extra Bass and Volume Equalizer

Yamaha RX-A770 Specifications:

Amplifier Section

  • Channel: 7.2
  • Rated Output Power (1 kHz, 2ch driven): 110 W (8 ohms, 0.9% THD)
  • Rated Output Power (20 Hz - 20 kHz, 2ch driven): 95 W (8 ohms, 0.06% THD)
  • Maximum Effective Output Power (1 kHz, 1ch driven) (JEITA): 160 W (8 ohms, 10% THD)
  • Dynamic Power per Channel (8/6/4/2 ohms): 130 / 170 / 195 / 240 W

Surround Sound Processing

  • CINEMA DSP: Yes (3D)
  • DSP Programs: 17
  • Dialog Level Adjustment: Yes
  • Virtual Presence Speaker: Yes
  • Virtual Surround Back Speaker: Yes
  • Dialogue Lift: Yes (no presence speakers required)
  • SILENT CINEMA / Virtual CINEMA DSP: Yes (Virtual CINEMA FRONT)
  • Dolby Atmos: Yes
  • Dolby TrueHD: Yes
  • Dolby Digital Plus: Yes
  • Dolby Surround: Yes
  • DTS:X: Yes
  • DTS-HD Master Audio: Yes

Audio Features

  • Pure Direct: Yes (with video on mode)
  • Compressed Music Enhancer: Yes (incl. enhancer for Bluetooth®)
  • YPAO sound optimization: Yes (R.S.C)
  • YPAO Volume: Yes
  • Adaptive DRC (Dynamic Range Control): Yes
  • Initial Volume & Maximum Volume Setting: Yes
  • A.R.T. Wedge: Yes
  • Bi-amp capability: Yes
  • Audio Delay: Yes (0-500 ms)
  • 192kHz/24-bit DACs for all channels: Yes (Burr-Brown)

Video Features

  • 4K Ultra HD Pass-through and upscaling: Yes (4K / 60p, 4:4:4)
  • HDMI 3D passthrough: Yes
  • HDMI Audio Return Channel: Yes
  • HDMI upscaling: Yes (Analog to HDM® / HDMI to HDMI)
  • Deep Color/x.v.Color/24Hz Refresh Rate /Auto Lip-Sync: Yes

Connectivity

  • HDMI Input/Output: 6 / 1 (HDCP2.2, HDR10 / Dolby Vision / HLG and BT.2020 compatible)
  • HDMI CEC: Yes (SCENE, Device Control)
  • USB Input: USB Memory, Portable Audio Player
  • Network Port: Yes
  • Wi-Fi: Yes (with Wireless Direct)
  • AirPlay: Yes
  • Bluetooth: Yes (SBC / AAC)
  • Front AV Input: HDMI / USB / Mini Jack
  • Digital Audio Input/Output: Optical: 2 / 0
  • Digital Audio Input/Output: Coaxial: 2 / 0
  • Analog Audio Input/Output: 5 (front 1) / 0
  • Phono Input: Yes
  • Component Video Input/Output: 1 / 0
  • Composite Video Input/Output: 1 / 0
  • Preout: Subwoofer (2 x mono)
  • Headphone Output: 1

Tuner Section

  • FM/AM Tuner: Yes

User Interface

  • On-screen display: Graphical User Inter face
  • SCENE: SCENE (4 sets)
  • App Control: Yes (iPhone / iPad / Android phone / tablet)
  • Web Browser Control: Yes
  • Remote Control Unit: Yes
  • Zone Control: Zone 2 Audio Output  Line output
  • Powered Zone: Zone 2
  • +12V Trigger Output: 1
  • Remote (IR) Input/Output: 1 / 1
  • Party Mode: Yes

General

  • Color: Black
  • Standby Power Consumption (IR only): =0.1W
  • Auto Power Standby: Yes
  • ECO mode: Yes
  • Dimensions (W x H x D):
    • unit only: 17-1/8" x 6-3/4" x 15"
    • unit with antenna: 17-1/8" x 9-1/4" x 15"
  • Weight: 23.1 lbs.
