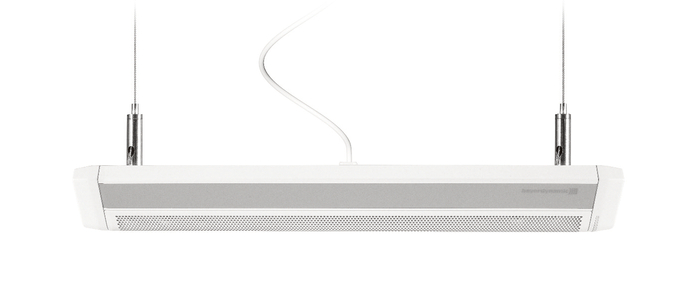

Beyerdynamic MPR 210 W CEILING Ceiling Array Microphone, White

The MPR 210 Ceiling from beyerdynamic is a modern line array ceiling installation microphone, designed for horizontal orientation, that is great for discussions, tele/video conferencing, and announcements. It incorporates Revoluto technology that includes integrated microphone capsules, providing a so-called 'corridor' characteristic, ensuring a wide pickup range with good voice quality. The speaker is able to move freely within this range, i.e.: he/she can stand up or sit down, move his/her head and move towards or away from the mic. The included ceiling holder can be mounted to flat ceilings or sloped ceilings that have a maximum angle of 70°.

Includes

• Revoluto desktop microphone, White
• 3m Connecting cable with 3-pin XLR connector
• Wire rope holder kit, with:
  • (2) Ceiling mounts
  • (2) Holders
  • (2) 3m Wire ropes

Features

• Revoluto Technology
• Corridor characteristic
• State-of-the-art metal casing with white finish
• Fixed connecting cable 3-pin XLR connector
• Linear frequency response with high bandwidth
• Supplied with wire rope holder kit for installations on ceilings

Specifications

• Transducer type: Condenser (back electret)
• Frequency response: 130 - 17,000 Hz
• Microphone: Microphone Array
• Polar pattern: Corridor
• Optimal distance when speaking: 60 - 80 cm
• Open circuit voltage at 1 kHz: approx. 200 mV/Pa
• Output level depending on the selected position
  • Hi: 200 mV/Pa
  • Mid: 60 mV/Pa (-10 dB)
  • Lo: 20 mV/Pa (-20 dB)
• Nominal impedance: 200 Ω
• Load impedance: > 1 kΩ
• Max. SPL at f = 1 kHz, k < 1%: 112 dB
• Signal-to-noise ratio rel. to 1 Pa. . . . . . . 60 dB
• Voltage supply, phantom powering:
  • 48 V ±4 V to 6.8 kΩ supply impedance
  • 24 V ±4 V to 1.2 kΩ supply impedance
• Power consumption: 8 mA
• T.H.D.: < 0.1%
• Connection: 3-pin XLR, male
• Temperature range: -10 °C to +40 °C
• Dimensions (L x H x D): 300 x 40 x 45.5 mm
• Weight (without cable): 230 g
