Product Overview
Roland's KC series of versatile amps are built for high-quality sound, onboard mixing features, and improved durability. Building upon the success of the previous generation, the newest KC models offer additional enhancements and modern features.

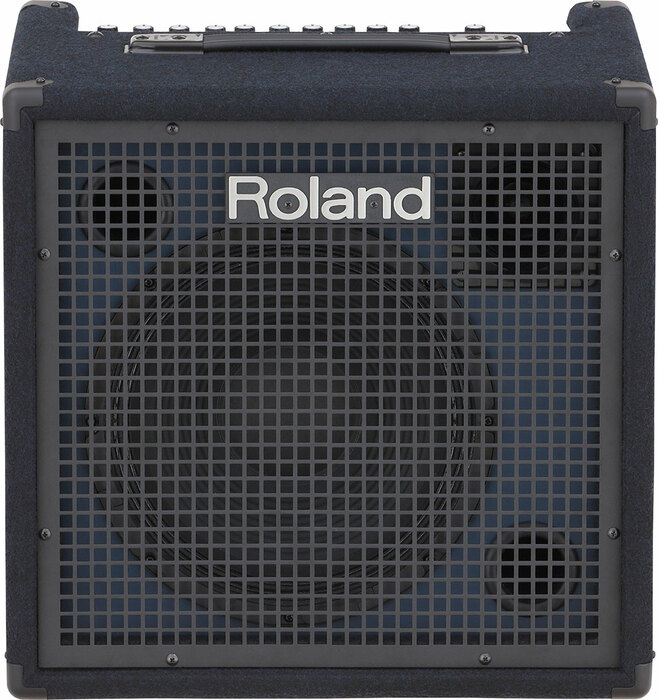

The 150 watt KC-400 is equipped with a two-way speaker and upgraded 12" custom woofer for superior sound quality. A redesigned power section provides higher output and improved stability, enhanced bass reproduction, and lighter weight. The built-in mixer allows connection to a wide range of stereo keyboards and instruments or XLR vocal mic. Chain a second KC-400 via the Stereo Link function for additional inputs and stereo amplification.
Roland KC-400 Features:
- Compact and versatile keyboard amplifier with 150 watts of power
- Redesigned power amp and universal power supply provide increased stability, improved bass reproduction, and reduced weight
- Custom two-way speaker system with newly developed 12-inch woofer and horn tweeter
- Onboard mixer with four stereo input channels, stereo auxiliary input, and master EQ with Shape switch
- Output Select function on Channel 4 for monitoring click and guide tracks
- XLR mic input, 1/4-inch line outputs, headphones output, and sub output
- Chain another KC-400 with the Stereo Link function for more inputs and true stereo sound on stage
- Metal jacks for increased durability
Roland KC-400 Specifications:
- Rated Power Output: 150 W
- Nominal Input Level (1 kHz)
- CH1 (BALANCED, L/MONO, R): -50-- -20 dBu
- CH2 (L/MONO, R): -20 dBu
- CH3 (L/MONO, R): -20 dBu
- CH4/MONITOR IN (L/MONO, R): -20dBu
- AUX IN (L, R, STEREO): -10 dBu
- STEREO LINK (IN): 0 dBu
- Nominal Output Level (1 kHz)
- LINE OUT (L/MONO, R): +4 dBu
- STEREO LINK (OUT): 0 dBu
- SUB OUT:+4 dBu
- Speakers
- 30 cm (12 inches) Woofer x 1
- Horn Tweeter x 1
- Controls
- SHAPE button
- POWER switch
- [CH1] MIC/LINE knob
- [CH2] LINE knob
- [CH3] LINE knob
- [CH4] OUTPUT SEL. knob
- [PHONES] VOLUME knob
- [EQUALIZER] LOW knob, MIDDLE knob, HIGH knob
- MASTER knob
- Indicator: Power
- Connectors
- CH1 (BALANCED) jack: XLR type
- CH1 (L/MONO, R) jacks: 1/4-inch phone type
- CH2 (L/MONO, R) jacks: 1/4-inch phone type
- CH3 (L/MONO, R) jacks: 1/4-inch phone type
- CH4/MONITOR IN (L/MONO, R) jacks: 1/4-inch phone type
- LINE OUT (L/MONO, R) jacks: 1/4-inch phone type
- AUX IN (L, R) jacks: RCA phono type
- AUX IN (STEREO) jacks: Stereo miniature phone type
- SUB OUT jack: 1/4-inch phone type
- STEREO LINK (IN, OUT) jacks: 1/4-inch phone type
- PHONES jack: Stereo 1/4-inch TRS phone type (mono signal output)
- Power Consumption: 40 W
- Accessory: Owner's Manual
- Size: 19-5/16" W x 15-3/16" D x 18-9/16" H (490 x 285 x 470 mm)
- Weight: 48 lbs 9 oz (22 kg)
