Product Overview
Roland's KC series of versatile amps are built for high-quality sound, onboard mixing features, and improved durability. Building upon the success of the previous generation, the newest KC models offer additional enhancements and modern features.

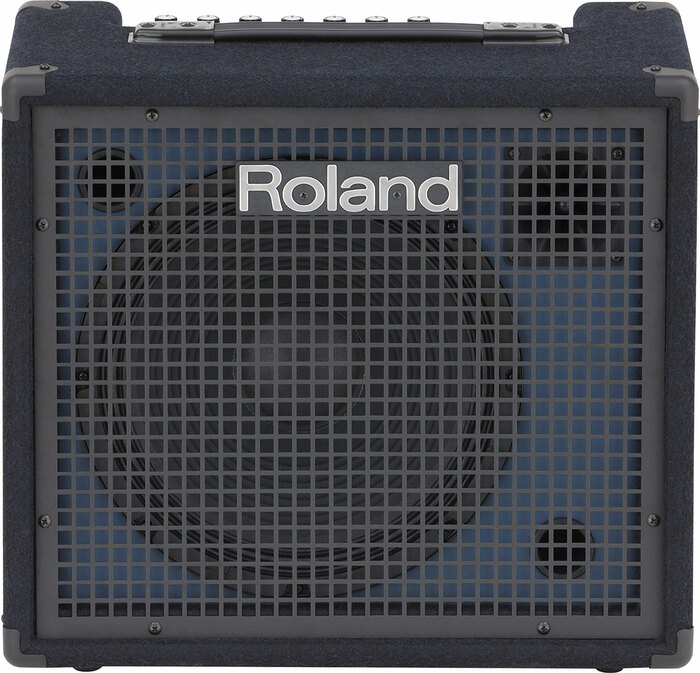

The 100 watt KC-200 is equipped with four line input channels, a dedicated aux input, and XLR vocal mic support. A redesigned power section provides higher output and improved stability while the upgraded 12" woofer delivers superior sound quality. With the Sub Out jack the KC-80 can be connected with a powered subwoofer for even greater low-end.
Roland KC-200 Features:
- Compact and affordable keyboard amplifier with 100 watts of power
- Redesigned power amp and power supply sections provide increased stability and improved bass reproduction
- Custom two-way speaker system with newly developed 12-inch woofer and tweeter
- Onboard mixing with four 1/4-inch input channels, dedicated auxiliary input with 1/8-inch and RCA jacks, and master EQ
- XLR mic input, 1/4-inch line output, headphones output, and sub output
- Metal jacks for increased durability
Roland KC-200 Specifications:
- Rated Power Output: 100 W
- Nominal Input Level (1 kHz)
- CH1 (XLR type, MIC/LINE): -50-- -20 dBu
- CH2 (LINE): -20 dBu
- CH3 (LINE): -20 dBu
- CH4 (MONITOR): -20dBu
- AUX IN (L, R, STEREO): -10 dBu
- Nominal Output Level (1 kHz)
- LINE OUT:+4 dBu
- SUB OUT:+4 dBu
- Speakers
- 30 cm (12 inches) Woofer x 1
- Tweeter x 1
- Controls
- POWER switch
- [CH1] MIC/LINE knob
- [CH2] LINE knob
- [CH3] LINE knob
- [CH4] MONITOR knob
- [EQUALIZER] LOW knob, HIGH knob
- MASTER knob
- Indicator: Power
- Connectors
- CH1 jack: XLR type
- CH1 (MIC/LINE) jack: 1/4-inch phone type
- CH2 (LINE) jack: 1/4-inch phone type
- CH3 (LINE) jack: 1/4-inch phone type
- CH4 (MONITOR) jack: 1/4-inch phone type
- AUX IN (L, R) jacks: RCA phono type
- AUX IN (STEREO) jack: Stereo miniature phone type
- LINE OUT jack: 1/4-inch phone type
- SUB OUT jack: 1/4-inch phone type
- PHONES jack: 1/4-inch TRS phone type (mono signal output)
- Power Consumption: 70 W
- Accessory: Owner's Manual
- Option (sold separately): Speaker stand: ST-A95
- Size: 18-15/16" W x 11-5/8" D x 17-1/8" H (480 x 295 x 435 mm)
- Weight: 33 lbs 2 oz (15 kg)
