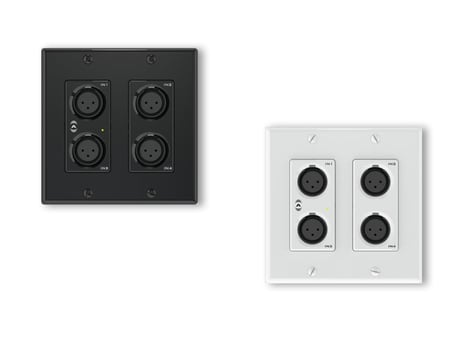

Attero Tech UNAX4I
AES67 Networked Audio Wall Plate- 4x2 Mic/Line I/O

OUR PART #:  UNAX4I

The Attero Tech unDX4I Audio Interface is a cost effective multi-IO wall box.
Learn More
Selected Model Price: $639.00
List Price: $799.00
Save up to 20%!
Write the first review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

Attero Tech UNAX4I
Select a Model: (shipping times are approximate)
Qty:

Similar Products

The Attero Tech unDX4I Audio Interface is a cost effective multi-IO wall box. The unDX4I features four balanced mic/line XLR inputs and two balanced line outputs on a Phoenix connector. All inputs and outputs can be used simultaneously and all audio channels are available separately. The unDX4I is designed to fit into most dual gang US junction boxes and is PoE enabled, so all connectivity (power and data) is provided by a single CAT-5 cable.  The unDX4I’s size and IO density make it easy to put AES67 connectivity wherever it’s needed near the audio source or sink thereby eliminating costly and interference prone analog wiring.

Attero Tech unDX4I Applications:

  • Easily accessible microphone audio interface for presentation audio systems in meeting spaces, classrooms, theaters and hospitality venues.
  • House of worship AES67 connectivity for musicians and worship leaders
  • Conveniently located audio network I/O for portable AV systems inconvention spaces and hospitality venues

Attero Tech unDX4I Features:

  • Small form factor, can be unobtrusively located nearanalog sources or sinks
  • 4 balanced XLR mic/line inputs on the front panel,and 2 side mounted balanced line outputs on Phoenix-style depluggableconnectors
  • 802.3af compliant PoE powered to work with anycompliant PoE network switch
  • Four input gains accommodate common line levels,phantom power and dynamic mics.  Input gains are adjustable via softwareon a per input basis
  • +48V Phantom power per channel -powers virtually alltypes of phantom powered microphones typically used in installed AV systems
  • ID LED allows easy identification of which unAX4IAttero Tech’s Unify software is communicating with
  • The balanced line outputs can be wired to any passiveXLR plate such that 4 XLR inputs and 2 XLR outputs are available in a 3-gangUS wall space.
  • AES67 for compatibility with all QSC Core DSPs

Attero Tech unDX4I Specifications:

  • Mic/Line Input Type: Balanced and RF filtered XLR
  • Phantom Power: +48V, software selectable
  • Mic/Line Gain: -18dB (pad active), -3dB, +25dB, +40dB,software selectable
  • Input Impedance: >1.8K ohms at any gain setting
  • Equivalent Input Noise: -115dBu (+40dB gain)
  • Maximum Input Levels: +20dBu @ -18dB gain (padactive), +6dBu @ -3dB gain, -23dBu @ +25dB gain, -38dBu @ +40dB gain
  • Side Line Output Type:Balanced and RF filtered 3-pindepluggable
  • Output Gain: 0dB to –60dB plus mute, softwareselectable
  • Output Noise: < -85dBu @ 0dB gain
  • Maximum Output Level: +20dBu (@ 0dB output gain)
  • System THD: <.05% at any gain, input signal 3dBbelow maximum
  • PoE Class: Class 0 802.3af PoE PD compliant
  • Certifications: FCC 47CFR Parts 15B and 18 (Class A),EN 55011, ICES-003, CE (EN55022 Class A and EN55024 Class A)
  • Dimensions: 3.54” W x 4.2” H x 2.0” D
  • Operating Temperature: 0°C - 40°C
